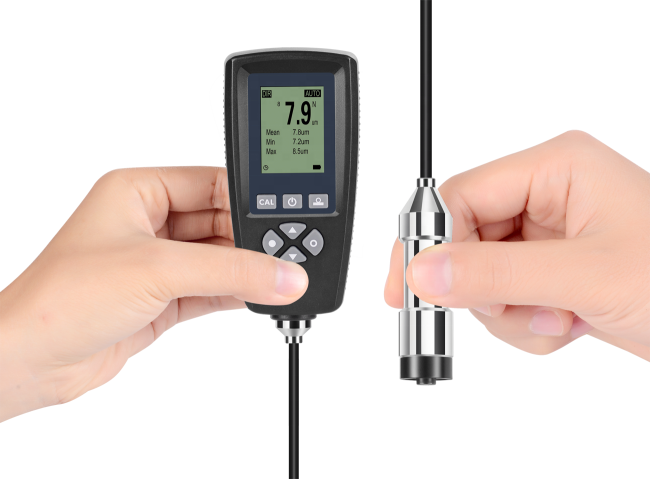

Electroplating Dedicated EC-770 Coating Thickness Gauge Dual Probe Metal Coating Thickness Gauge
|
Model |
EC-770 |
EC-770S |
EC-770XE |
|---|---|---|---|
|
Probe position |
Internal |
External |
|
|
Measuring principle |
Fe: magnetic induction; NFe: eddy current effect |
||
|
Measuring range |
0~2000μm |
||
|
Accuracy |
±(2.5%+1μm) |
±(2%+1μm) |
|
|
Resolution |
0.1μm (0~99.9μm ); 1μm (≥100μm) |
||
|
Unit |
μm, mm, mils |
||
|
Calibration |
Zero calibration, point calibration |
||
|
Statistics |
Number of data, maximum, minimum, mean, standard variance |
||
|
USB data transmittion |
Support |
||
|
Storage capacity |
320 measurements |
2000 measurements |
|
|
Probe triggering force |
0.3~0.8N |
||
|
Minimum radius of curvature of substrate |
Convex 5mm Concave 25mm |
||
|
Minimum measurement area |
Diameter 15mm |
Diameter 10mm |
|
|
Minimum substrate thickness |
Fe: 0.30mm; NFe: 0.05mm |
Fe: 0.20mm; NFe: 0.03mm |
|
|
Maximum measuring speed |
2 readings/sec |
||
|
Display |
Dot Display |
||
|
Operating environment |
Temperature: -10~+50℃; Humidity: 20~90% RH (non-condensing) |
||
|
Storage environment |
Temperature: -20~+60℃; Humidity: 20~90% RH (non-condensing) |
||
|
Power supply |
2 AAA 1.5V alkaline batteries 2 AAA 1.2V rechargeable batteries |
||
|
Protection class |
IP40 |
||
|
Dimension |
114*53*25mm |
Host:114*53*25 mm Line:Φ3.5*1000mm Probe:Φ17*67mm |
|
|
Material |
ABS |
Host: ABS Probe: stainless steel |
|
|
Weight |
About 80g(without batteries) |
About 140g(without batteries) |
|
|
Standard |
CE, ROHS, ISO 2178, 2360, GB/T 4956-2003, 4957-2003, JJG-818-2005 |
||
