R52S Integrated Steel Scanner Touch Screen Integrated Steel Bar Detector Concrete Rebar Scanner Locator Rebar Pipe Reinforce
TK-R52S Color display Steel Bar Position Measuring Instrument
TK-R52S integrated steel bar position measuring instrument is used to detect the diameter, location and distribution of reinforcement inside reinforced concrete or newly-built reinforced concrete and the thickness of concrete cover of reinforcement.It can "perspective" the position of reinforcement in real time and test the dense reinforcement.
Features
- You can "see through" the position of reinforcing bars, and the positioning of reinforcing bars is accurate. The instrument adopts multi-coil structure, which can "see through" the position of steel bars and accurately position the steel bars.
- It has stirrup correction function. The instrument has the function of stirrup correction, and in the structure with stirrups, it is more accurate to test the thickness of steel protective layer.
- Integrated design. The integrated design of the instrument makes the use of the instrument very convenient. Small size, basically the same size as iphone6 plus. The length and width are 165*75*32mm respectively, which is very convenient to carry and test.
- Waterproof and fall-proof design. The instrument is designed with plastic coating, and its waterproof level can reach IP54, and it can also be broken.
- Large-capacity SD card storage and U disk data transmission mode. With a large capacity of 4G, users can save data as they wish without worrying about the space capacity. When the instrument enters the transmission mode, it can be used as a mobile USB flash drive on the computer to copy data directly.
- TK-R52S instrument adopts high definition color screen. 320X240 resolution color screen, reaction speed block, delicate image.
- Built-in large capacity lithium battery. The instrument adopts large-capacity lithium battery, and the service time of the instrument can be up to 20 hours under the condition of high-definition and large-size LCD screen.
- Powerful professional windows data analysis and processing software. It is convenient and quick to show the test results graphically, which can directly generate the Word test report or import the data into Excel.
Technical Parameters
Adaptable range of steel bar diameter |
F6mm~F50mm |
||
Thickness range of protective layer |
The first range: 2mm~100mm; Second measuring range: 5mm~200mm |
||
|
Thickness of protective layer maximum permissible error |
The first range |
Second range |
|
±1mm |
2～60 |
5～80 |
|
±2mm |
60～90 |
80～100 |
|
±4mm |
91~100 |
101~120 |
|
±5mm |
120~200 |
||
Measuring range of diameter |
F6mm~F32mm |
||
Measuring diameter maximum permissible error |
1st gear |
||

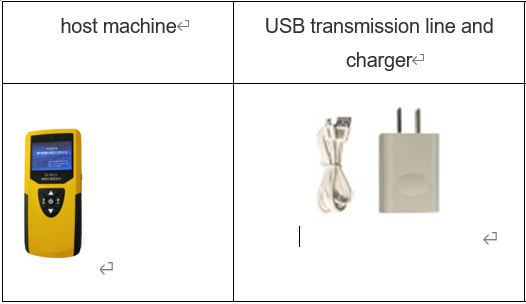

Standard configuration

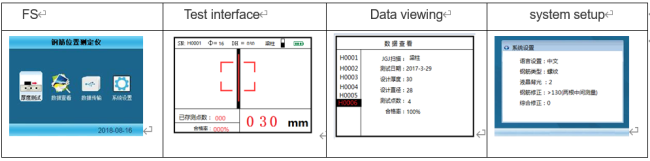

Major interface
