TK-R71 Steel Bar Location And Corrosion Tester Concrete Rebar Detector
Price:
Bulk discount
MOQ:
1 Piece
Delivery Time:
3-7 days
Brand:
TESTECH
Product Description
TK-R71 Steel-bar Location and Corrosion Tester
Product Description
TK-R71 Steel-bar Location and Corrosion Tester,incorporating functions such as test steel-bar diameter, distribution, concrete backing thickness, and corrosion in concrete.
Specifications
- Multifunction instrument. Its function include steel-bar diameter, distribution, concrete backing thickness, and corrosion test.
- Grid and section scan mode. Instrument can display steel-bar distribution and scan steel-bar without concrete size limited.
- Automatic measure environmental temperature. Instrument design to contain a measure environmental temperature module, it can measure, record, display environmental temperature quickly no thermometers required.
- Can save test date. This is convenient for laborer data management
- Real USB transmission. Data can be transmit to computer for future process and analysis.
- Powerful data process and analysis software in windows. Software can display analysis result by spectrum and isoline. Test data can be export to word or Excel easily.
Technical Parameters
| Applicable steel-bar diameter | Ф6mm～Ф50mm | |||||
| Tested range of concrete backing thickness | Low test range:6mm～90mm；High test range:7mm～180mm | |||||
| Permissible error | Low test range | High test range | ||||
| ±1 | 6～59 | 7～79 | ||||
| ±2 | 60～69 | 80～119 | ||||
| ±4 | 70～90 | 120～180 | ||||
| Tested range of steel-bar diameter | Ф6mm～Ф50mm | |||||
| Permissible error of steel-bar diameter test | ±1 grade | |||||
| Applicable environmental | temperature:-10℃～＋40℃ ；Dampness:<90%RH EMI: no Strong electromagnetic field |
|||||
| Power supply | batteries:6 dry cells,work more than 30 times | |||||
| Test range | ±2000mV | testing accuracy | ±1mV | |||
| Test point distance | 1～99cm setting | |||||
| Applicable environmental | temperature:-10℃～＋40℃ ；Dampness:<90%RH EMI: no Strong electromagnetic field |
|||||
| Power supply | batteries:6 dry cells,work more than 30 times | |||||

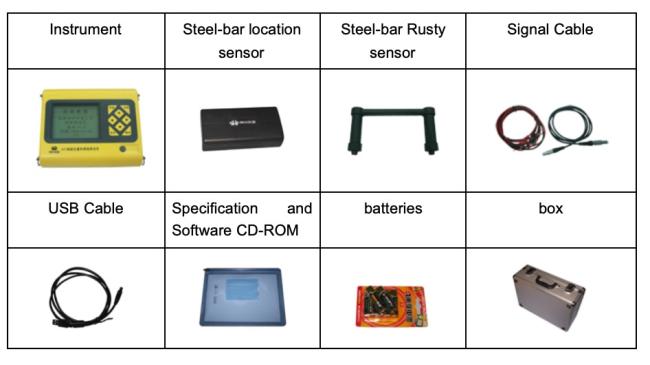

Standard configuration

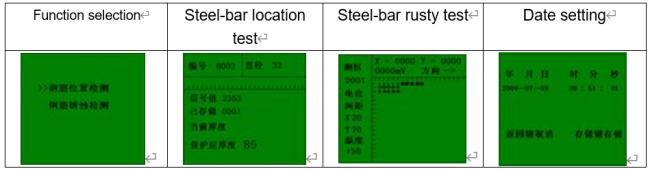

Major interface
Software
Powerful software in windows is convenient to data process and analysis:Real USB assure transmit data to computer quickly. It also can export data to word and excel for future process, save and print data.
