TK-Q61 Digital Concrete Strength Tester Concrete Testing Instrument Portable NDT Instrument
Price:
Bulk discount
MOQ:
1 Piece
Delivery Time:
3-7 days
Brand:
TESTECH
Product Description
TK-Q61 Digital Concrete Strength Tester | Rebound Hammer Method | Compressive Strength Measurement | Portable NDT Instrument
Product Description
TK-Q61 concrete strength tester is used to test compressive strength of concrete by two ways: rebound and ultrasonic-rebound method. Also, it can be used to test sound time and speed in concrete.
Features
- Multi-function for testing compressive strength of concrete. It is used to test the compressive strength of concrete by rebound method and ultrasonic-rebound method.
- Get the compressive strength value of concrete by ultrasonic-rebound method in one instrument. it need two instrument usually, one to test sound speed in concrete, the other to test rebound value.
- Can save test date. This is convenient for laborer data management.
- Real USB transmission. Data can be transmit to computer for future process and analysis.
- Powerful data process and analysis software in windows. Test data can be export to word or excel for future process and analysis.
Technical Parameters
| Permissible sound time error : | ±0.1μs |
| Sensor frequency : | 50KHz |
| Rebound kinetic energy : | 2.207J |
| Rebound springs Rigidity: | 785.0±40.0(N/m) |
| Rebound bar impact length : | 75.0±0.3 mm |
| Rebound value permission error: | ≤±1 |
| Average rebound value on Calibration anvil: | 80±2 |
| Temperature: | -4°C～+40°C |
| LCD screen: | 160×128(10×8cm) |
| Power: | 6 dry cells,work more than 10 times |
| Size and: | 205mmX173mmX86mm |
| Weight: | 850g |
Standard configuration
Major interface

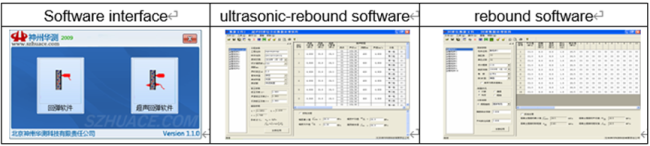

Software
Powerful software in windows is convenient to data process and analysis:Real USB assure transmit data to computer quickly. It also can export data to word and excel for future process, save and print data.
