TK-F51 Concrete Crack Depth Tester Digital Concrete Thickness Gauge Testing Instrument
Price:
Bulk discount
MOQ:
1 Piece
Delivery Time:
3-7 days
Brand:
TESTECH
Product Description
TK-F51 Digital Concrete Crack Depth Meter | Non-Destructive Ultrasonic Testing | Structural Health Monitoring for Civil Engineering & Construction
Product Description
TK-F51 Concrete Crevice Depth Tester is mainly used to test crevice depth and sound wave propagation velocity in concrete according to sound wave diffraction propagation principle. It is an intelligent Instrument with combined functions such as testing, saving and transiting data.
Features
- High Intelligence. Interpret sound wave propagation velocity and crevice depth value without human labor.
- Deep testable crevice depth. Testable crevice depth is up to 650 mm.
- Special scales. Improve test efficiency with portable, practical special scales.
- Being able to save date. It’s convenient for laborer data management.
- Powerful data processing and analysis software in Windows OS.
Technical Parameters
| Testable crevice depth scope: | ≤650 mm; |
| Permissible error: | ≤10％; |
| Data storage capacity : | more than 6000 group test data; |
| Instrument size: | 190mm×183mm×84mm; |
| Batteries: | 6 dry cells, work more than 10 times; |
| Resolution of LCD screen: | 160×128(10×8cm). |

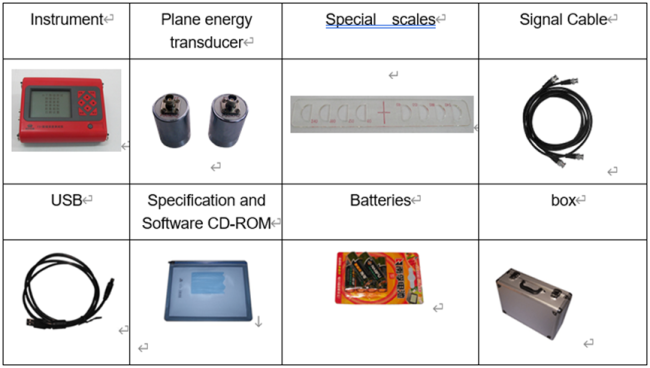

Standard configuration

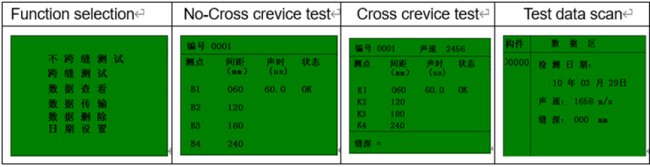

Major interface
Software
It’s convenient to process data and analyze with powerful software in windows system. It has Real USB transmission which can export data to word and excel, to save and print data easily.
