HBRVS-187.5DX Digital Universal Hardness Tester Brinell Rockwell Vickers Touch Screen

Price Negotiable

Price: Bulk discount

MOQ: 1 Piece

Delivery Time: 3-7 days

Brand: TESTECH

Product Description

HBRV-187.5DX Senior Touch Screen Digital Brinell Rockwell Vickers Universal Hardness Testers Series 5~187.5kgf

Features:

1. Equipped with three test methods: Brinell, Rockwell and Vickers, and more hardness scales to choose from.
2. There are 10 types of scales for Brinell and Vickers, and 16 types of Rockwell scales. Scales other than these 36 scales can be customized and changed by users.
3. Using electronic electric loading, high-precision sensors, and a unique closed-loop control system.

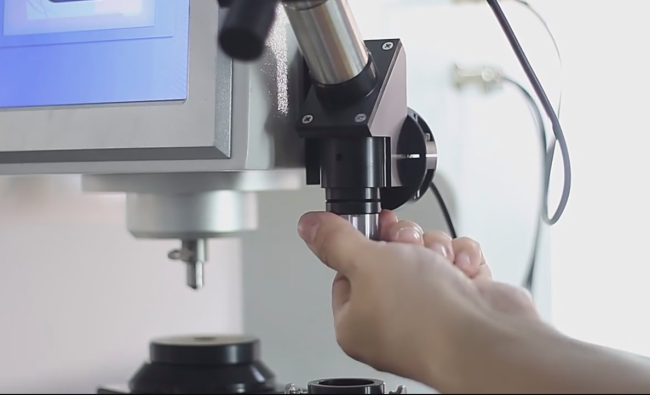

4. Eyepiece structure with digital encoder to measure D1 and D2 values, and the LCD directly displays the hardness value and D1 and D2 values.
5. The user interface can input the tester, sample name, measurement results and other information, and save it in the U disk in EXCEL format.
6. Set password to protect setting parameters, more samples and test information.
7. Select the hardness scale directly and the force value will automatically change in the test parameters.
8. The test force is automatically corrected, each force is automatically compensated, and the force accuracy is improved by an order of magnitude.

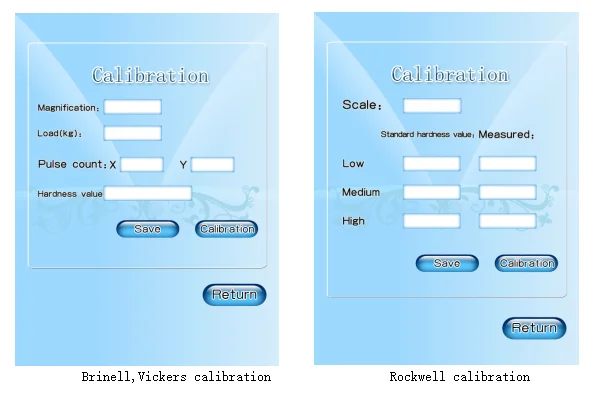

9. Calibration can be carried out in two ways: standard hardness block or length scale.
10. The test force of each level can be automatically corrected through the standard force gauge.
11. Can convert Brinell, Rockwell and Vickers hardness values.

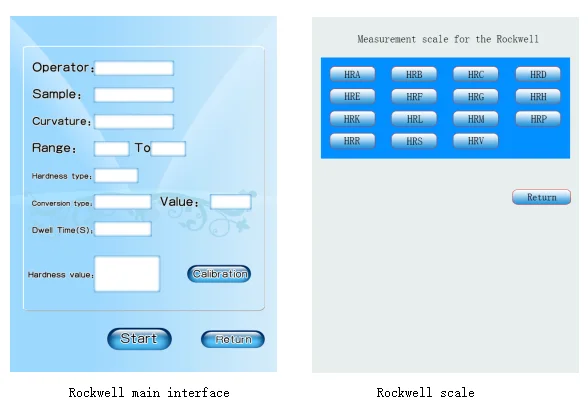

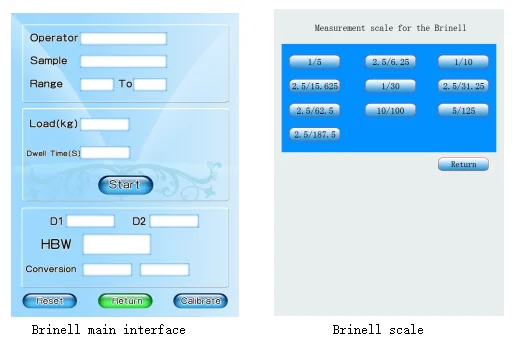

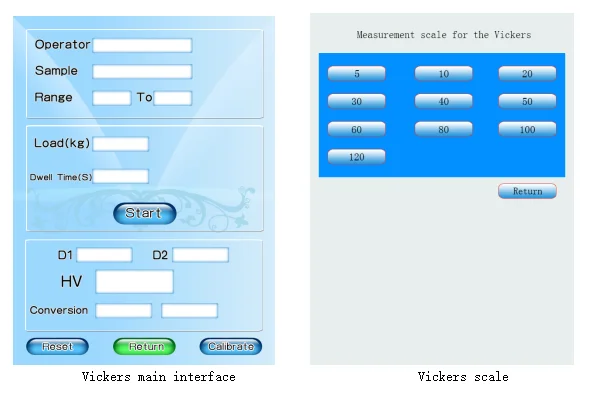

12. Touch screen interface, easy to operate.
13. Automatic hardness conversion according to national standard/ASTM.

Technical Data

Model	HBRVS-187.5HDX
Test force	5~187.5kgf
Brinell scale	HBW1/5,HBW2.5/62.5,HBW1/10,HBW2.5/15.625,HBW1/30,HBW2.5/31.25, HBW2.5/62.5,HBW10/100,HBW5/125,HBW2.5/187.5 (select 10 scales)
Hardness resolution	0.1HBW
Rockwell scale	HRA,HRB,HRC,HRD,HRF,HRG,HRH,HRK,HRL,HRM,HRP,HRR,HRS,HRV
Hardness resolution	0.1HR
Vickers scale	HV5,HV10,HV20,HV30,HV40,HV50,HV60,HV80,HV100,HV120 (select 10 scales)
Hardness resolution	0.1HV
Objective	2.5X,5X(10X,20X optional)
Magnification of microscope	Brinell:37.5X, Vickers:75X
Hardness measurement	Brinell:8~650HBW Rockwell:20~100HR Vickers:8~2900HV
Data output	LCD display,U disk
Max height of specimen	Rockwell:220mm, Brinell Vickers:170mm
Head - wall distance	200mm
Dimension	560260800mm
Weight	About 70Kg
Power	AC220V+5%,50-60Hz

Standard Packing List

Item	Quantity	Item	Quantity
Lighting (internal lighting, external lighting)	1	Test block(HRC high,HRC low HRB ,HBW2.5/187.5,HV30)	5

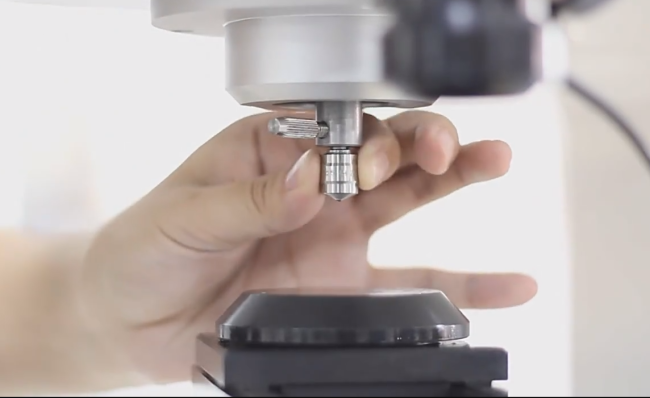

Rockwell,Vickers diamond indenter	Each 1	Ball indenter(φ1.5875,2.5,5mm)	3
Eyepiece(DHV-15X)	1	Objective(2.5X,5X)	2
Sliding test table	1	Large, medium, V-test sets	Each 1
U memory disk, touch pen	Each 1	Fuse 2A	2
Level	1	Regulating screw	4
Power cable	1	Dust bag	1
Certificate, warranty card	1	Manual	1
