Digital Barcol Hardness Tester Aluminum Hardness Tester For Aluminum Alloys Copper

Price Negotiable
Price: Bulk discount
MOQ: 1 Piece
Delivery Time: 3-7 days
Brand: TESTECH
Product Description
Digital Barcol Hardness Tester Aluminum Hardness Tester for Aluminum Alloys Copper Barcol Hardness Tester

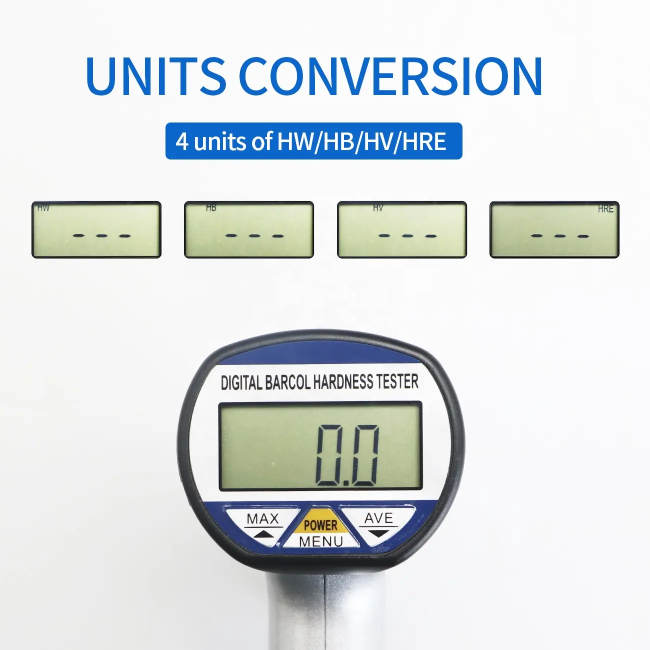

Equipped with large LCD screen, can quickly and easily read the test result; Wide valid testing range equivalent to Brinell hardness 25-150HBW, suitable for testing the hardness of all kinds of aluminum from very soft aluminum to very hard alloys; Equipped with bracket rotation positioning device; The machine automatically converts hardness HW, HV, HB, HR-E, HRF, HRB, HRH; With the maximum value hold function, the maximum hardness value during the measurement is recorded; With the average value calculation function, the average value of up to 29 groups of data can be calculated; Small size and light weight (550g), easy to carry; Good stability, easy calibration and high detection accuracy; One-handed operation, no experience is required, and it can be tested in any occasion as long as it is within reach; Wide test range. From very soft pure aluminum to very hard aluminum alloy can be tested, the effective test range is equivalent to Brinell hardness 25~135HB; High sensitivity. The Webster hardness tester has only 20 scales, while the Barcol hardness tester has a test range of 0-100, which has higher sensitivity; No support required, suitable for testing oversized and thick workpieces and assemblies; International qualified product, which meets the international standard of ASTM E648.

Testing Range 0-100HBa(25-150HBW)
Resolution 0.5HBa
Indenter 26°Pan Head Cone, with Head Face Dia.0.176mm
Error ≤±1-2HBa
Indication Error ±2HBa(Hardness Range 42-52HBa); ±1HBa(Hardness Range 84-88HBa)
Repeatability ±2.5HBa(Hardness Range 42-52HBa); ±1.5HBa(Hardness Range 84-88HBa)
Dimension 38x23x14cm(LxWxH)
Packing Wegith 2KG

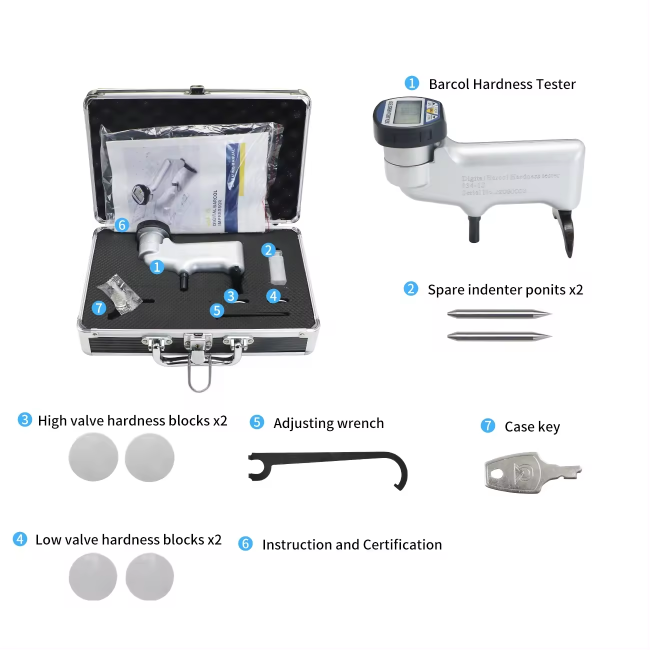

No. Items QTY
1 Main Unit 934-1S
2 Testing Block 2 PCS.
3 BACKUP Spare Indenter 1PCS.
4 Calibration Wrench 1PCS.
5 Legs 1PCS.
6 Instrument Case 1PCS.
7 Manual book, Calibration Report 1PCS. EACH
