Welding Penetration Measurement Inspection Microscope SRA-6555RH

Welding penetration measurement inspection microscope SRA-6555RH adopts the integrated technology of optical microscope and camera analysis and measurement, which can measure the welding penetration produced by various welding joints (butt joints, fillet joints, lap joints, T-joints, etc.), It can also be used for macroscopic metallographic inspection of welds. It is the first welding penetration measurement inspection microscope that provides two methods to inspect welding quality.

Feature

Adopt advanced optical microscope and modern camera, analysis and measurement integration technology
It can accurately detect the fusion depth, superimpose the scale on the fusion depth image, and save the output
It can be used for macroscopic metallographic inspection of welds, such as: whether there are pores, slag inclusions, cracks, incomplete penetration, incomplete fusion, undercuts and other defects in the weld or heat-affected zone

System technical data

No	items	Specification
01	Trinocular Stereo Microscope	6.5-55X
02	HD digital camera	18 million pixels, USB3.0 output,
03	image processing software	Yes
03	Calibration ruler	C5
04	Camera interface CTV	1X
05	desktop (optional)	Current mainstream system

Microscope Technical Parameters

No.	Name	Technical Parameters

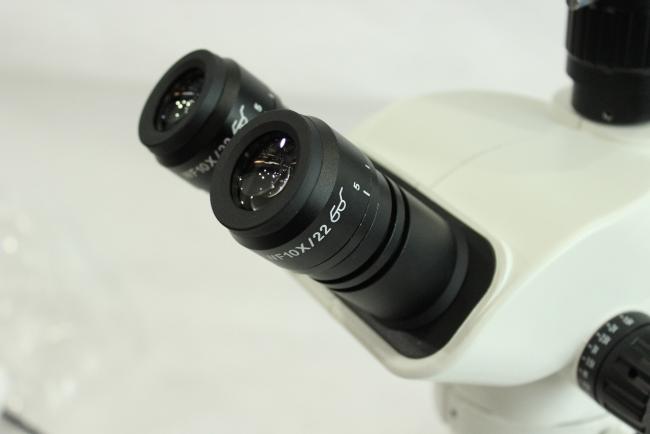

01	Eyepiece	High eye point wide field eyepiece 10X (Φ22mm)

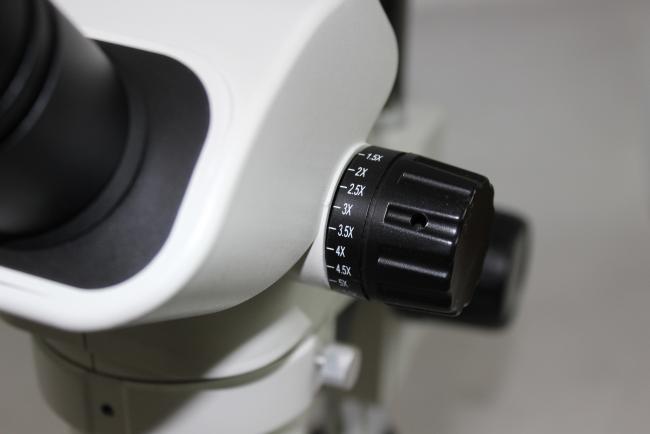

02	objective lens	0.65-5.5X objective zoom ratio 1:8.5
03	total magnification	6.5-55X (optional 0.5X, 2X large objective lens, 20X eyepiece up to 3.25X-220X)
04	observation head	Trinocular, diopter adjustment ±5 diopters, 45° tilt, 360° rotation
05	Interpupillary distance	54-75mm
06	Field of view	4.0-31.4mm
07	working distance	Maximum working distance 105mm
08	Adjustment range	Lifting adjustment range 45mm pole height 240mm
09	Stage	Equipped with pressing sheet and Φ95mm glass platen and black and white work board
10	light source	Up and down LED lighting, independent switch, adjustable brightness, low heat generation, long life
11	Instrument weight	6.5kg
12	Dimension	Instrument size 24X34X42 (cm) Package size 52X30X42 (cm)

Standard Packing List

No.	Name	Specification	Quantity
01	Trinocular stereo microscope	6.5-55X, up and down light source	1 piece
02	image processing software	Contains all basic measurement functions, image stitching, depth of field extension, output report, etc.	1 set
03	Professional HD camera	18 million pixels; USB3.0 output	1 set
04	Camera interface CTV	1X	1 piece
05	Objective micrometer	C5 ruler	1 piece
06	dust cover	yes	1 piece
07	others	Manual instruction, Packing list, Quality Certificate

Optional accessories

Microscope Optional accessories

NO.	Name	Technical Parameters

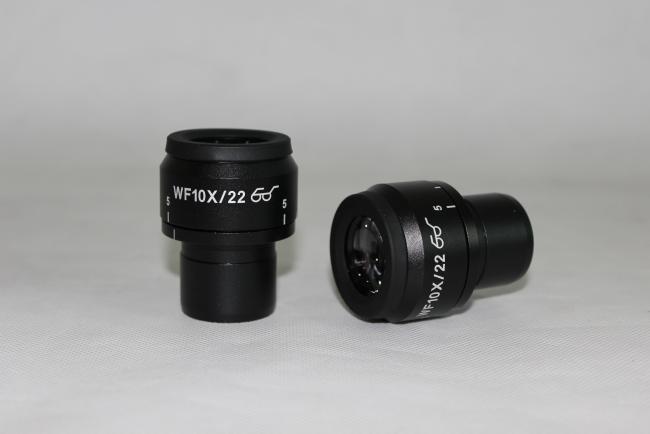

01	eyepiece	Large field of view WF15X (Φ15mm), 20X (Φ12mm)
02	large objective lens	0.5X,2X
03	Micrometer eyepiece	10X(Φ22mm)

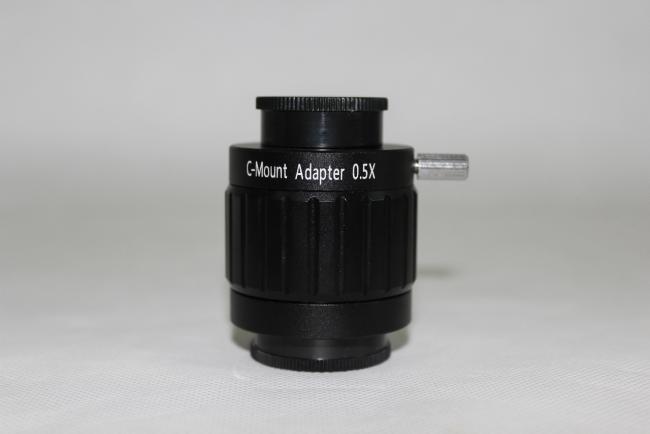

04	Camera interface CTV	0.5X
05	light source	Ring fluorescent light source, ring LED light source (adjustable in four areas), double cold light source

Camera system optional

NO.	Name	Parameters and functions
01	CMOS digital camera	12 million, 14 million, 16 million, 20 million (with functions such as single image, timing image collection, video recording, display scale, measurement, image splicing, fusion, etc., and can be connected to multiple output methods such as multimedia, printing, and EMAIL.)
