Reliable Instruments Metal Alloy Analyzer K-1688 Hand-held Precious Metal Analyzer
Price:
Bulk discount
MOQ:
1 Piece
Delivery Time:
3-7 days
Brand:
TESTECH
Product Description
K-1688 Metal Alloy Analyzer
K-1688 can analyze common alloys in one second or less. The system is built on the Microsoft WINCE platform, which has better compatibility with the computer platform in facilitating data communication. The users who want to use the device need only to know how to use a computer. KMS-Ray patented technology (mirror system design) is adopted in this device. The temporary files generated during system operation will be automatically deleted after the device restarts, and it can run smoothly as a new one for 10 years. One key system test, one step from startup to test, the test has never been so convenient.

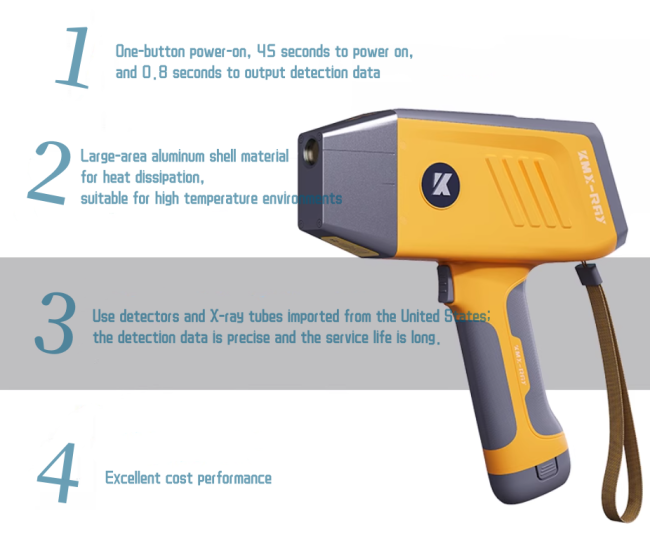

Feature:
- One-button power-on, 45 seconds to power on, and 0.8 seconds to output detection data
- Large-area aluminum shell material for heat dissipation, suitable for high temperature environments
- Use detectors and X-ray tubes imported from the United States; the detection data is precise and the service life is long.
- Excellent cost performance
| Weight | Device: 1.50kg, 1.65kg with battery |
| Dimension | 250mm x 75mm x 270mm (L*W*H) |
| Excitation source | High-power high-performance X-ray microtube |
| Target | 5 available targets for ray tubes are: gold (Au), silver (Ag), tungsten (W), tantalum (Ta), palladium (Pd) |
| Voltage | 35kV-50kV voltage (changeable) |
| Filter | A variety of selectable filters, automatically adjusted according to different tested objects |
| Detector | High-resolution Si-Pin detector |
| Detector refrigeration temperature | Peltier effect semiconductor refrigeration system |
| Standard film | 316 external standard films/window protection cover (internal plus version standard films available) |
| Power supply | 1 lithium battery (7.2v6600mAh) |
| Processor | High-performance ARM pulse processor |
| Operating system | Windows CE6.0 |
| Data trasnsimission | Hotspot sharing via Bluetooth and Wifi |
| Standard mode | K-MAX Alloy Plus 6.0 |
| Data processing | 32G large capacity data storage card: ≥80000 sets of data and spectrograms |
