TR-300 High Precision Integrated Tester Surface Roughness Waviness Measurement
Price:
Bulk discount
MOQ:
1 Piece
Delivery Time:
3-7 days
Brand:
TESTECH
Product Description

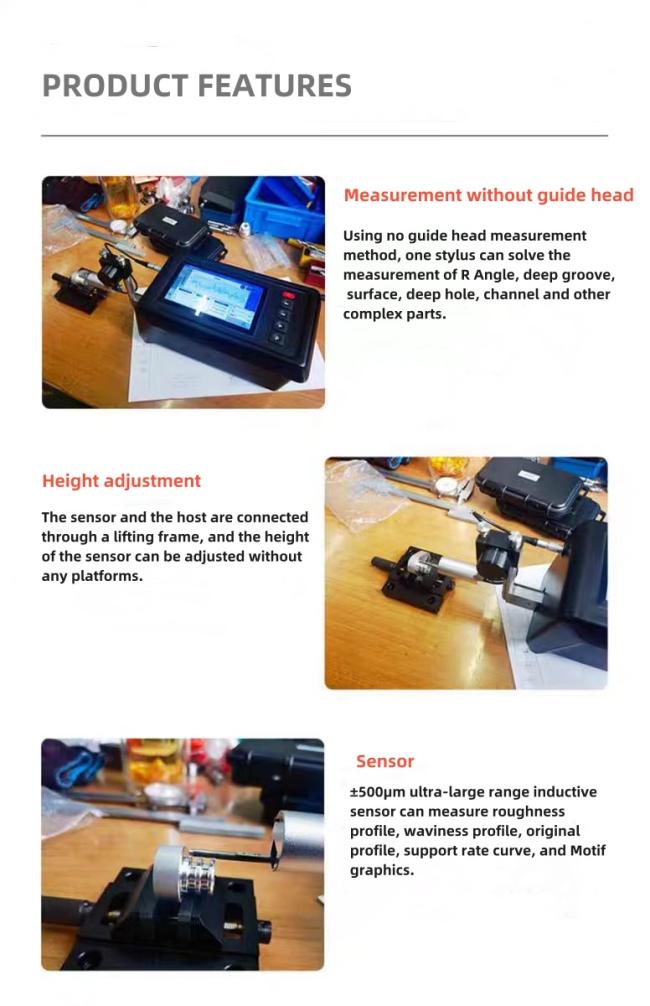

Portable/Large range/Integrated Roughness Waviness Tester TR300
TR300, an integrated roughness waviness meter, which can evaluate roughness profile, waviness profile, original profile, support rate curve and graph, 5 measurement types. Friendly software interface and simple operation. There is no need for complicated settings when measuring different workpieces. You only need to select the configuration and then measure it.
| Measuring rang | The Z axis (vertical) | 320µm (-160µm~160µm) , 12600μin (-6300μin~+6300μin) |
| The X axis (Transverse) | 17.5mm(0.69 inch) | |
| Resolution | the Z axis (vertical) | 0.002µm/±20µm, 0.004µm/±40µm 0.008µm/±80µm, 0.02µm/±160µm |
| Parameter | Ra Rz Rq Rt Rp Rv R3z R3y Rz(JIS) Ry Rs Rsm Rsk Rku Rmax Rc Rpc Rk Rpk Rvk Mr1 Mr2 | |
| standards | ISO4287,ANSI b46.1,DIN4768,JISb601 | |
| Assessed Graphic | Rmr curve, Roughness curve, Primary Profile | |
| Filter | RC,PC-RC,Gauss,D-P | |
| The sampling length(lr) | 0.25, 0.8, 2.5mm | |
| Assessment length(ln) | Ln= lr*n n=1~5 | |
| Sensor | Measuring principle | Differential Inductance |
| Stylus tip | Diamond, 90°/ cone angle/5µmR | |
| Force | Measuring force<4mN, Skid force<400mN | |
| Probe head | hard alloy, skid radius of curvature: 40mm | |
| Measuring speed | lr=0.25, Vt=0.135mm/s lr=0.8, Vt=0. 5mm/s | |
| lr=2. 5, Vt=1mm/s Return Vt=1mm/s | ||
| Accurate to | 0.001µm | |
| Tolerance | ≤±(5nm+0.1A) A=Ra standard value of precise specimen | |
| Residual Profile | ≤ 0.010µm | |
| Repeatability | ≤3% | |
| Power supply | Built-in Lithium ion battery 3200mAh, Charger :DC5V | |
| Outline dimension | Main unit: 158*55*52mm drive unit: 23*27*115mm | |
| Weight(main unit) | Around 380g | |
| Zoom of height adapter | 40mm | |
| working Environment | Temperature: - 20℃ ~ 40℃ Humidity: < 90% RH |
|
| Store and Transportation | Temperature: - 40℃ ~ 60℃ Humidity: < 90% RH |
|
| Optional accessory | Magnetic Base, height gauge adapter, curved sensor, small hole sensor, deep groove sensor, pinhole sensor, Extending Rod, Right Angle Rod, mini printer, 200mm platform, 300mm marble platform, software, mobile APP | |
