UEE924 Non Metal Metallic Glass Plastic Composites Concrete Wood Coating Thickness Gauge
Price:
Bulk discount
MOQ:
1 Piece
Delivery Time:
3-7 days
Brand:
TESTECH
Product Description
UEE924 Non-metal/metallic Glass Plastic Composites Concrete Wood Coating Thickness Gauge
It can measure the coating thickness on various metal and non-metal (glass, plastic, composite material, concrete, wood, etc.) substrates and has all the functions of a through coating thickness gauge and a metal coating thickness gauge.
Measuring Materials

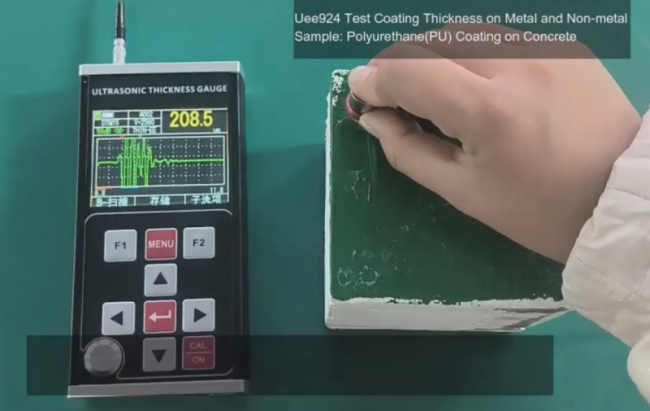

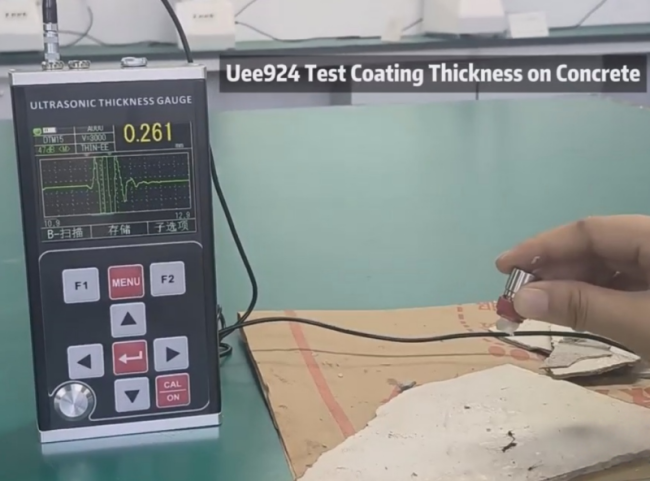

- Measures coating thickness on metallic and non-metallic substrates (glass, composites, plastics, concrete, wood, etc.)
- Suitable for measuring the thickness of metals ( such as steel, cast iron, aluminum, copper, etc. ) , plastics, ceramics, glass, resin, glass fiber and other good conductors of ultrasonic waves.
Technical Parameters
| Model | Uee924 |
|---|---|
| Probe Type | Single Crystal/ Dual Crystal |
| Measuring range | 20μm-1800mm(depends on probes) |
| MeasuringFrequency | 4Hz, 8Hz, 16Hz |
| Pulser | Negative square wave, pulse width and voltage automatically matched to theprobes |
| Velocity range | 400-19999m/s |
| Automatic shut-down | After 5,10, 20 minutes or Manual |
| Probe Calibration | One-point, Two-points, Manual |
| Gain | Auto, manual |
| Gain Range | 0~80dB |
| Rectification | Full wave, RF, half-wave positive, or half-wave negative |
| Measurment modes | (1) THIN-EE: Test thin coating mode (2) MB-E : From the start of the emission pulse to the first echo (3) E-E: Thourgh coating, available choose Em– En echo (4) THIN: For testing thin parts |
| Data mode | Thickness, Differential mode/Reduction rate mode, Min./Max. value mode |
| A-Scan | Yes |
| B-Scan | Yes |
| Coupling state | Yes |
| Battery indicator | Yes |
| Language | Chinese/English |
| Units | mm/inch |
| Menu operation | Yes |
| Software function | Dynamic gate setting, blank setting (Blank), echo blank settings (E-Blank), echo freeze, echo pan and zoom in/out |
| Storage | 100,000 thickness measurements (100 groups, 1000 each group) and 500 A-scan, 500 B-scan |
| Machine upgrade | Available |
| Display | 3.5 inch color screen |
| Data transfer | By USB port to PC |
| OperationTemperature | -10℃～＋ 50℃, Special requirements are available up to -20℃ |
| Power supply | 3 x AA Li-ion battery (3.7V*3) |
| Dimensions | 184 x 85 x 32 (mm) |
| Net weight | 250 g |
| Standard accessories | Main machine, probe*1pc, Power adapter, Protect cover, ABS box, Manual, Qualified certificate, Warranty card |
