China SJ-6 Low Voltage Wet Sponge Holiday Test Machine For Pipe Coating Pinhole Detection for sale

SJ-6 Low Voltage Wet Sponge Holiday Test Machine For Pipe Coating Pinhole Detection

Price Negotiable

Price: Bulk discount

MOQ: 1 Piece

Delivery Time: 3-7 days

Brand: TESTECH

Product Description

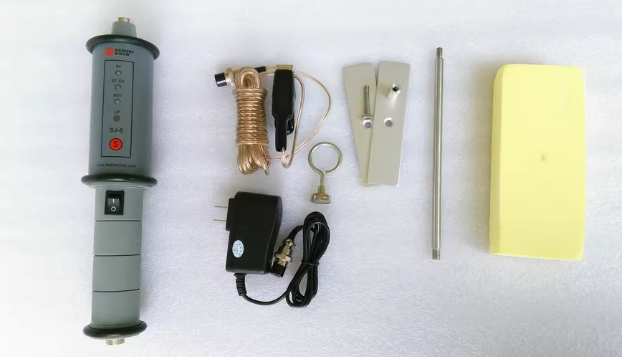

SJ-6 Low Voltage Testing Wet Sponge Pinhole Porosity Holiday Tester For Pipe Coating Leak Detector

SJ-6 wet sponge pinhole leak detector applies the wet sponge testing technology, meets the new standard of wet sponge pinhole leak detector on the design which is high quality and low voltage leak detector. The instrument is used to detect the pinhole, gap, damage and other defects of the insulative coating under 500 micrometer on the conductive substrate. SJ-6 is multi-voltage leak detector.

Machine performance

three voltage optional: 9V/67.5V/90V
visible signal and audio alarm
low voltage indicator
easy loading/unloading signal
big standard sponge
portable packing case

Detailed parameters

suitable detection thickness:	9V--300micron 67. 5V-500 micron 90V-500 micron
sensitivity:	9V-90KΩ+5% 67.5V---125KΩ±5% 90V---400KΩ±5%
accuracy of voltage:	+5%
battery:	(li-pol) 11.1V/1100mA
power consumption:	≤0. 5W
size:	290*53x53mm
voltage indicator:	three voltage has corresponding LED light
battery charge:	specially equipped with 12VDC Li battery constant voltage charge
sponge size:	170x70*30mm
length of probe stick:	195mm
length of ground wire:	4m
