Hand Held Wire Rope Tension Meter For Measure The Tension Of The Steel Cable 20-200KN
Price:
Bulk discount
MOQ:
1 Piece
Delivery Time:
3-7 days
Brand:
TESTECH
Product Description
ASZ-20KN Steel Wire Rope Tension Testing Instrument
Main Usage and Application:
Rope Tension Testing Instrument can be applied to various occasions, such as power industry, telecommunications industry, transportation industry, glass curtain wall decoration, cable way industry, construction industry, pleasure grounds, tunnel construction, fishing, major research institutions and teaching institutions, testing institutions and other occasions involved with the tension of ropes and steel wire ropes.
Features:

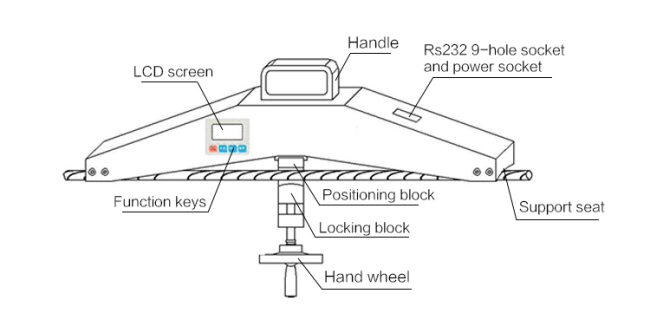

- It has the rope structure with tension force, and can directly measure without disassembly.
- It has the light weight, simple structure, convenient operation, and applies to any situations.
- It has the stable performance, high measurement accuracy, with automatic system compensation function. When the specification of the tested rope the same as the rope tension testing instrument rope number, the measurement accuracy can reach 2% error or less within the rated measurement range.
- It has broader range of measurement, with 15 kinds of rope diameter measuring functions.
- Applied range: applied to flexible, stretched ropes, such as various steel wire ropes, high-strength ropes etc.
- Accuracy grade: 2~6% of maximum function (depending on the rope form and features).
- Rope Diameter: 6~40mm.
Specification:
| Model | ASZ-20KN | |||||||
|---|---|---|---|---|---|---|---|---|
| Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Diameter | Φ6 | Φ8 | Φ9 | Φ10 | Φ12 | Φ14 | Φ16 | Φ18 |
| Load division value(KN) | 0.01 | |||||||
| Output connector | Rs232 9-hole socket | |||||||
| Power | Rechargeable battery charger (charging voltage 100V~240V) | |||||||
| Working temperature | 5℃~35℃ | |||||||
| Transport temperature | -10℃~60℃ | |||||||
| Relative humidity | 15%~80%RH | |||||||
| Working environment | No vibration focus and corrosive media around | |||||||
| Net weight | 4.7kg | |||||||

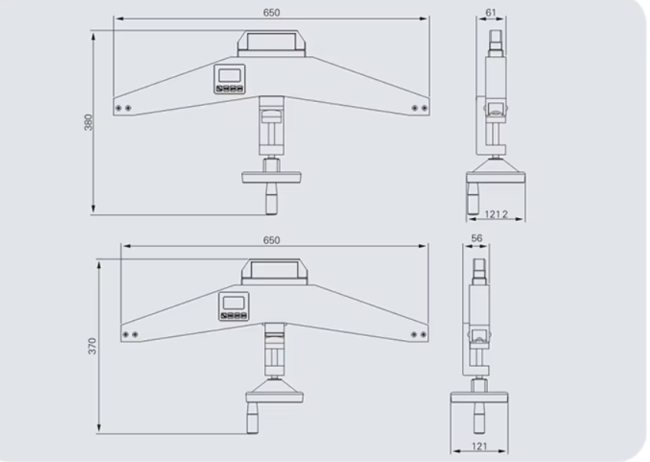

| Dimension | 650*375*100(mm) | |||||||
| Model | ASZ-50kn | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |||||||
| Diameter | Φ12 | Φ14 | Φ16 | Φ18 | Φ20 | Φ22 | Φ24 | Φ26 | |||||||
| Load division value(KN) | 0.01 | ||||||||||||||
| Output connector | Rs232 9-hole socket | ||||||||||||||
| Power | Rechargeable battery charger (charging voltage 100V~240V) | ||||||||||||||
| Working temperature | 5℃~35℃ | ||||||||||||||
| Transport temperature | -10℃~60℃ | ||||||||||||||
| Relative humidity | 15%~80%RH | ||||||||||||||
| Working environment | No vibration focus and corrosive media around | ||||||||||||||
| Net weight | 4.7kg | ||||||||||||||
| Dimension | 650*375*100(mm) | ||||||||||||||
| Model | ASZ-20 | ASZ-50 | ASZ-100 | ASZ-200 |
|---|---|---|---|---|
| Maximum load value (KN) | 20 | 50 | 100 | 200 |
| Divided load value (KN) | 0.01 | 0.01 | 0.1 | 0.1 |
| Measuring range(mm) | Φ6~Φ20 | Φ12~Φ30 | Φ16~Φ36 | Φ20~Φ40 |
| Output connector | Rs232 9-hole socket | |||
| Power | rechargeable battery charger (charging voltage 100V~240V) | |||
| Operating temperature | 5~35 | |||
| Transport temperature | -10~60 | |||
| Relative humidity | 15%~80%RH | |||
| Operation | No vibration focus and corrosive media around | |||
| Net weight | 4.7kg | |||
| Dimensions | 650*375*100mm | |||
