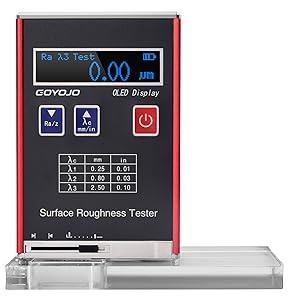

Ra Rz Rq Rt Portable Surface Roughness Tester Built In Lithium Ion Battery
Ra, Rz, Rq, Rt portable surface roughness testers
Technical Data
| 4 Testing Parameters | Ra, Rz, Rq, Rt; |
| Measuring Range | Ra, Rq: 0.05~15.0μm Rz,Rt: 0.1~50.0μm |
| Sample Length | 0.25, 0.80, 2.50mm |
| Evaluation Length | 1.25, 4.0, 5.0mm |
| Stroke Length | 6mm |
| Indication Accuracy | 0.01μm |
| Indication Error | ≤ ±15% of A; A: Ra of calibration test block |
| Variability | <6% |
| Stylus Static Force: | ≤ 0.016N |
| Force Measuring Rate of Change | ≤ 800N/m |
| Power | Built in lithium ion battery: 3.7v, 850mAh |
| Relative Humidity | <90% |
| Working Temperature | -20°C~40°C |
| Size | 106mmx70mmx24mm |
| Weight of Host | 200g |
Features
- Ra, Rz, Rq, Rt 4 testing parameters.
- Large measuring range suitable for most materials, both metal and non-metallic surface;
- Using high-speed DSP processor for data processing and calculation, quick measurement and computation speed;
- Shell used to pull aluminum mold design, durable, anti-electromagnetic interference ability significantly;
- Liquid crystal display wide temperature using OLED display, high brightness, suitable for various occasions;
- Using a dedicated charger or computer USB port for charging, can work during charging, quick and convenient;
- Real-time monitoring of lithium battery power and display, remind users to charge;
- Automatic shutdown function and low power design of software and hardware of the instrument with long working hours, suitable for field use;
- suitable for more applications, testing for metal and non-metal workpiece
- The probe assembly are built in the main unit, directly measure flat surface, in grooves of 80*30mm or more, can also measure the shaft that diameter more than 22mm.
HOW TO USE -- Step 1:
Slide the measuring area to the right to expose the sensor.
Note: The sensor is a precision instrument, so it should be carefully maintained.
Avoid exposure to expansion, moisture, oil, or strong magnetic fields. After each use, gently cover the instrument with the protective cap.
HOW TO USE -- Step 2:
Place the instrument steadily on the surface of the object to be measured and press the start measurement button.
After the measurement is complete, the results will be displayed on the screen.
Note: Do not touch the instrument or the object being measured during the measurement process to avoid affecting the measurement results.
Standard Packing List
- Surface Roughness Tester Host: 1
- Standard Calibration Block: 1
- Bracket for Calibration Block: 1
- Power Charger: 1
- Charging Cable: 1
- User Manual: 1
- Instrument Case: 1
Optional Items
| Image | Description |
|---|---|
 | Roughness Calibration Block Multi-engraved lines (Square Wave) |
 | Roughness Calibration Block Single engraved lines |
 | Roughness Comparator (30 pcs/set) |
  | Charger and Cable for Surface Roughness Tester |
 | Fixture: recommend the roughness tester combination with fixture to measure shaft small diameter shaft with minimum diameter 3mm |
