High Luminance LED Industrial Film Viewer Dual View With Adjustable Spot, Electronic Light Mask, 14x17 Inch Compatible, Continuous Operation & ISO 5580 Certified
Price:
Bulk discount
MOQ:
1 Piece
Delivery Time:
3-7 days
Brand:
TESTECH
Product Description

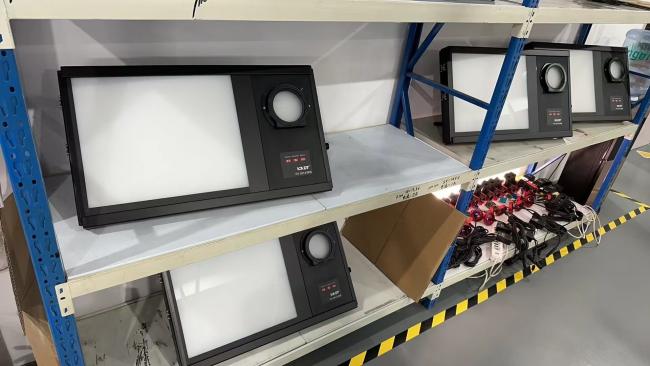

FV-2014IRIS High Luminance LED Industrial Film Viewer with 14×17" & Adjustable Spot View
FV-2014IRIS looks like a fashion LCD, but it is a really High luminance LED Industrial film viewer. It combines our newest electronic technology and most reliable LED driven circuit. Thanks to it, this viewer can view film density up to 4.2 H/D, and can be operated 24 hours continuously.
Electronic light mask
FV-2014IRIS not only support 14” * 17” film, but also support any film size. Because it has a strong LED switch control. Under its help, you can switch on or off any parts of area in the viewer window.
Dual view window
- Both of two views are LED light source
- 14 x 17" view and spot view can be switch to each other by press “IRIS” key.
- Both of them can be dim from 5%-100%.
- Spot view size can be adjust from φ5mm - φ100mm
- Complies with ISO 5580 and EN 25580
| 14 x 17 inch view | Spot view: | |
|---|---|---|
| MAX. Luminance | >= 82,800Cd/m2 (260,000Lux) | >= 280,000Cd/m2 (879,200Lux) |
| Film | 3.9D | 4.5D |
| Viewer window | 335 x 410mm (13 x 16.1 inch) | φ5-φ100mm (0.2-3.94 inch) |
| Uniformity | g=0.9 ; | g=0.95 |
| Diffusion Factor | 0.95 | 0.95 |
| Weight | 8.45Kg (18 lbs) | |
| Dimension | 71 x 41 x 5.5cm (without support leg) | |
| Power | 85-264VAC 47~63Hz. (changed by a switch) |
|
| Warranty | 2 years | |
| Standard | Complies with ISO 5580 and EN 25580 | |
