ASTM E1742 penetrameters (IQIs) are used in the radiographic examination of materials to control the image quality. During the radiographic testing, the use of the Image Quality Indicator (IQI), also called Penetrameter, provides the first indication of the RT film quality by a direct comparison of the IQl image on the radiograph.

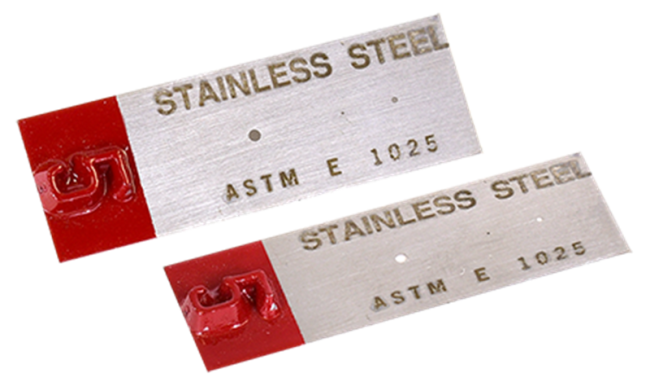

The hole type IQI typically has three different diameter holes for radiograph sensitivity check. The centre hole is the smallest one and is marked as '1T’ (T means IQI thickness).

ASTM E1742 Penetrameters are vital for non-destructive testing (NDT) and radiographic inspection. They are crucial in ensuring the quality and integrity of materials, welds, and components. Let’s delve into the world of ASTM E1742 Penetrameters and explore their features, applications, and benefits.

These Penetrameters come in a full range of thicknesses, sizes, and materials, making them highly adaptable to radiographic needs. They are designed to cater to diverse inspection scenarios, from lightweight materials to heavy-duty industrial components.

One notable feature of ASTM E1742 Penetrameters is their lead figures. These figures serve a dual purpose – identifying both the thickness of the material to be radiographed on one end and the material of the image quality indicator (IQI) on the other end. This dual identification system enhances efficiency and ensures precise radiographic assessments.

ASTM E1742 Penetrameters offer a range of customization options to meet specific testing requirements. Serialization and calibration services are available, guaranteeing the accuracy and reliability of your NDT processes.

For added protection and convenience, Penetrameters can be encapsulated in clear, thin plastic or enclosed within sturdy wood cases. Wood cases are available in two sizes for encapsulated and non-encapsulated IQIs. These cases are meticulously engineered to prevent loss and damage, featuring shock-absorbing sponge rubber inserts in the lids.

ASTM E1742 Penetrameters find extensive applications across industries, including aerospace, automotive, manufacturing, and more. They are instrumental in inspecting welds, castings, and various materials for defects, ensuring that products meet stringent quality standards.

In conclusion, ASTM E1742 Penetrameters are indispensable for radiographic inspection and NDT. Their versatility, customizability, and protection options make them valuable assets in ensuring the reliability and safety of industrial components and materials. Explore the world of ASTM E1742 Penetrameters to elevate the precision of your radiographic testing processes.

The size specified should represent the thickness of the material to be radiographed.

The actual thickness of the IQI will be 2% of the size specified.
