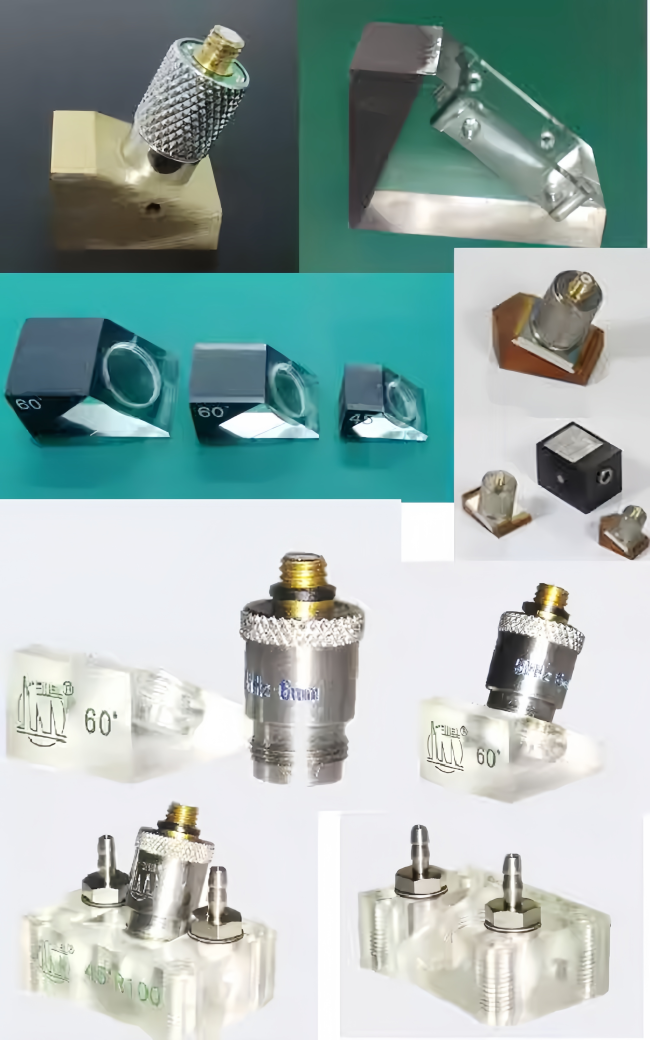

TOFD Probe Wedge Sets 5-12MHz Dual Crystal 45C-70C Angles Lemo00 Lemo01 Detachable
We produce a variety of high-quality TOFD probes, and our performance test results have reached the international leading level. Among them, the bandwidth of the 5MHz and 7.5MHz probes can reach 130% and 120% respectively when measured on plexiglass and polystyrene blocks.
| Frequency | 2.5Mhz | 3.0Mhz | 5.0Mhz | 7.5Mhz | 10Mhz | 15Mhz |
|---|---|---|---|---|---|---|
| Element Diameter | 12mm | 10mm | 6mm | 4mm | 3mm | 2.5mm |
| Ribbed dimensions | 5/8"-24 | 9/16"-24 | 3/8"-32 | 3/8″ -32 | 3/8″ -32 | 3/8″ -32 |
| Connect type | Lemo 00, lemo 01 | Lemo 00, lemo 01 | Lemo 00, lemo 01 | Lemo 00, lemo 01 | Lemo 00, lemo 01 | Lemo 00, lemo 01 |
| Material of Wedge | Acrylic/Polystyrene | Acrylic/Polystyrene | Acrylic/Polystyrene | Acrylic/Polystyrene | Polystyrene | Polystyrene |
| Frequency | Size of Element | Connector | Matched wedges |
|---|---|---|---|
| 10Mhz | 3mm |
LEMO 00 compatible microdot connector. Probe dimensions: Height (including connector) approx. 22mm. |
45°, 60°, 75° (can be customized) |
| 10Mhz | 6mm | ||
| 5Mhz | 12mm | ||
| 5Mhz | 6mm | ||
| 2.5Mhz | 12mm | ||
| 2.5Mhz | 6mm |
We can manufacture ultrasonic probes of various specifications according to customer requirements.
Our main products include ultrasonic transducers, ultrasonic flaw detectors, connecting cables, high-frequency connectors, piezoelectric crystals, and other testing equipment.
Our company offers a complete range of products:
- straight probes (hard protective film)
- straight probes (soft protective film)
- angle probes
- dual-crystal angle probes
- surface wave probes
- echo probes
- dual-crystal straight probes
- medical probes
- small-angle probes
- small-diameter pipe probes
- plate wave probes
- creeping wave probes
- thin plate probes
- variable angle probes
- rail probes
- axle probes
- piston probes
- dual-crystal bearing probes
- brake shoe probes
- liquid immersion probes
- water-filled probes
- dual-crystal water-filled probes
- liquid crystal focusing probes
- contact focusing probes
- contact focusing angle probes
- conventional thickness gauge probes
- small-diameter pipe thickness gauge probes
- medium-temperature thickness gauge probes
- high-temperature thickness gauge probes
- deep-water probes
- air probes
Welcome to inquire. Quality guaranteed, discounts available for bulk orders.
