AWS RC Resolution Calibration Block For Ultrasonic NDT Weld Inspection ISO 2400 CE
Price:
Bulk discount
MOQ:
1 Piece
Delivery Time:
3-7 days
Brand:
TESTECH
Product Description
AWS Resolution Reference Block
RC block,also called AWS Resolution Reference Block,is used for checking resolution capabilities of angle beam transducers.
Specification:
| Block Type | Standard | Specification | Material |
|---|---|---|---|
| RC Test Block |
ANSI/AWS D1.1 |
Metric Dimensions: 6.000" x 3.000" x 1.000" (152.4 mm x 76.2 mm x 25.4 mm) Contains three sets of 0.0625" diameter through -holes for 45°, 60°and 70°. AWS does not specify a separate metric version of the AWS Resolution block.This one block can be used for both inch and metric requirements. |
1018 Steel |
| 304/316 Stainless Steel | |||
| 7075-T6 Aluminum | |||
| Duplex stainless steel 2205 | |||
| *Custom calibration blocks are available, like chrome-nickel alloy, aluminum, cast iron, refractory alloy, etc. | |||

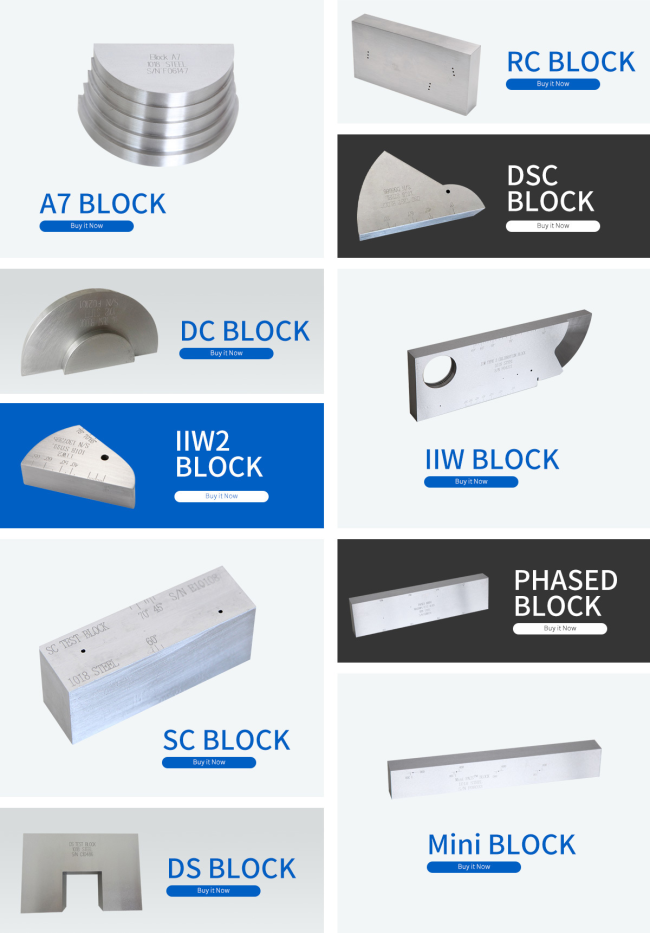

Similar Products
