Fully Automatic Explosion Proof 125L Capacity Solvent Recovery Machine for Industrial Alcohol IPA NMP
Fully Automatic Explosion Proof 125L Capacity Solvent Recovery Machine for Industrial Alcohol IPA NMP
Product Description
Fully automatic explosion-proof solvent recovery machine, specially designed for the recovery of high-boiling-point solvents such as industrial alcohol, IPA, and NMP. The equipment has obtained national explosion-proof certification and is equipped with a flameproof design suitable for hazardous operations. The SUS304 stainless steel barrel body is corrosion-resistant and resistant to aging. It can be filled with 125 liters of material at a time, and the distillation efficiency is over 95%. It is equipped with a PLC programmable control system, operating automatically throughout the process. It automatically cuts off power in case of overpressure or overtemperature. This equipment not only reduces the frequency of purchasing new liquid but also reduces the amount of hazardous waste for external disposal. The investment return period is short, making it an ideal configuration for enterprises to reduce costs and increase efficiency.
Technical Specifications
| Specification | Unit | Value |
| Main unit model | - | TE-125 |
| Explosion-proof Grade | - | ExdbIIBT3/T4Gb |
| Feed Capacity | L | ≤120 |
| Maximum Heating Power | kW | 6 kW |
| Power Supply | V/Hz | 380V (customizable for 50/60Hz) |
| Average Processing Time | h | 4.5h(continuous 24h operation supported) |
| Weight | kg | ≈325 |
| Overall Dimensions (L×W×H) | mm | 1500×850×1450 |
| Required Floor Space (L×W×H) | m | 4×3×3 |
| Daily Output (12h) | L | 125-300 |
| Cooling Method | - | Air-cooled / Water-cooled |
| Certifications | - | CE/EX |
| Control System | - | PLC Control |
| Recovery Efficiency | (%) | 95 |
Core Advantages
- Efficient recycling, energy saving and environmental protection
Using advanced regeneration technology, the solvent recovery rate is as high as 95% or more, greatly reducing waste liquid discharge, lowering treatment costs, and helping enterprises achieve green production. - Intelligent control, easy operation
Equipped with an automated control system, it monitors parameters suchs as temperature and pressure in real time, with one-button start/stop, reducing manual intervention and ensuring stable operation. - High-quality stainless steel construction, corrosion-resistant and durable
Fully stainless steel structure, resistant to acid and alkali corrosion, suitable for various organic solvents, with a long service life and low maintenance costs. - Large-capacity processing, enhancing efficiency
125L large-capacity design meets continuous production requirements, improves solvent recovery efficiency, and reduces downtime for material changes. - Safe and reliable, compliant with industrial standards
Multiple safety protection devices (explosion-proof, over-temperature protection, etc.) comply with industrial safety standards, ensuring safe production without hazards.
Successful Cases

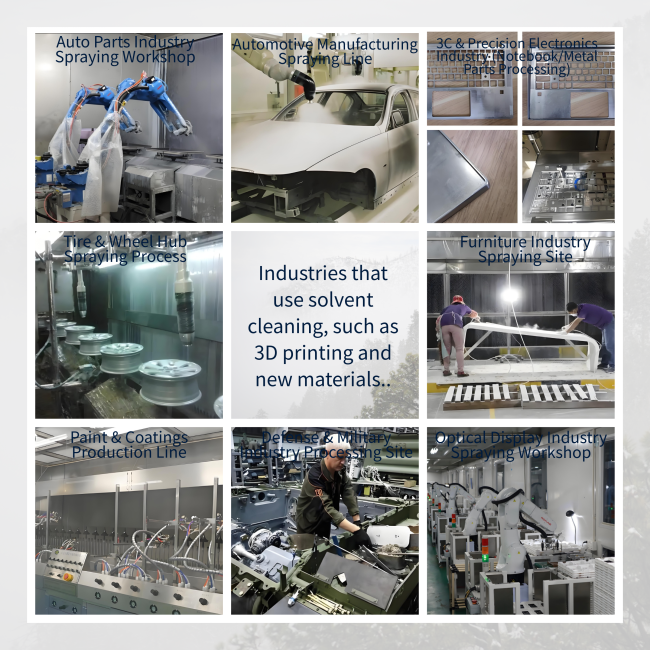

Solvent Recovery Application
Spraying and roller coating companies for automobiles, auto parts, decorative materials, laptop accessories, furniture and home appliances;
Electronics, stamping, display, optics, photovoltaics and other production enterprises that use solvents as cleaning processes;
Paint, ink, coating chemical, printing, painting and other production and processing industries;
Application fields that produce waste solvents such as scientific research institutions and university laboratories; and other fields that use organic solvents as cleaning agents.And other companies that use organic solvents in their production process
