JBETT TE-20L Vertical Solvent Recovery Machine - Explosion-Proof PLC Control Industrial Solvent Recycler
JBETT TE-20L Vertical Solvent Recovery Machine - Explosion-Proof PLC Control Industrial Solvent Recycler
Product Introduction
Core Selling Points
✅ Intelligent & Easy Operation: Equipped with PLC control system and Chinese-English human-machine interface, supports timed/constant temperature shutdown, over-temperature/over-pressure automatic alarm shutdown, easy to operate.
✅ Energy-Saving & Efficient: Max heating power 2KW, 220V power supply, average recovery time 2-2.5 hours, daily processing capacity 20-60L (12H), greatly reduce solvent purchase costs.
✅ Customizable & Flexible: Supports feed capacity ≥20L, host size 8506001200mm, customizable functions to meet different industry needs, compatible with multiple types of solvents.
✅ Durable & Reliable: High-quality stainless steel body, about 100KG weight, with mobile wheels at the bottom, suitable for chemical, spraying, printing and other industries.
Technical Specifications
| Specification | Unit | Technical Data |
| Main unit model | - | TE-20 |
| Explosion-proof Grade | - | ExdbIIBT3/T4Gb |
| Feed Capacity | L | ≤18 |
| Maximum Heating Power | kW | 2 kW |
| Power Supply | V/Hz | 220V (customizable for 50/60Hz) |
| Average Processing Time | h | 2 (continuous 24h operation supported) |
| Weight | kg | ≈100 |
| Overall Dimensions (L×W×H) | mm | 850*600*1200 |
| Required Floor Space (L×W×H) | m | 3×3×3 |
| Daily Output (12h) | L | 20-60L |
| Cooling Method | - | Air-cooled / Water-cooled |
| Certifications | - | CE/EX |
| Control System | - | PLC Control |
| Recovery Efficiency | (%) | 95 |
Workflow
Waste Collection → Automatic Feeding → Sealed Distillation → Condensation Purification → Clean Solvent Output → Reuse. Fully sealed design, no volatilization & no odor.
Applicable Industries
After-Sales Service

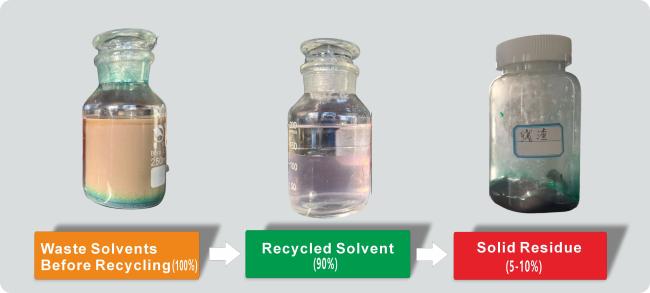

Before and After Waste Solvent Recycling
Qualifications
Packaging & Shipping
Packaging:
- Wooden boxes are used for outer packaging;
- Neutral packaging or customized packaging can be provided.
Shipping:
-We can transport goods for you through international express (such as DHL/UPS/TNT, etc.).
You can choose a reasonable transportation method according to your time and budget. In addition,
You can also choose to use your own shipping agent.
| Shipping method | Note |
| Express | Door to door, very convenient, don't need to clearance or pick-up |
| By air | Airport to an airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you. |
| By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you. |
Pre-sale Service:
--24 Hours online service for your consultation.
--Help choose right model, and a series of services, people, and advice.
--Give you the best offer.
--Provide discount for many sets order.
--Do customer's request.
--Choose payment term you convenient.
--Promptly production and delivery, inform you in time.
--Can provide invoice value as you like to decrease your tax.
After-sales service:
-- One-year warranty, lifelong technical support.
-- Overseas training for technical engineers can be provided.
-- Remote control technical consultation is provided.
-- Maintenance plan is provided.
