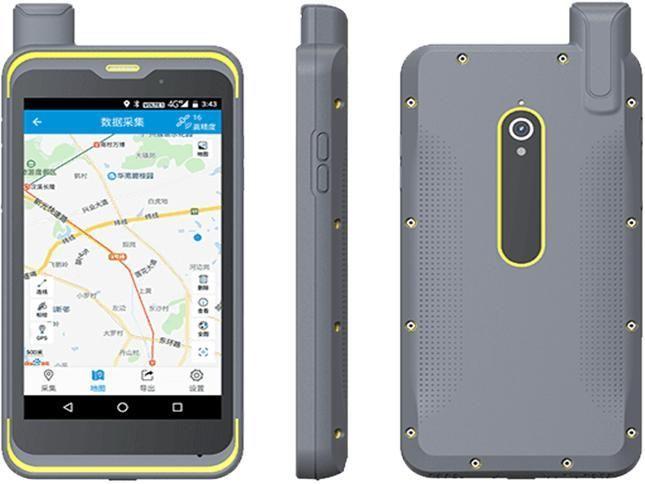

Rugged Qmini A7 GIS Handheld Device Horizontal Line Survey Equipment
Price:
$15-30000
MOQ:
1
Delivery Time:
10-30days
Brand:
CETU
Product Description
1mm Accuracy Qmini A7 Gis Handheld The Ideal Solution for Horizontal Line Surveys and Data Collection
Qmini A7 GIS Handheld provides a combination of Beidou high-precision positioning, dual-mode intercom, 4G smartphone, with background multi-network interconnection and other functions. It is small with complete functions and a high level of protection. Besides, it is a new type of rugged centimeter-level precision intelligent terminal product.
High-Precision
With 184-channel positioning chip and removable spiral GNSS antenna, Qmini A7 supports all constellations GPS/GLONASS/BDS/Galileo, and the positioning accuracy can reach 5cm. Intercom
Qmini A7 integrates UHF analog intercom and DMR digital intercom, communication distance can reach 5 km and support radio relay, special intercom button can improve work and cooperation efficiency.High quality
Rugged design, FHD screen, super performance and long battery life.
| Product Model | QminiA5/A7 | |
| GNSS Feature | Positioning Technology | AGPS spiral antenna: 72 channels |
| GPS: L1 C/A | ||
| GLONASS: L 1OF | ||
| BeiDou: B1 | ||
| Galileo: E1B/C | ||
| SBAS: L1C/A0NAAS, EGNOS, MSAS, GAGAN) | ||
| QZSS: L 1 C/A | ||
| Dual constellation system: GPS/GLONASS or GPS/Beidou | ||
| Autonomous | 1-2m | |
| SBAS | 1m | |
| Network RTK | Qmini A5:≤0.5m (RTD only) | |
| Qmini A7: ≤0.2m | ||
| Update Rate | 1-5Hz | |
| System | Operating System | Android 6.0 |
| Configuration | Processor | 2.0GHz, 8 core high speed processor |
| Storage | RAM 3GB, ROM 32GB, T-Flash Card 128GB | |
| Display | 5.5 inches glare resistant, touch able screen | |
| Resolution | 1920 x 1 080, under the sun | |
| Camera | 13M Pixels camera, auto focus, highlight LED flash | |
| Data Communication | Network Type | TD-LTE,FDD-LTE, TD-SCDMA, CDMA (EVDO,2000) |
| WCDMA, GSM (GPRS) | ||
| Wi-Fi | IEEE 802.11 b/g/n, AP, Wapi | |
| Bluetooth | Bluetooth 4.0, BLE | |
| Battery Feature | USB | Type-C, OTG function |
| Capacity | 3.7V, 5500mAh | |
| Applications | Working Time | 10-12 hours |
| R Module Scan | QR code, RFID/NFC, | |
| Physical Characteristics | Build-in Sensor | G-Sensor, Gyroscope, Compass, Barometer, Ambient Light Sensor, Proximity Sensor |
| Size | 165mm*85mm*18mm | |
| Weight | 320g (with battery) | |
| Temperature | - 30°C - + 70°C(Operating); - 40'C ~ + 80°C (Storage) | |
| Dustproof and Waterproof | IP67, anti 1.Sm free drop |
