1408 Channels Geodesic GNSS RTK Receiver Metal And Plastic Geodesic Surveying Equipment
Price:
$1200-3000
MOQ:
1
Delivery Time:
10-30days
Brand:
CETU
Product Description
Product Description
The i93 GNSS receiver is an extremely versatile RTK that integrates the latest GNSS, IMU, and premium dual-camera technologies for a more compelling user experience. Its 3D visual stakeout feature provides unparalleled ease of use and comfort, boosting efficiency for any construction site layout project. Visual survey with video-photogrammetry technology enables accurate point measurements and access to previously hard-to-reach, signal obstructed, and hazardous points. The i93 GNSS can be used to complement aerial surveys generated from oblique imagery since its data is compatible with the most popular 3D modeling software. The i93 GNSS receiver is powered by the innovative CHCNAV iStar GNSS RTK algorithm, multi-band GNSS channels, and hybrid engine for reliable, high accuracy positioning in even the most challenging site conditions. The Auto-IMU of i93 features automatic initialization, eliminating the hassle of manual initialization and simplifying surveying operations in the ffeld. The i93 is the ideal solution for completing tasks faster, more accurately, and more efffciently.

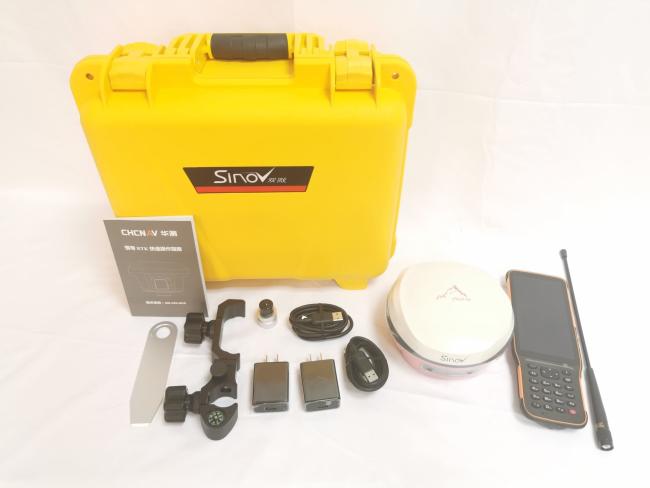

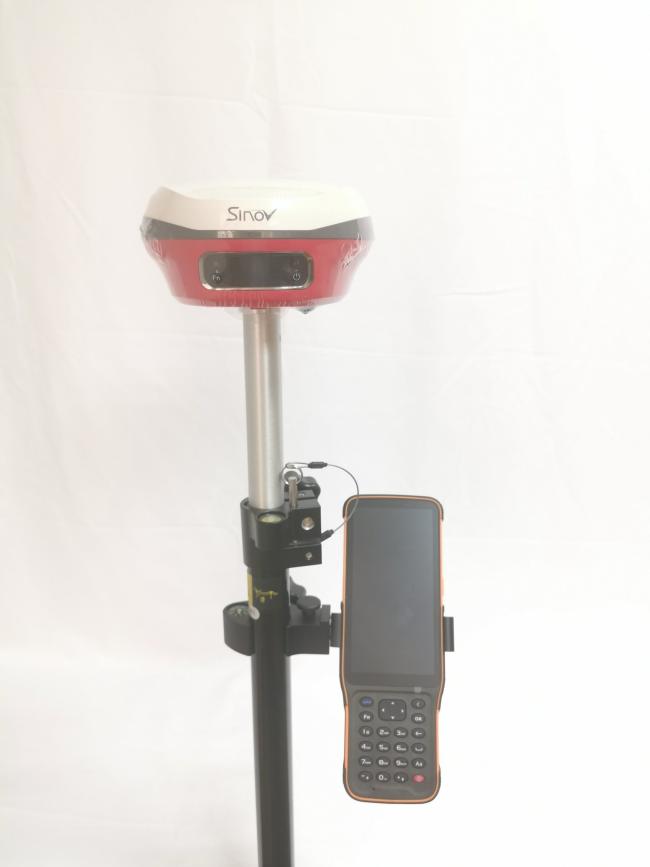

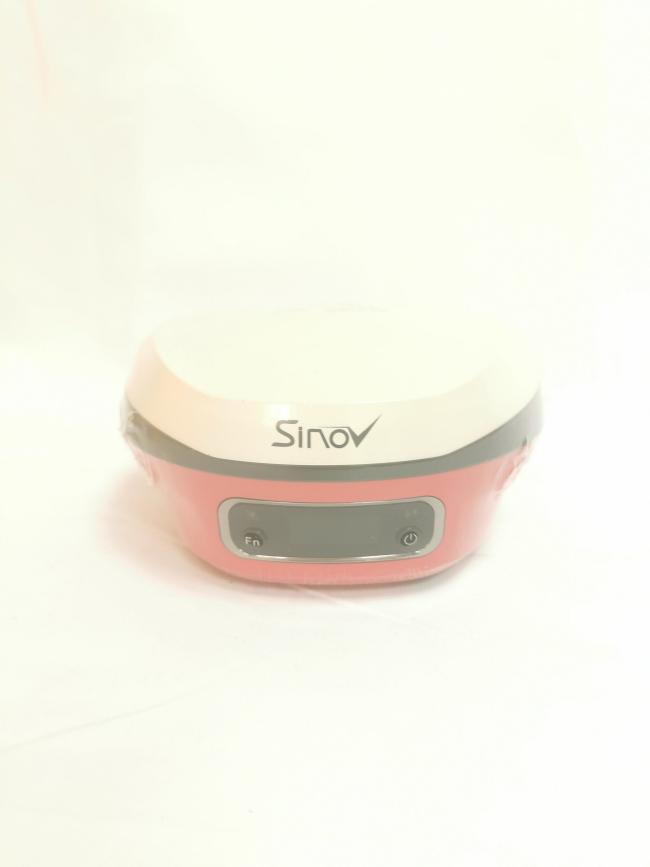

Detailed Photos

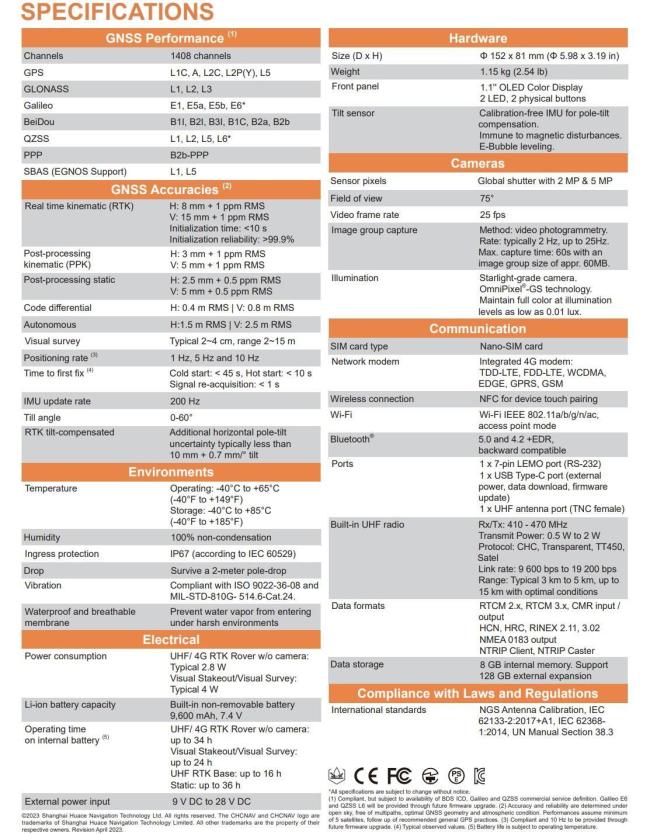

Product Parameters
Item | Content | Index |
Satellite and Accuracy | satellite system | GPS+BDS+Glonass+Galileo+QZSS, support Beidou three generations, support five-star twenty-one frequency points |
number of channels | 1408 | |
initial reliability | 99.90% | |
Continuous test without network | support | |
Anti-jamming | Narrowband anti-jamming technology, effectively shielding the internal electromagnetic interference of the host | |
RTK accuracy | Horizontal accuracy: ±( 8mm + 1*10-6*D)mm Vertical accuracy: ±(15mm + 1*10-6*D)mm | |
static accuracy | Horizontal accuracy: ±(2.5mm + 0.5*10-6*D)mm Vertical accuracy: ±( 5mm + 0.5*10-6*D)mm | |
GNSS+inertial navigation | IMU update rate | 200Hz |
Tilt angle | 0-60° | |
Tilt Compensation Accuracy | 10 mm + 0.7 mm/° tilt (accuracy <2.5cm within 30°) | |
Super inertial navigation | Support inertial navigation will not exit after initialization is complete | |
User interaction | Indicator light | 1 satellite light + 1 differential data light+ 1 static light + 1 power light |
button | Static switch button + power/confirm button | |
web page | Support PC/Mobile web pages | |
Camera | Function | Support visual stakeout |
pixel | 2MP&5MP | |
frame rate | 25Hz | |
Field of view (H, V) | 75°, 75° | |
Illumination | Starlight-level camera, full-color images can still be maintained under 0.01lux illumination |
physical properties | size | Φ133mm*87.6mm | |
weight | 0.8 Kg (including battery) | ||
material | magnesium alloy | ||
Operating temperature | -45ºC~+75ºC | ||
storage temperature | -55ºC~+85ºC | ||
waterproof breathable membrane | Prevent water vapor from entering the device in harsh environments such as sun exposure and sudden heavy rain | ||
Waterproof and dustproof | IP68 (anti-30 minutes underwater 1 meter immersion) | ||
Anti-collision | IK08 (under the same mechanical impact force of 2.5 kg steel hammer without damage, resistant to 3 meters drop) | ||
electrical properties | Battery | Built-in 6600mAh lithium battery The typical battery life of the mobile station is more than 16h | |
fast charge | Support fast charging, charge for 1 hour, restore 70% of the power | ||
External power supply | (5-12)VDC | ||
storage | 8GB | ||
data output | differential data | RTCM2.X, RTCM3.X, CMR, CHC516 | |
location data | NMEA-0183 | ||
static data | HCN, RINEX 2.11, RINEX3.02 | ||
data communication | Wireless connections | Support NFC, support Bluetooth, Wi-Fi touch flash receiver; | |
network module | Hand-held controller supports 4G full Netcom | ||
radio station | Built-in single-receiving radio, support CTI/TT450/transparent transmission protocol | ||
Advanced Functions | Online upgrade | Support remote push receiver upgrade | |
double-receive | Support radio + network two-way data difference at the same time, providing comprehensive data services |
Hand-held Controller | model | HCE600 Android Measuring Hand-held Controller | |
operating system | Android 10 | ||
CPU | Octa-core 2.0GHz processor | ||
LCD screen | 5.5'' high-definition display |
Certifications

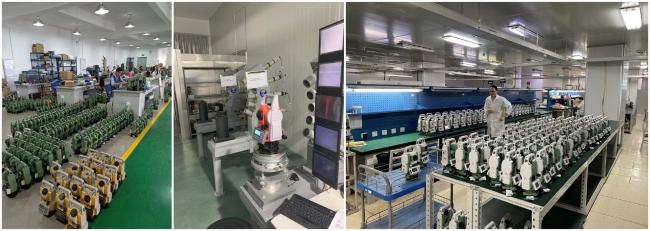

Factory Photos
