Automatic SF6 Recycling System for GIS GIL High Voltage Applications PLC Full Automation Industry Standard Compliant Customizable Configuration
As the drafting entity of China's DL/T1353-2024 technical standard for SF6 treatment systems, our solutions set industry benchmarks. SF6 recovery equipment is custom-engineered, with configurations tailored to client needs—including negative-pressure recycling, storage tank capacity, and fully automated operations.
The KSLH-110Y/160-1200WZ is a high-capacity automatic system designed for 550kV insulation pot withstand voltage testing. It integrates a 110m³/h main compressor, 160m³/h negative-pressure compressor, 63m³/h pipeline vacuum pump, and 1200L horizontal external liquid storage tank for efficient SF6 management in high-voltage applications.
| Component | Specification |
|---|---|
| Main Compressor | 110m³/h capacity |
| Negative-Pressure Compressor | 160m³/h, 0.5MPa suction pressure |
| Pipeline Vacuum Pump | 63m³/h, ultimate vacuum ≤5Pa |
| Liquid Storage Tank | 1200L horizontal, carbon steel |

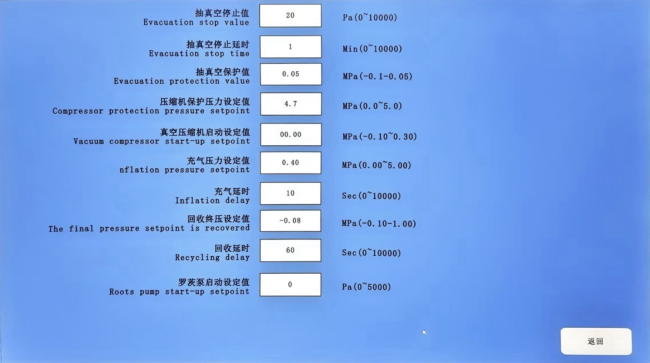

| Control System | PLC-based full automation with HMI |
| Filtration System | 0.1μm particle filter, 3ppm moisture trap |
| Power Supply | 3Φ 380V 50Hz, 45kW total load |
- Compression Configurations: Oil-free vs. lubricated compressors
- Storage Capacity: 500L to 2000L tank options
- Functional Add-ons: Filtration dehydration , Gas moisture and purity testing (optional)
- Mobility Options: Trailer-mounted
- Compliant with DL/T1353-2024 and IEC 62271-403
- Designed for GIS/GIL systems up to 1100kV voltage class
- Meets ISO 14001 environmental management standards
1. Top-tier Technical Authority
Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications
2. One-stop SF6 Solution Range
Portable detectors to recovery systems | 100% accredited by national labs
3. Customizable Turnkey Services
Tailored equipment design | On-site installation & debugging
4. Global Support & Proven Reputation
1000+ global clients | Localized after-sales service
5. Eco-compliant & Cost-efficient
Aligns with EU F-gas Directive | Zero-emission SF6 handling
