Oil Lubricated Telescopic Leak SF6 Gas Detector 0.01ppm With Digital LCD Display
The LF-302 represents an upgraded iteration of the LF-301, tailored for on-site SF6 leak detection with a telescopic handle design for enhanced mobility. Unlike the LF-303 (which features an oil-free pump), the LF-302 incorporates a double-stage oil-lubricated vacuum pump, delivering robust performance for industrial applications. Leveraging low-voltage ionization in a high-frequency magnetic field, it achieves 0.01ppm sensitivity, supported by set-value alarms (buzzer and concentration visual cues).
- Telescopic Handle Design:Enhances portability for multi-site inspections.
- Extended Battery Life:50% longer runtime via optimized lithium battery.
- Advanced Dust Protection:PM1.0 filter screen prevents probe blockage, maintaining long-term accuracy.
| Parameter | Details |
|---|---|
| Vacuum Pump Type | Double-stage Oil-Lubricated Pump (Customized) |
| Sensitivity | 0.01ppm (SF6, highest precision) |
| Measurement Range | 0.01–10,000ppm (optimal: 0.01–100ppm) |
| Response Time | ≤0.5s (≥1ppm SF6 environment) |
| Recovery Time | ≤10s (99.99% SF6); ≤1s (10% SF6) |
| Power Source | AC 220V/50Hz or lithium battery (3-hour continuous operation) |
| Battery Life | 50% longer than LF-301 (4-hour continuous use) |
| Protection Features | PM1.0 filter screen (prevents dust blockage), fault self-check system |
| Sensor Lifespan | 5–10 years (no radiation source) |
| Dimensions (Retracted) | 400*340*320mm (L*W*H) |
| Weight | 13.0±0.5kg |
| Warranty | 1-year full coverage (including sensor) |
1. Top-tier Technical Authority
Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications
2. One-stop SF6 Solution Range

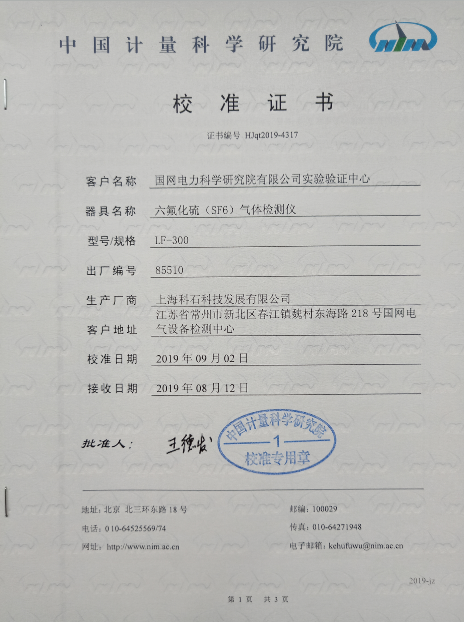

Portable detectors to recovery systems | 100% accredited by national labs
3. Customizable Turnkey Services
Tailored equipment design | On-site installation & debugging
4. Global Support & Proven Reputation
1000+ global clients | Localized after-sales service
5. Eco-compliant & Cost-efficient
Aligns with EU F-gas Directive | Zero-emission SF6 handling
