Industrial SF6 Accessories Gas Inflation Pressure Management System [KSCQ-5G]
Price:
$1500-$1600
MOQ:
10
Delivery Time:
10 work days
Brand:
KSTONE
Product Description
High-Precision SF6 Inflation System KSCQ-5G – Pressure Management Solution
Operational Principle

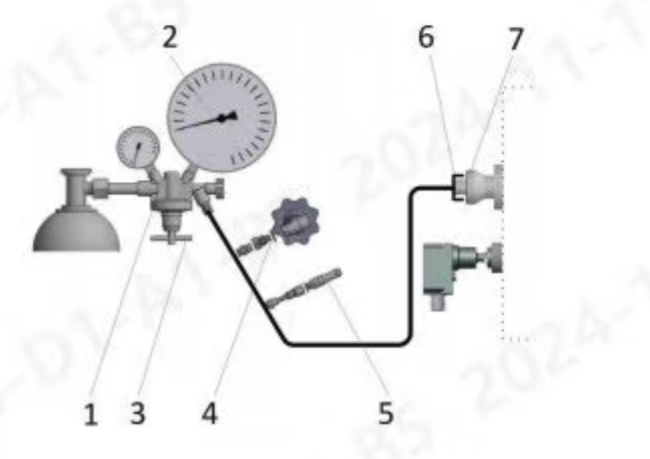

This precision-engineered kit enables controlled SF6 gas transfer from cylinders to GIS equipment via a pressure regulator, reinforced hose, and density relay. Featuring a 0.25-class accuracy pressure gauge and selectable safety valves (5.5bar/9.8bar), it ensures precise pressure regulation and overpressure protection for industrial gas charging applications.
System Configuration
| Component | Specification |
|---|---|
| Adjustable Pressure Regulator | 1 unit (0-10 bar output range) |
| High-Precision Pressure Gauge | 0.25-class accuracy, 0-10 bar scale |
| Safety Relief Valve | Selectable: 5.5bar (79.8psi) or 9.8bar (142psi) |
| DN8 Reinforced Inflation Hose | 5m length, 15bar working pressure |
| SF6 Density Relay | Auto shut-off at preset density levels |
| Impact-Resistant Case | Foam-lined, 600×400×250mm dimensions |
Technical Parameters Table
| Parameter | Standard Value |
|---|---|
| Model Code | KSCQ-5G |
| Application Scope | GIS system SF6 gas charging |
| Gauge Accuracy Class | 0.25 (±0.025bar full-scale) |
| Safety Valve Options | 5.5bar / 9.8bar (dual variants) |
| Hose Pressure | 15bar (217.5psi) maximum |
| Operational Temperature | -20°C to +60°C |
| Case Protection Level | IP54 dust/water resistance |
Safety & Performance Features
- Dual-Layer Protection: Pressure regulator with integrated safety valve prevents overcharging
- Industrial-Grade Components: Reinforced hose and corrosion-resistant fittings for longevity
- Precision Measurement: 0.25-class gauge enables density control within ±1% tolerance
