Portable SF6 Leak Detector with 0.1 ppm Sensitivity and NDIR Infrared Technology for GIS Inspection
LF-03-FR Portable SF6 Leak Detector is a high-sensitivity infrared SF6 quantitative leak detector specially designed for GIS inspection, SF6 circuit breaker maintenance and high-voltage switchgear leak testing.
The detector adopts imported NDIR infrared sensor technology, providing fast response, excellent stability and highly accurate quantitative SF6 leak detection performance.
With minimum detection sensitivity down to 0.1 ppm, LF-03-FR can rapidly identify micro SF6 leakage points in GIS equipment, substations and electrical power systems.
LF-03-FR is an upgraded model based on LF-01-FR and LF-02-FR platforms and can be used as an alternative to WIKA and DILO SF6 infrared leak detectors.
KSTONE is also one of the drafting organizations of Chinese National Standard GB/T11023-2018 for SF6 gas tightness testing of high-voltage switchgear equipment.
LF-03-FR SF6 leak detector provides ultra-high sensitivity with minimum detection limit up to 0.1 ppm for accurate quantitative SF6 leak analysis.
The detector adopts imported dual-beam NDIR infrared technology for stable and reliable SF6 gas leak detection.
- Response time ≤3 seconds
- Warm-up time ≤3 minutes
Fast response improves on-site GIS inspection efficiency
Compact lightweight structure with flexible gooseneck probe design for easy operation inside switchgear cabinets and GIS systems.
Color touchscreen interface enables intuitive operation and real-time SF6 concentration monitoring.
When SF6 leakage exceeds preset value:
- Audible alarm activates
- Screen color warning displayed
- Real-time alarm indication shown
Enclosure-based leakage rate calculation algorithm (bagging method) supports quantitative SF6 leakage rate calculation for GIS equipment testing.
Rechargeable lithium battery supports more than 6 hours continuous operation.
| Item | Specification |
|---|---|
| Model | LF-03-FR |
| Detection Principle | NDIR Non-Dispersive Infrared |
| Measurement Range | 0-1000 ppm |
| Minimum Detection Limit | 0.1 ppm |
| Sensitivity | 0.1 ppm |
| Resolution | 0.1 ppm |
| Accuracy | ≤ ±2% F.S |
| Response Time | ≤ 3 s |
| Warm-Up Time | ≤ 3 min |
| Detection Method | Handheld suction sampling method |
| Main Display | 800 * 480 color LCD |
| Handle Display | 320 * 240 color LCD |
| Operation | Resistive touchscreen |
| Working Humidity | ≤ 90% RH |
| Power Supply | Lithium battery / AC220V |
| Battery Runtime | ≥6 hours |

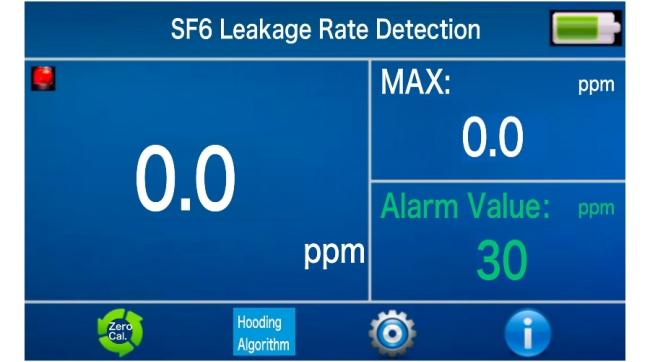

The LF-03-FR SF6 leak detector provides intuitive touchscreen operation interface including:
- Leakage Alarm Indicator
- Real-time Leakage Rate
Maximum Value Recorded During Test
- Alarm Limit Display
- Device Info Key
Settings Function
Enclosure Method Calculation Key
- Zero Calibration

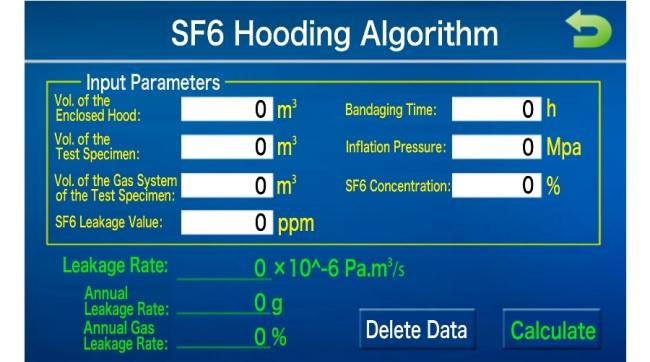

Quick Calculation Page of the Cover Method (Enter the above data to calculate the annual leakage rate)

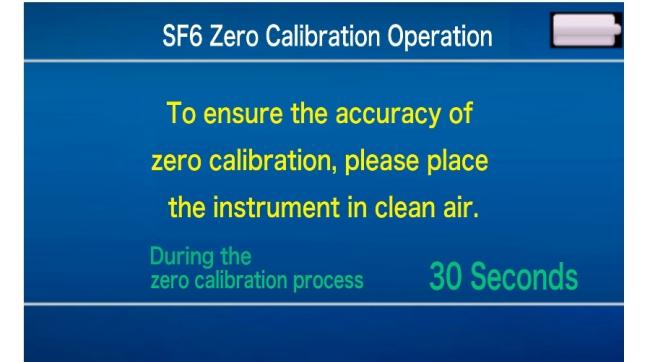

Zero Calibration Page
LF-03-FR is designed for high-sensitivity SF6 leak detection applications.
The minimum detection limit is 0.1 ppm.
Yes. The detector is designed for GIS and high-voltage switchgear leak inspection.
Yes. The detector supports quantitative SF6 leak detection and leakage rate calculation.
Yes. LF-03-FR can be used as an alternative to WIKA and DILO infrared SF6 leak detectors.
KSTONE provides professional SF6 gas detection and handling equipment for:
- GIS manufacturers
- Power utilities
- Electrical maintenance companies
- High-voltage laboratories
