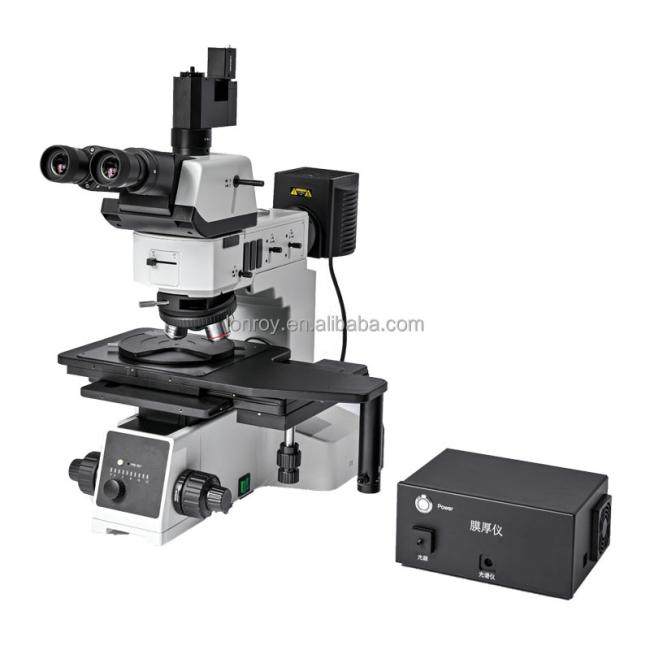

Microscopic Film Thickness Meter Coating Thickness Tester Microscopic Film Thickness Gauge

I. Overview

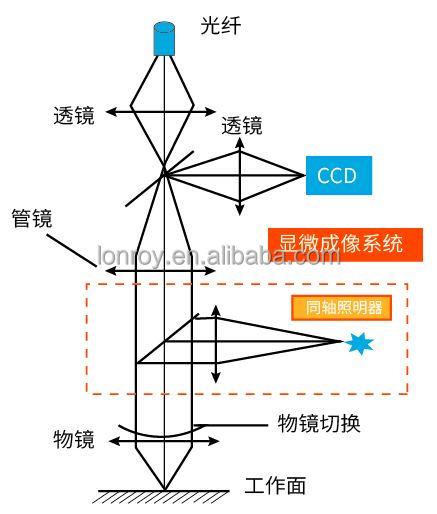

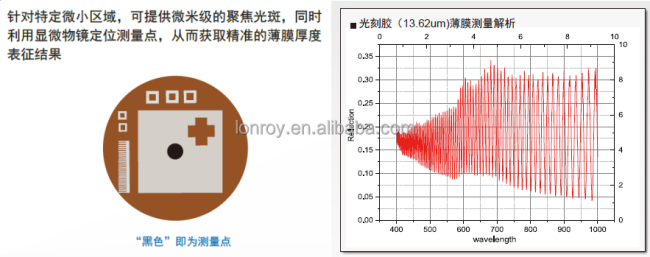

The LR-A427 can provide a focused light spot with a micron-level resolution for specific small areas. At the same time, it uses a microscopic objective lens to locate the measurement points, thereby obtaining precise thickness characterization results at the specific positions.

1. The size of the light spot can be customized, and the minimum size can reach 10 micrometers.

2. Non-contact, non-destructive measurement;

3. The core algorithm supports the analysis of thin films to thick films, and single-layer films to multi-layer films.

4. Flexible configuration, supporting customization

II. Product Features

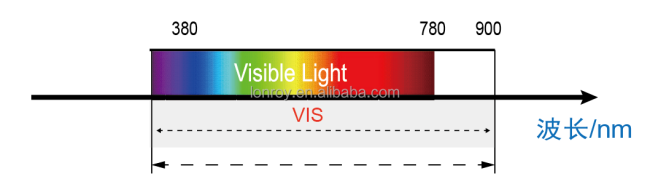

1. Utilizing high-intensity halogen light sources, the light source has excellent stability;

2. It adopts a highly integrated design of optics, mechanics and electronics, featuring a small size and easy operation.

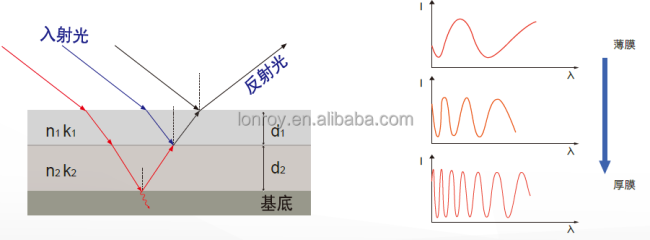

3. Based on the principle of interference of reflected light at the interface and the lower interface of the thin film layer, it is easy to analyze from a single layer to multiple layers.

III. Product Applications

The micro film thickness instrument is widely used for measuring various types of films such as protective films in various media, organic films, inorganic films, metal films, and coatings.

Microscopic Film Thickness Meter Coating Thickness Tester Microscopic Film Thickness Gauge

Technical Specification
