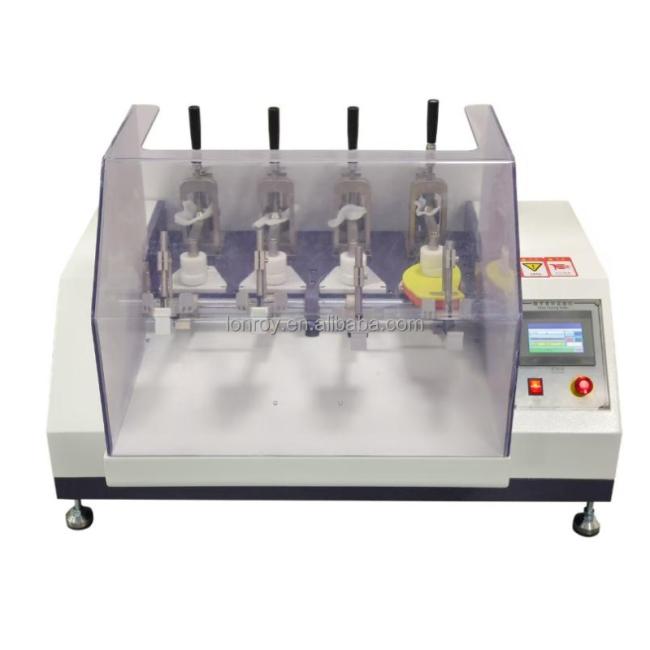

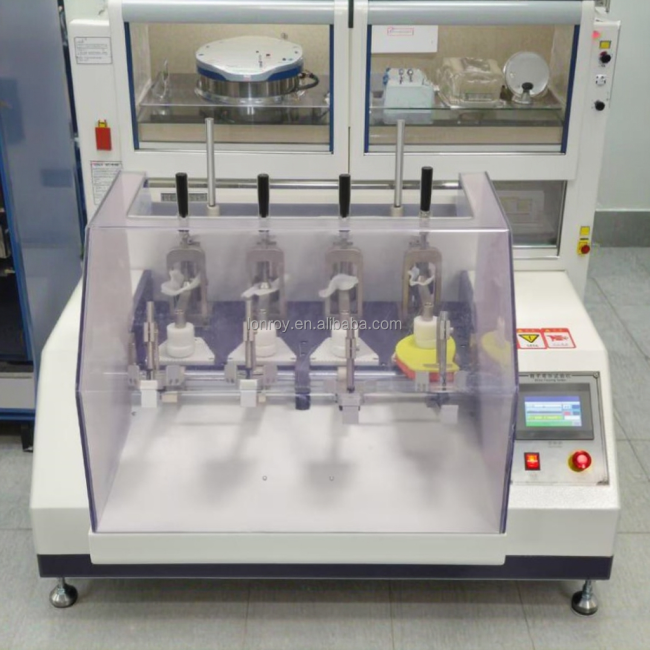

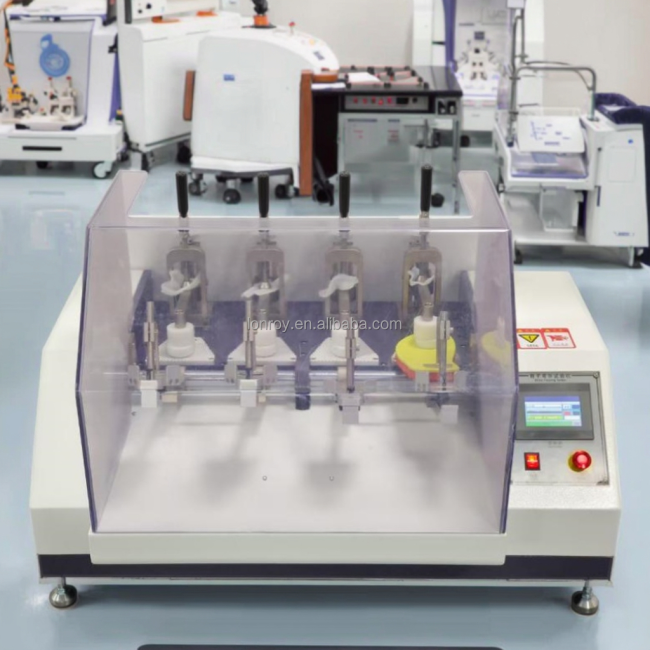

SATRA TM92 Shoe Flexure Resistance Tester Heel-Actuated Shoe Flexing Test Equipment Finished Shoe Flexure Testing Machine
SATRA TM92 Shoe Flexure Resistance Tester Heel-Actuated Shoe Flexing Test Equipment Finished Shoe Flexure Testing Machine
Instrument Introduction
The finished shoes are installed on the finished shoe flexure testing machine. The testing machine drives the finished shoe to flex at a flexure angle that matches the shoe shape and at a fixed rate. The flexure is repeated until the predetermined time is reached or the specified number of flexures is completed. Then, the damage condition of the flexure part of the tested finished shoes is observed to evaluate the flexure resistance performance of the tested finished shoes.
Reference Standards
Compliant with: SATRA-TM92 and other standards.
Accessories
1. 1 set of pressure pads, 1 Allen wrench, 1 power cord.
2. 1 user manual, 1 warranty card.
SATRA TM92 Shoe Flexure Resistance Tester Heel-Actuated Shoe Flexing Test Equipment Finished Shoe Flexure Testing Machine
Technical Specification
|
Simultaneous Testing Capacity |
Can test 4 finished shoes simultaneously |
|
Curvature Angle |
(5 to 80) degrees, Adjustable |
|
Torsion Resistance Rate |
(5 to 150) r/min, Adjustable (digital display) |
|
Allowable Sample Length |
150 to 400mm |
|
Volume |
(101x72x73) cm |
|
Motor Type |
Variable frequency motor |
|
Operating Power |
400W |
|
Equipment Weight |
Approximately 220kg |
|
Power Supply |
AC 220V |
