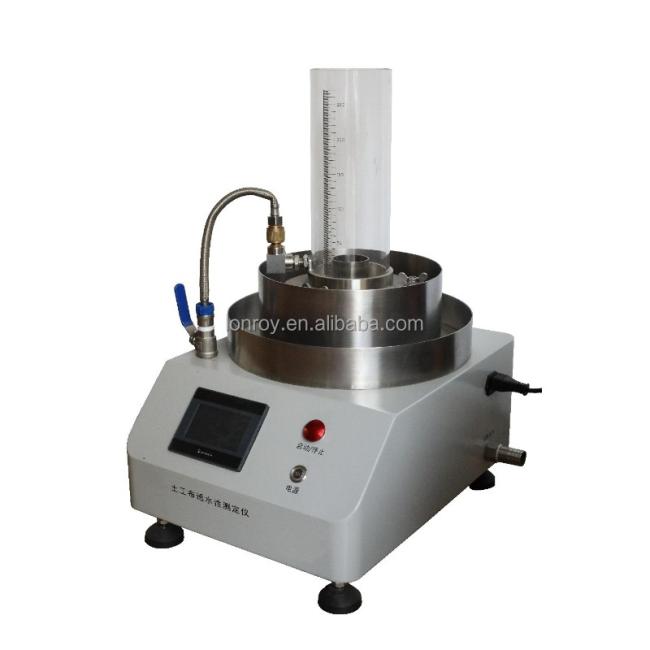

ISO 11058 ASTM D4716 High Precision Geotextile Hydraulic Conductivity Tester Geotextile Water Permeability Test Machine
ISO 11058 ASTM D4716 High Precision Geotextile Hydraulic Conductivity Tester Geotextile Water Permeability Test Machine
ISO 11058 ASTM D4716 High Precision Geotextile Hydraulic Conductivity Tester Geotextile Water Permeability Test Machine
Scope of Application
It is used for testing the vertical permeability performance of geotextiles and composite materials.
Relevant Standards
GB/T15789, JTG E50, SL/T235, ISO11058, ASTM D4716
ISO 11058 ASTM D4716 High Precision Geotextile Hydraulic Conductivity Tester Geotextile Water Permeability Test Machine
Technical Specification
|
Maximum water head pressure difference |
250mmH2O (2450Pa) |
|
Water level graduation value |
1mm |
|
Inner diameter of the clamping device |
(50±0.5)mm |
|
Applicable sample thickness |
≤20mm |
|
Time controller |
(0~99.99) seconds |
|
Graduated cylinder |
1000ml (graduation: 10ml) |
|
Water level graduation value |
1mm |
|
Thermometer range |
(0~50)℃ (accuracy: 0.1℃) |
|
Power supply |
AC220V±10%, 50Hz, 100W |
|
Overall dimensions |
(400×500×850)mm |
|
Weight |
25kg |
