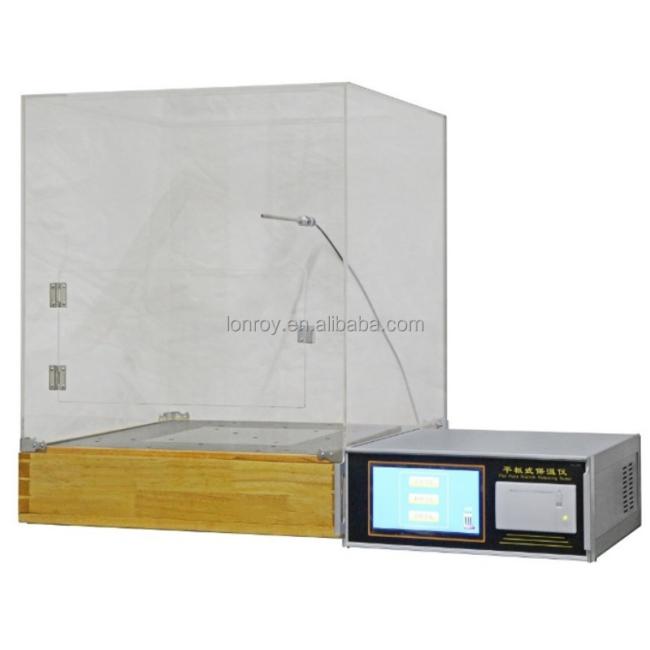

JIS L1096 ASTM D1518 Warmth Retaining and Thermal Resistance Tester Warmth Retaining Efficiency Test Machine
JIS L1096 ASTM D1518 Warmth Retaining and Thermal Resistance Tester Warmth Retaining Efficiency Test Machine
Usage
To evaluate the warmth retaining efficiency of textile cloth, fiber complex cotton pad and others.
Testing standards
JIS L-1096, ASTM D1518, GB/T11048
JIS L1096 ASTM D1518 Warmth Retaining and Thermal Resistance Tester Warmth Retaining Efficiency Test Machine
Technical Specification
|
Specimen Size |
300 × 300 mm |
|
Test Plate (Heat Plate) Size |
250 × 250 mm |
|
Material of Test Plate |
Aluminum |
|
Temperature Controller |
LED display (Minimum display: 0.1℃), 3 pieces mounted |
|
Temperature Sensor |
K-type thermocouple |
|
Temperature Range |
20 - 50℃ |
|
Measuring Timer |
Built-in LED timer (Maximum: 99 min; Minimum display: 0.1 sec) |
|
Display of Measuring Values |
Warmth Retaining Ratio (%), Coefficient of Specimen Warmth Conductivity (W/m²·℃), CLO Value (CLO) |
|
Printer |
Thermal micro-printer |
|
Test Plate Stand Dimensions (W × D × H) |
510 × 510 × 640 mm |
|
Measurement Control Box Dimensions (W × D × H) |
300 × 340 × 150 mm |
|
Power Supply |
220V, 50Hz or 110V, 60Hz |
|
Weight |
30 Kg |
