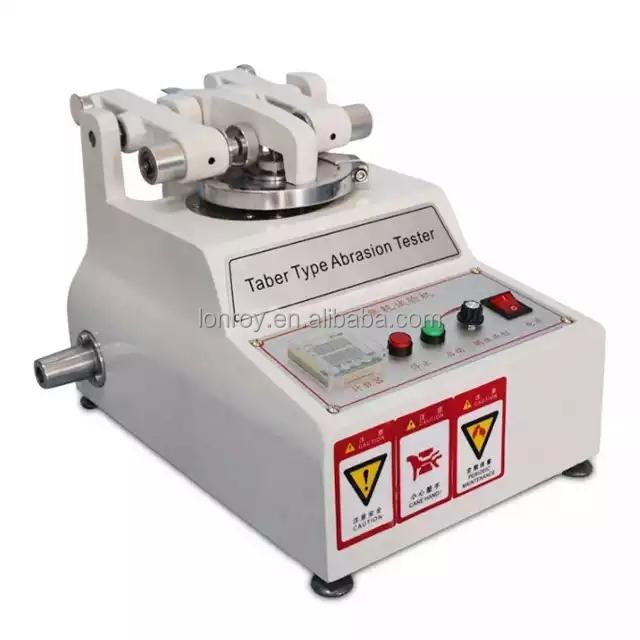

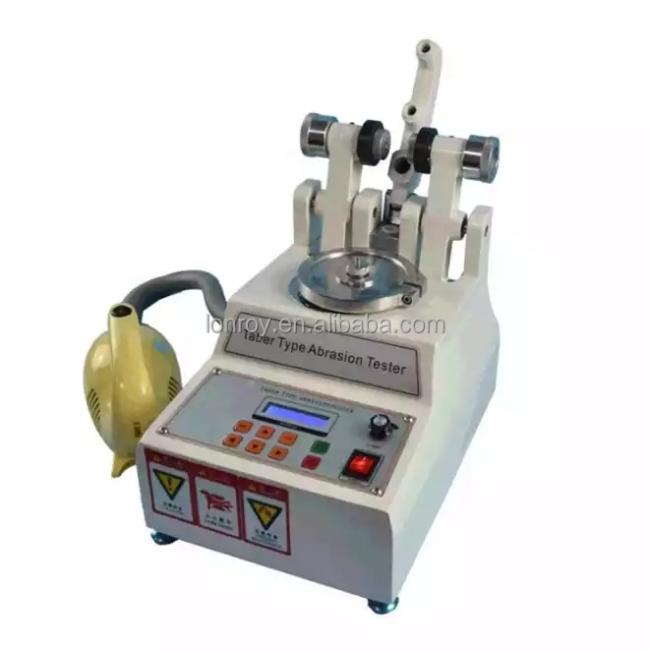

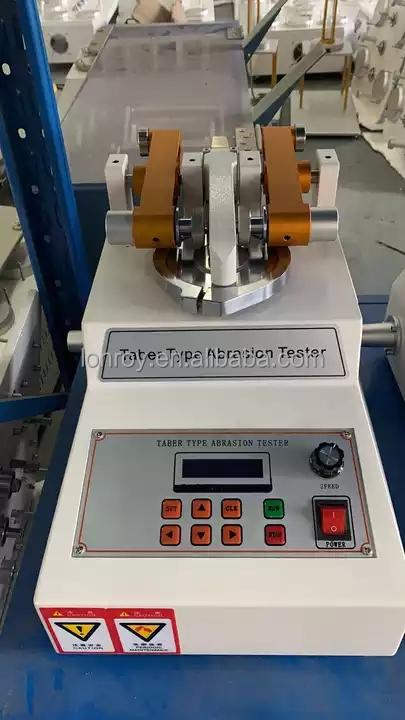

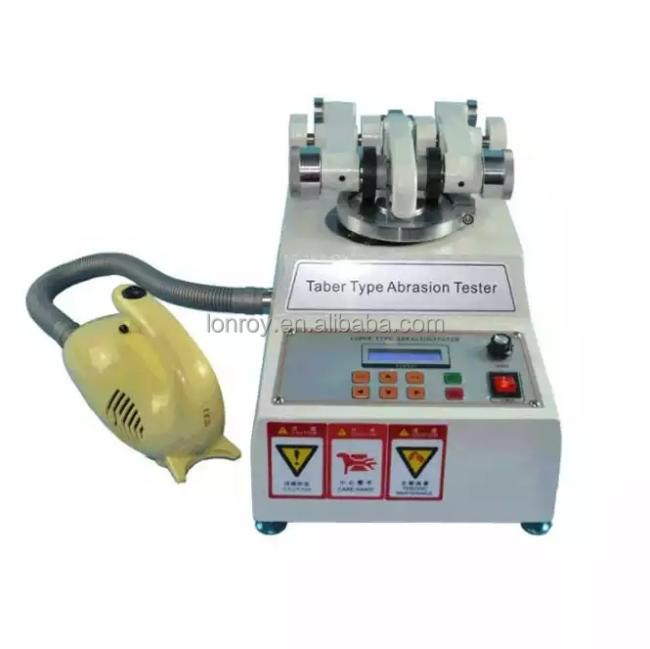

Taber wheel cs17 cs10 h18 ASTM D4060 taber abrasion tester price for Rubber Leather Textile Plastic
Uses
This machine is used to do the test of wear-resistant in surface, leather, cloth, paint, paper, flooring, plywood, glass and natural rubber,concrete and ceramics. The method is using the standard knife cutting the specimen, and then using the regulated models of grinding wheel with loading weight to be abrased. Remove the specimen after rotation to reach a centain number, and then observe the condition of the specimen or compare the weight with the previous materials.
Test Standard:ASTM D4060/D4157/D1044, JIS K5400/K7024, CNS 8540, BS EN 660-2
Taber wheel cs17 cs10 h18 ASTM D4060 taber abrasion tester price for Rubber Leather Textile Plastic
Specifications
|
Specimen dimension |
φ110mm φ6mm |
|
Grinding wheel |
φ2″(MAX .45mm)1/2″(W) |
|
Center space of wheel |
63.5mm |
|
Distance between wheel and test plate |
37~38mm |
|
Rotating speed |
60rpm 72rpm |
|
Load |
250g,500g,750g,1000g |
|
Timer |
LCD,0~999999 |
|
Distance between sample and dust collector |
3mm |
|
Dimension |
53×32×31cm
|
|
Weight |
18kg, Excluding dust collector |
|
Power |
1phase,AC220V,50HZ |
|
|
Imported grinding wheel 1 pair |
