10 Sets of Thermostatic Tape Retention Tester/High Temperature Viscosity Tester/Oven Adhesion Tester Film Testing Film T
10 Sets of Thermostatic Tape Retention Tester/High Temperature Viscosity Tester/Oven Adhesion Tester Film Testing Film T

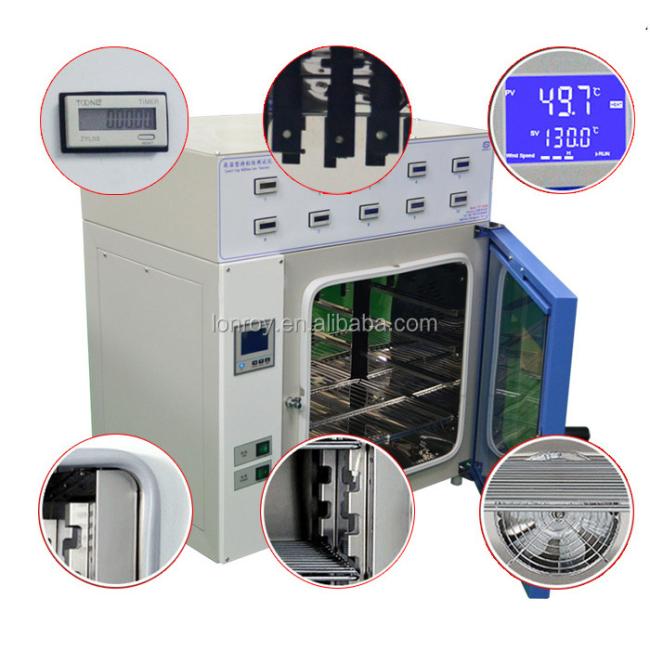

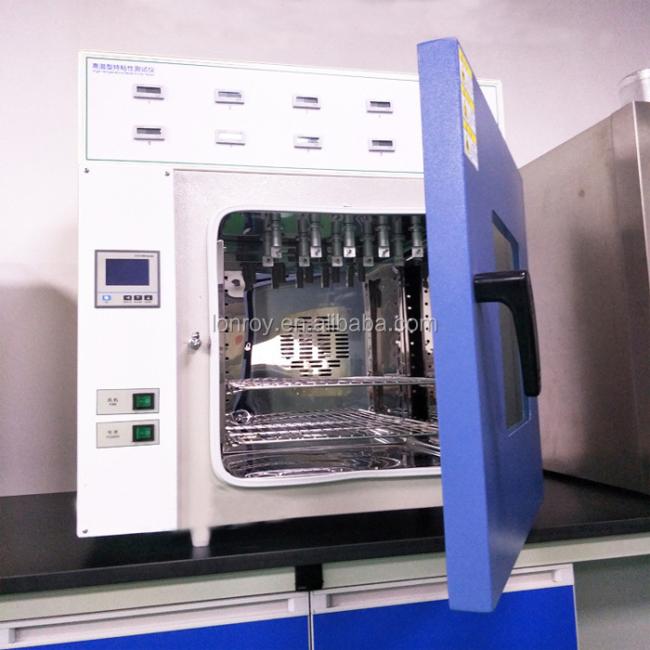

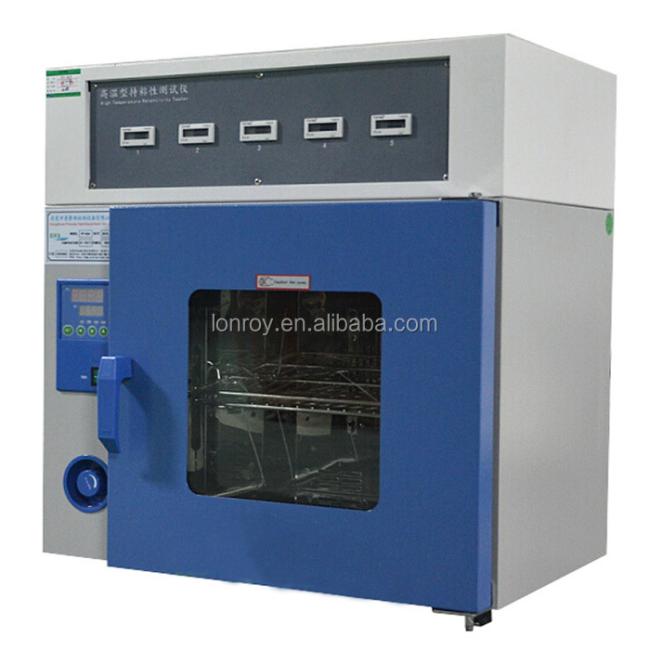

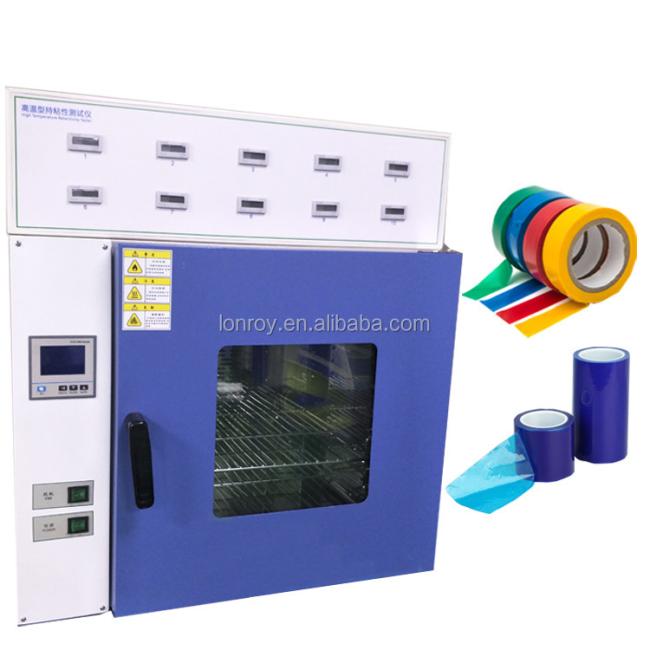

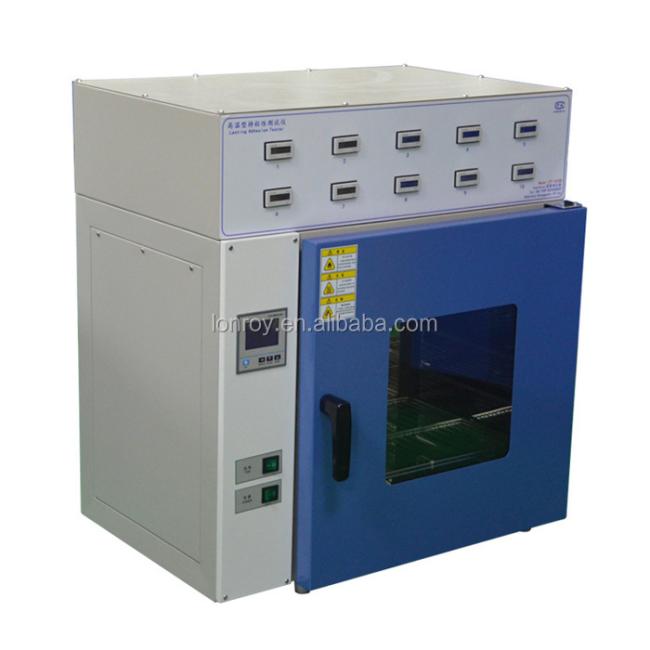

10 sets of thermostatic tape retention tester/High temperature viscosity tester/Oven adhesion tester
High temperature viscosity tester Product Description:
It is designed and manufactured in accordance with GB 4851 (test method for the stickiness of pressure-sensitive adhesive tape) and the standard method for the stickiness determination of paste, which is suitable for the stickiness test of pressure-sensitive adhesive tape, self-adhesive, paste, hot sol and other products.
Test method of high temperature sticking-Tester: stick the adhesive tape on the test board and hang the standard load at the lower end. After a period of time, measure the distance of the adhesive tape sliding or the adhesive time to evaluate the durability of adhesive tape.
10 sets of thermostatic tape retention tester/High temperature viscosity tester/Oven adhesion tester
Main technical parameters of high temperature viscosity tester:
|
Standard press roller |
2000g±50g |
|
with loading pad weight |
Just 1000g±10g |
|
Test plate |
60 (L) mm×40 (B) mm×1.5 (D) mm |
|
Determination of sets (timed separately) |
5 or 10 sets
|
|
Automatic timer |
0 ~ 999,999 minutes or seconds can be switched |
|
Temperature control |
Normal temperature ~ 200℃, PID control |
|
Temperature display |
0.1 ℃ |
|
Heating mode |
hot air circulation |
|
Safety device |
equipped with automatic power off protection facilities for overtemperature and electric overload |
|
Material |
internal SUS #304 stainless steel plate, external advanced steel paint treatment |
|
Inner dimensions |
(W*D*H) 500*350* 450mm |
|
Volume product |
(W*D*H) 1020*410*860 mm |
|
Weight |
56 kg |
|
Electric source |
1,AC220V, 15A |
