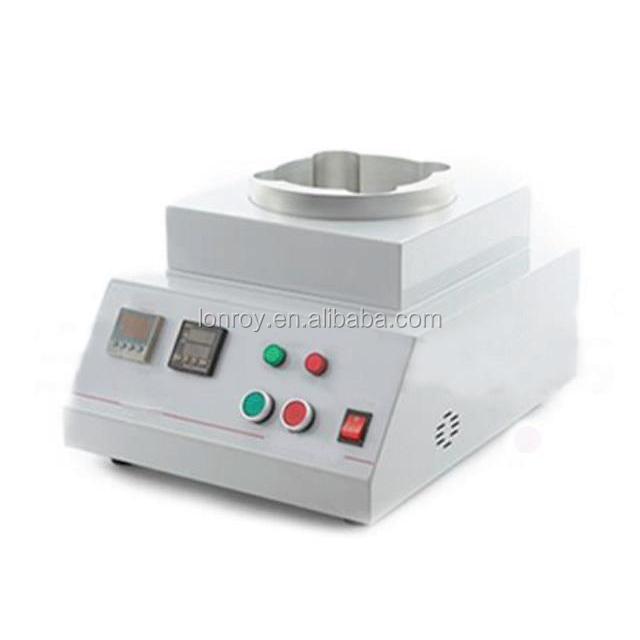

ASTM D2732,ISO 14616, DIN 53369 Heat Shrinkage Tester RSY-03

Heat shrinkage tester RSY-03 is professionally applicable to the determination of heat shrinking performance of various film, composite film packaging, coated paper and other heat shrinkable materials.

STANDARD: ASTM D2732,ISO 14616, DIN 53369

                    PRODUCT  APPLICATION

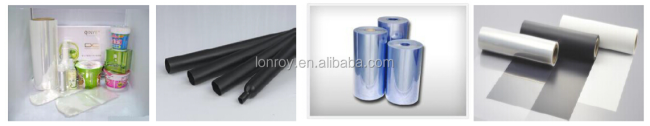

Heat shrinkage tester is for PVC Films, PE Films, POF Films, OPS Films, PET Films

ASTM D2732,ISO 14616, DIN 53369 Heat Shrinkage Tester RSY-03

 TECHNICAL FEATURE
Heat shrinkage tester is controlled by micro-computer, PVC operation panel, and menu interface
With the humanization design, have a simple and quick operation
High precision circuit processing makes test accuracy and reliable

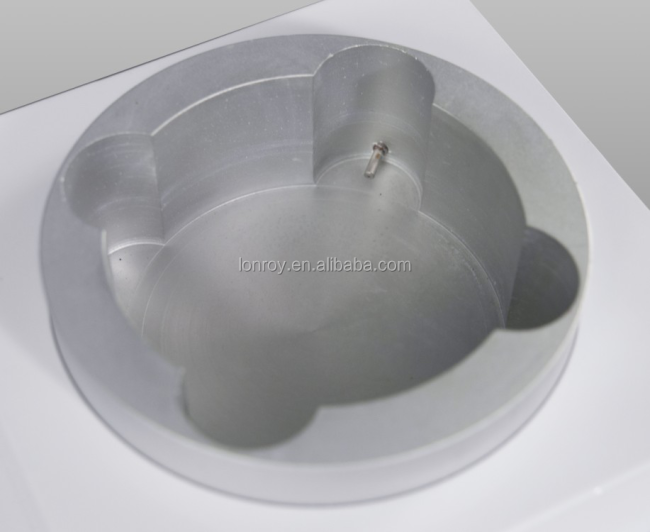

The instrument is heated through nonvolatile fluid medium, widening the heating range
Digital P.I.D. temperature control technology ensures the preset temperature to be reached rapidly without any fluctuation
Automatic timer function to efficiently guarantee the accuracy of test data
Standard clamp wire mesh ensures temperature stability without interaction
Have a compact structure, which can be transported easily

ASTM D2732,ISO 14616, DIN 53369 Heat Shrinkage Tester RSY-03

TECHNICAL PRINCIPLE
The temperature of thermal oil in the heating bath is controlled accurately. The specimen is cut by suitable size and put into the sink for some time.
Take out the sample according to the given time, let cool to temperature and measured. The thermal shrinking rate can be obtained.
