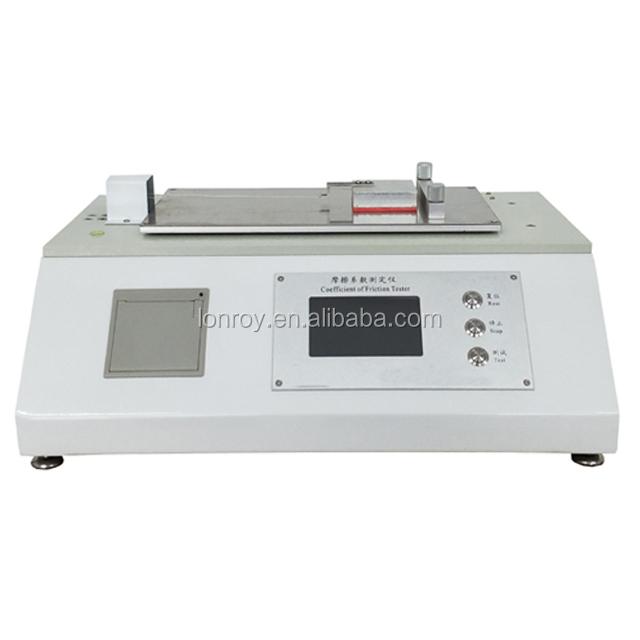

ASTM D1894 ISO 8295 Plastic Film COF Testing Machine, Coefficient of Friction Tester
ASTM D1894 ISO8295 Plastic Film COF Testing Machine/ coefficient of friction tester
Use
Friction coefficient tester is mainly used to measure the static and dynamic friction coefficients of plastic film and thin film (or other similar materials).By measuring the smoothness of the material, the opening of the packaging bag and the packaging speed of the packaging machine can be controlled and adjusted to meet the product requirements.
ASTM D1894 ISO8295 Plastic Film COF Testing Machine/ coefficient of friction tester
Test Standard
GB10006 ASTM D1894 ISO8295
Characteristics:
1.Full digital automatic system, touch screen display.The test process tracking shows the friction force, and the test results show the coefficient of dynamic and static friction.
2.Connect to the computer.When connected to a computer, in addition to automatically memory and store the results, can also show the friction curve changes and save.
3.Using high precision force sensor, the measurement accuracy is 1 grade.
4.Specially designed drive system, smooth movement, more accurate test results.
ASTM D1894 ISO8295 Plastic Film COF Testing Machine/ coefficient of friction tester
Technical Parameters:
|
Sample thickness |
≤0.2mm |
|
Slider size (length × width) |
63×63mm |
|
Slider mass |
200±2g |
|
Test table size |
170×336mm |
|
Measurement accuracy |
±2% |
|
Slider movement speed |
(0-150) mm/min (adjustable) |
|
Slider stroke |
0-150mm (adjustable) |
|
Force range |
0-5N |
|
External dimensions |
500×335×220 mm |
|
Power supply |
AC220V, 50Hz |
