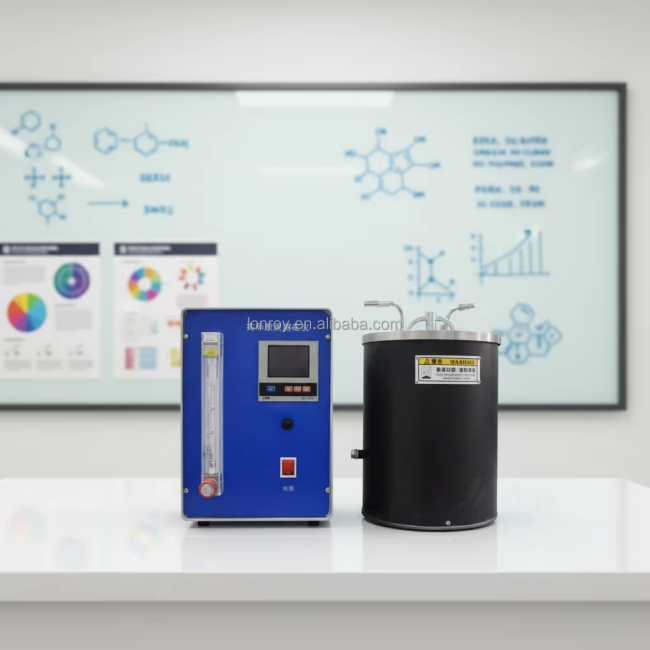

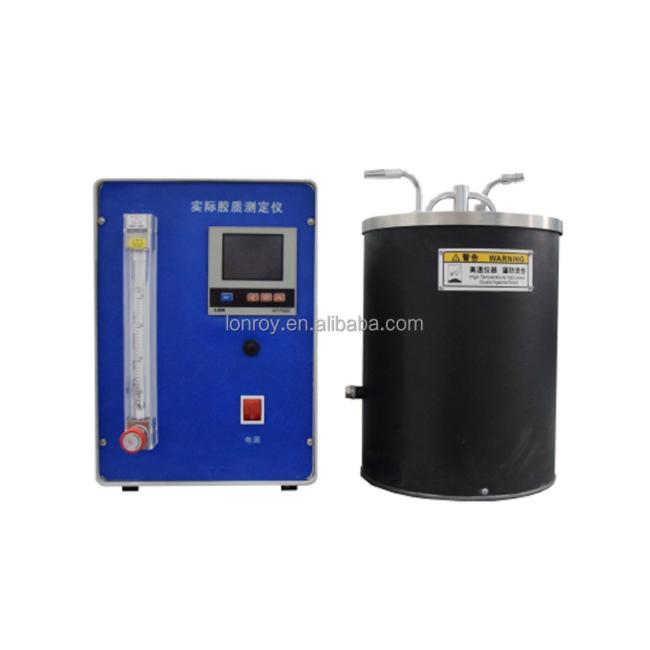

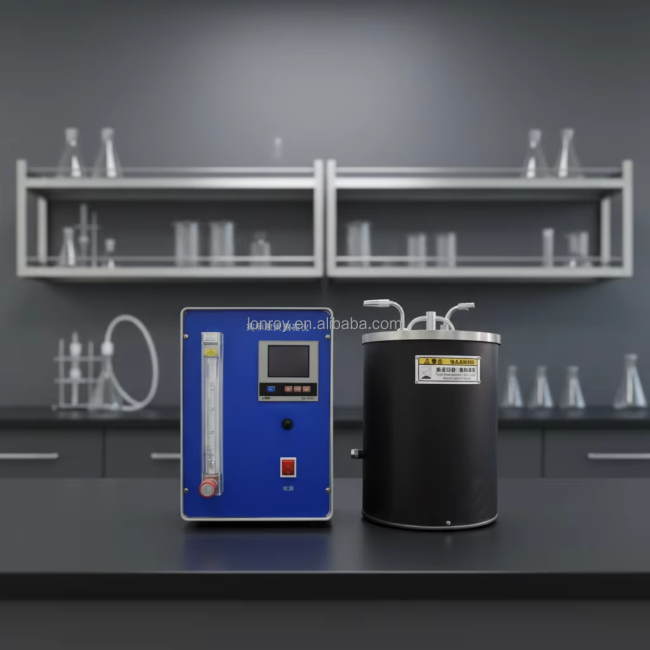

Product Introduction
The actual gum content tester is designed and manufactured in accordance with the requirements stipulated in GB/T 509 "Method for Determination of Actual Gum Content of Engine Fuels". This instrument is suitable for determining the tendency of fuel (gasoline, kerosene, diesel) to form gum when used in engines. It is equipped with a dedicated oil-free silent air compressor and is widely used in departments such as petroleum, chemical industry, power, commodity inspection, quality inspection, universities, and research institutions.
Functional Features
1. The design of the instrument fully complies with the requirements of the GB/T 509 standard.
2. The air supply device is composed of an air compressor, an air filter and a flow meter.
3. Heated by an electric heater with a power of 1000W, for direct heating.
4. The high-temperature oil bath and the control box are separated, with a well-designed layout; the oil bath is made of stainless steel, which is durable and long-lasting.
Engine Fuel Actual Gum Analyzer Laboratory Fuels Actual Gum Tester Gasoline Actual Gum Measuring Machine
Technical Specification
|
Adaptation Standard |
GB/T 509 |
|
Temperature Range |
Room temperature to 250℃ |
|
Temperature Control Accuracy |
±3℃ |
|
Bathtub Medium |
Oil bath (flash point above 310℃) |
|
Oil Bath Capacity |
Approximately 5 liters (The oil will expand when heated, so a reserve should be left to ensure it doesn't overflow after heating) |
|
Temperature Control Experiment |
Kerosene: 180℃ ± 3℃; Diesel: 250℃ ± 3℃ |
|
Input Power |
≤1200W |
|
Environmental Temperature |
5℃ to 45℃ |
|
Relative Humidity |
10% to 80% Rh |
|
Power Supply Voltage |
220V ± 10% 50Hz |
|
Dimensions of the Shape |
Control box: 280×260×380mm; Oil bath: 250×450mm |
