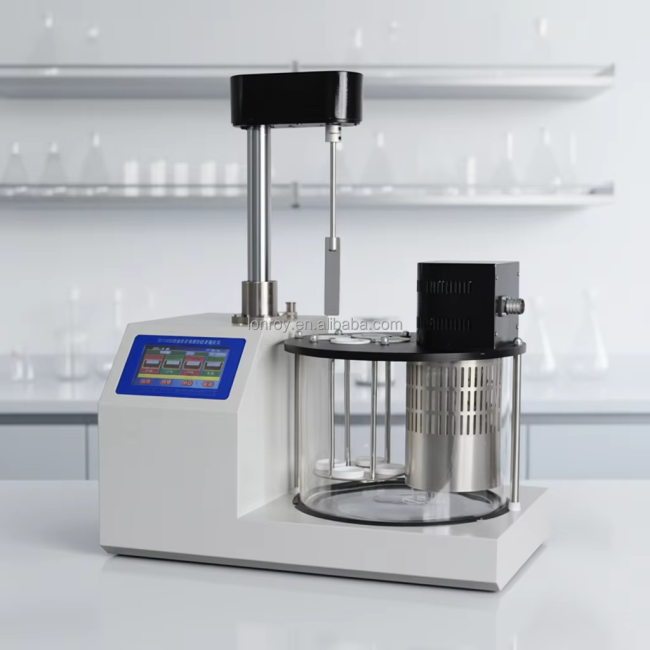

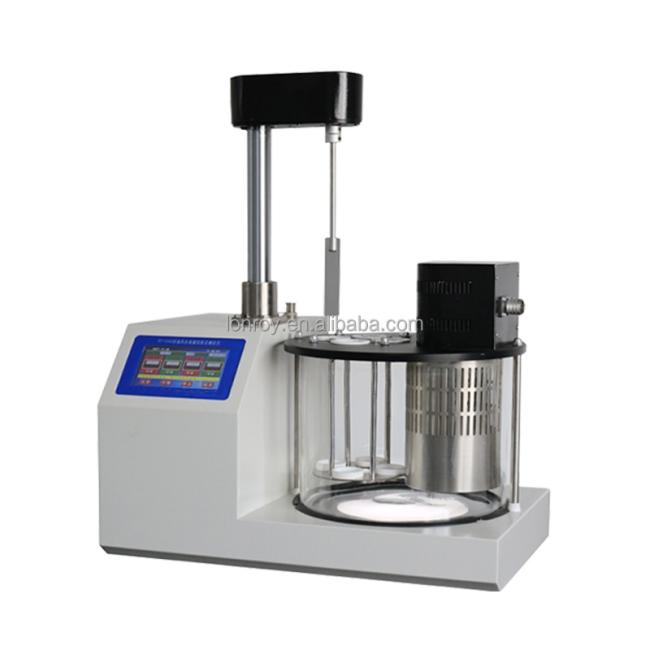

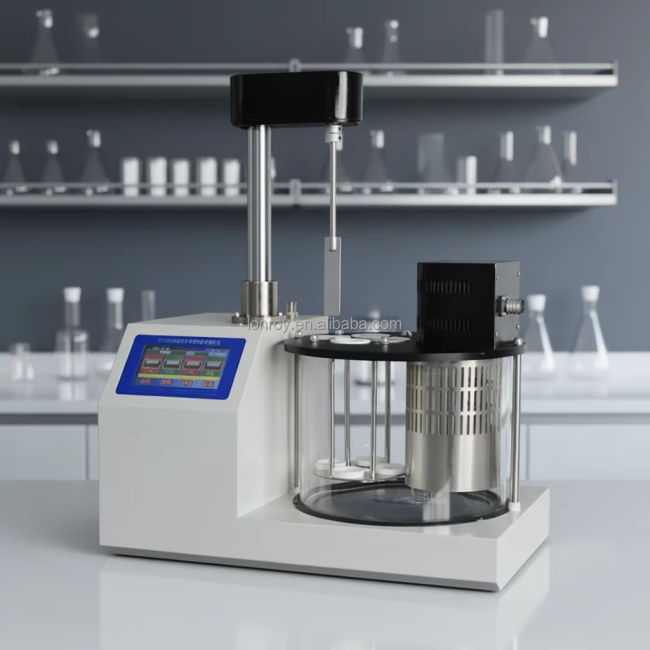

ASTM D1401 Petroleum Synthetic Liquid Anti-emulsification Tester High-definition Color Touch Screen Demulsibility Test Machine

Product Introduction

The petroleum and synthetic liquid anti-emulsification tester is developed based on GB/T 7305-2003 "Method for Measuring Water Separability of Petroleum and Synthetic Liquids" and GB/T 7605-2008 "Method for Measuring Demulsification Degree of Running Steam Turbine Oil", as well as ASTM D1401. The testing principle of the instrument is to add 40 ml of sample and 40 ml of distilled water to a graduated cylinder at a constant temperature, stir for 5 minutes to form an emulsion, and then measure the time required for the emulsion to separate (i.e., when the volume of the emulsion layer is no more than 3 ml). After 30 minutes of standing, if the emulsion has not completely separated or the emulsion layer has not reduced to 3 ml or less, record the volumes of the oil layer, water layer and emulsion layer at this time. It is applicable for measuring the ability of petroleum products to separate from water and is widely used in power, petroleum, chemical, commodity inspection, universities and research departments.

Functional Features

1. 5-inch high-definition color touch screen, with clear interface display and easy operation

2. Microcomputer control and PID self-tuning temperature control technology; high temperature control accuracy and reliable performance

3. Parameters such as temperature control values and fine-tuned temperature values can be set.

4. At the same time, four samples were maintained at a constant temperature, and the separation of the four samples was carried out, thereby improving the work efficiency.

5. The instrument automatically controls temperature, raises/lowers the stirring paddle, performs stirring, and counts time.

6. Mechanical transmission has no noise and is stable and reliable.

7. It can display in either full Chinese or full English interface (optional)

ASTM D1401 Petroleum Synthetic Liquid Anti-emulsification Tester High-definition Color Touch Screen Demulsibility Test Machine

Technical Specification
