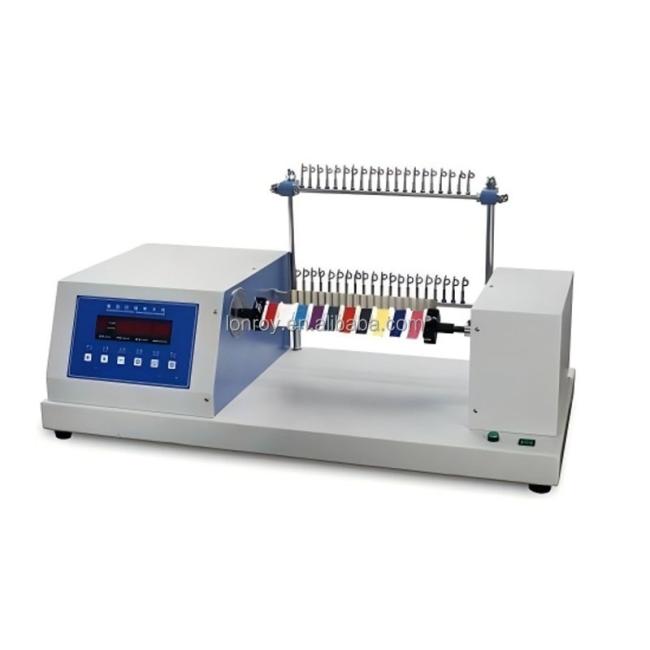

ISO 2061 BS 2085 Yarn Sample Card Machine ASTM D1422 FZ/T 10001 Yarn Sample Card Winder Yarns Twist Irregularity Tester
ISO 2061 BS 2085 Yarn Sample Card Machine ASTM D1422 FZ/T 10001 Yarn Sample Card Winder Yarns Twist Irregularity Tester
ISO 2061 BS 2085 Yarn Sample Card Machine ASTM D1422 FZ/T 10001 Yarn Sample Card Winder Yarns Twist Irregularity Tester
Application
Used to determine the twist and twist irregularity of various yarns.
Instrument Features
1. Microcomputer control with LCD screen display, supporting Chinese and English menu switching for user-friendly operation.
2. Features power-off data saving function and prints reports in Chinese or English.
3. High-precision rolling bearing supported oscillating plate assembly ensures sensitive and reliable rotation.
Relevant Standards
GB/T 2543.1; GB/T 2543.2; GB/T 14345; FZ/T 10001; ISO 2061; BS 2085; ASTM D1422/1423; JIS L1095 and other relevant standards.
ISO 2061 BS 2085 Yarn Sample Card Machine ASTM D1422 FZ/T 10001 Yarn Sample Card Winder Yarns Twist Irregularity Tester
Technical Specification
|
Test Methods |
Direct counting method; Single untwist-retwist method; Double untwist-retwist method; Triple untwist-retwist method |
|
Test Length |
25, 50, 100, 200, 250, 500 (mm) |
|
Measurement Range |
1–9999.9 twists |
|
Test Speed |
100–2000 r/min (digitally set) |
|
Dimensions |
W1030 × D250 × H200 mm |
|
Power Supply |
AC 220 V±10%; 20 W |
|
Printer Configuration |
24-pin dot matrix printer |
|
Weight |
18 kg |
