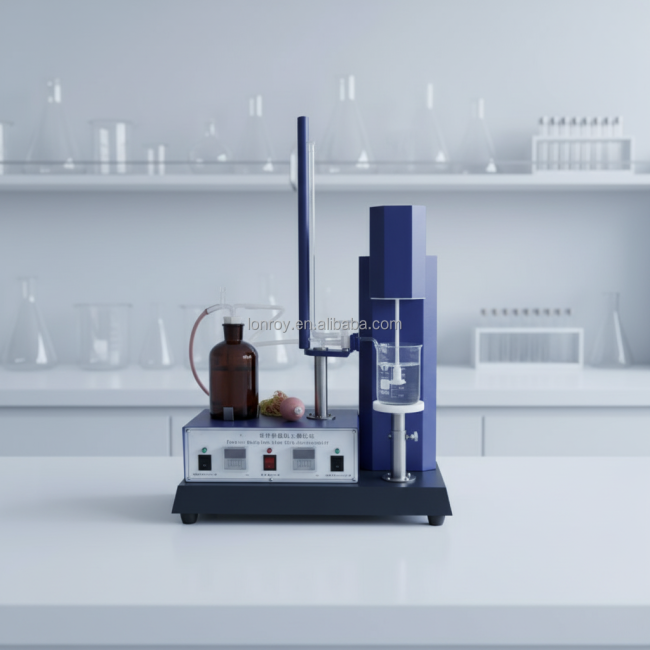

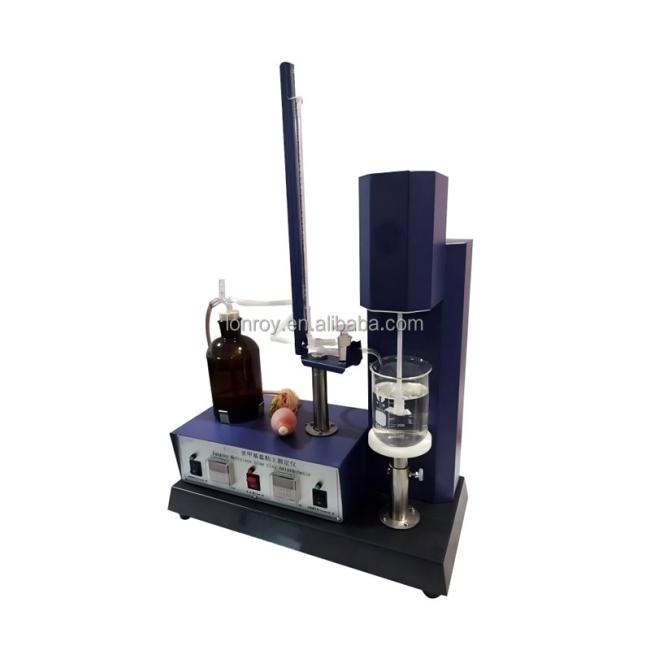

Methylene Blue Clay Analyzer Laboratory Molding Sand Effective Bentonite Content Test Machine Methylene Blue Clay Tester
Methylene Blue Clay Analyzer Laboratory Molding Sand Effective Bentonite Content Test Machine Methylene Blue Clay Tester
Product Introduction
Used for determining the methylene blue adsorption capacity of bentonite and the effective bentonite content in molding sand. Includes sample preparation device and test measurement device. Utilizes ultrasonic dispersion and mechanical stirring to ensure sufficient contact between the clay sample and methylene blue dye, and uses qualitative filter paper for drop testing. Requires accurate titration, no dripping, and simple operation.
PMethylene Blue Clay Analyzer Laboratory Molding Sand Effective Bentonite Content Test Machine Methylene Blue Clay Tester
Technical Specification
|
Burette capacity |
50 ml |
|
Burette graduation accuracy |
± 1% |
|
Timer control range |
0–15 min |
|
Stirring speed |
1400 r.p.m. |
|
Ultrasonic disperser |
40±2 kHz |
|
Cleaning tank dimensions (L*W*H) |
150*140*100 mm |
