Bushing Torsional Fatigue Testing Machine Automotive Elastic Bushings Durability Tester Elastic Bushing Fatigue Test Equipment
Bushing Torsional Fatigue Testing Machine Automotive Elastic Bushings Durability Tester Elastic Bushing Fatigue Test Equipment
Overview

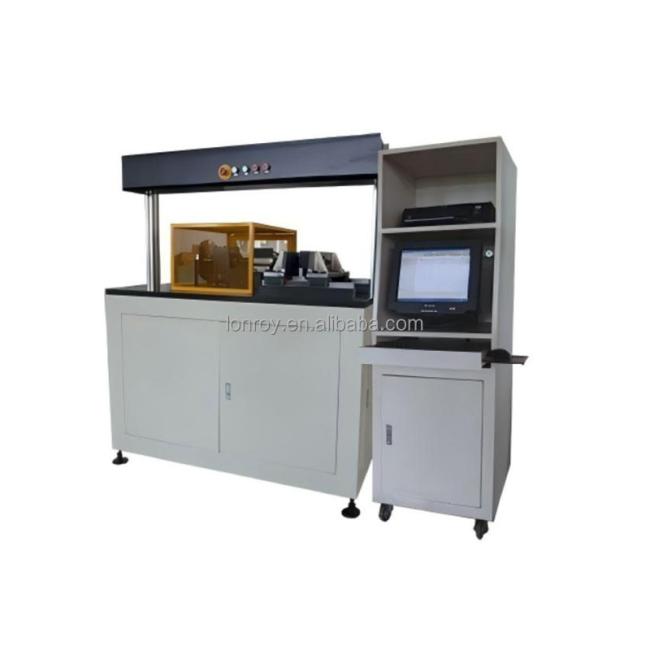

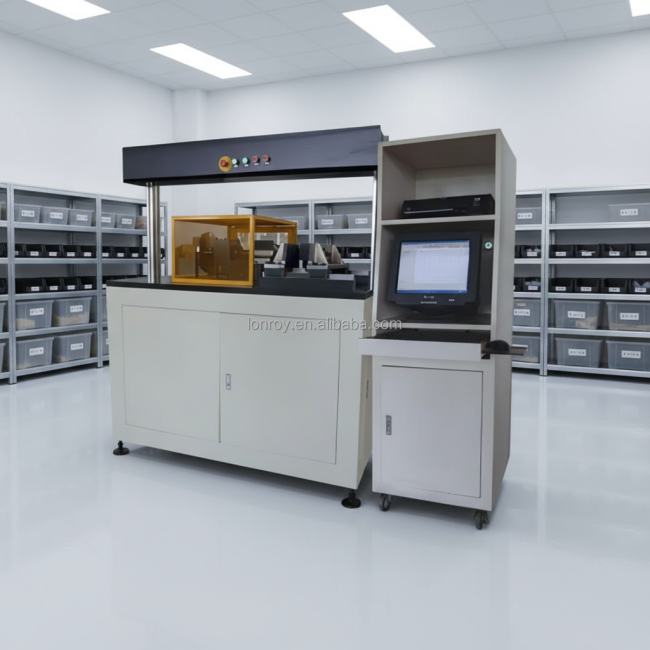

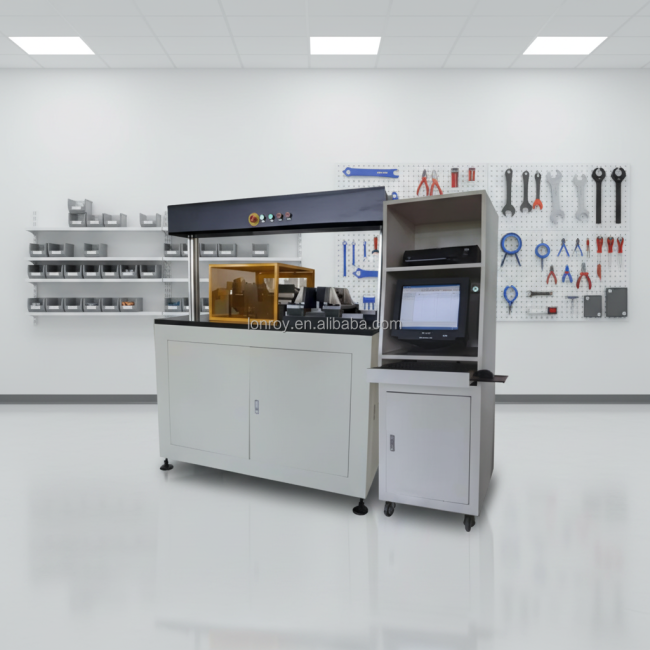

The bushing torsional fatigue testing machine is used to simulate the durability and fatigue testing of automotive elastic bushings under torsional and radial pressure. It is a new type of elastic bushing torsional fatigue testing machine. Controlled by computer software, it can perform both fatigue and static stiffness tests. It is suitable for testing the fatigue durability performance of various automotive bushings in the rubber, automotive, and research industries. It features an aesthetically pleasing design, convenient operation, and high reliability.
Bushing Torsional Fatigue Testing Machine Automotive Elastic Bushings Durability Tester Elastic Bushing Fatigue Test Equipment
Technical Specification
|
Maximum Normal Pressure |
5000 N |
|
Maximum Torque |
50 N·m |
|
Maximum Torsional Angle |
±15° |
|
Torsional Speed |
0–90 cycles/minute |
|
Motor Power |
0.4 kW (may vary depending on material strength) |
|
Set Test Cycles |
0–9999999 cycles |
|
Power Supply Voltage |
AC 220 V±10% 50 Hz 1 kW |
|
Dimensions |
1675 mm × 820 mm × 1660 mm |
