Oil Seal Mud and Water Property Testing Machine Tester Oil Seal Mud Water Resistance Test Equipment
Overview

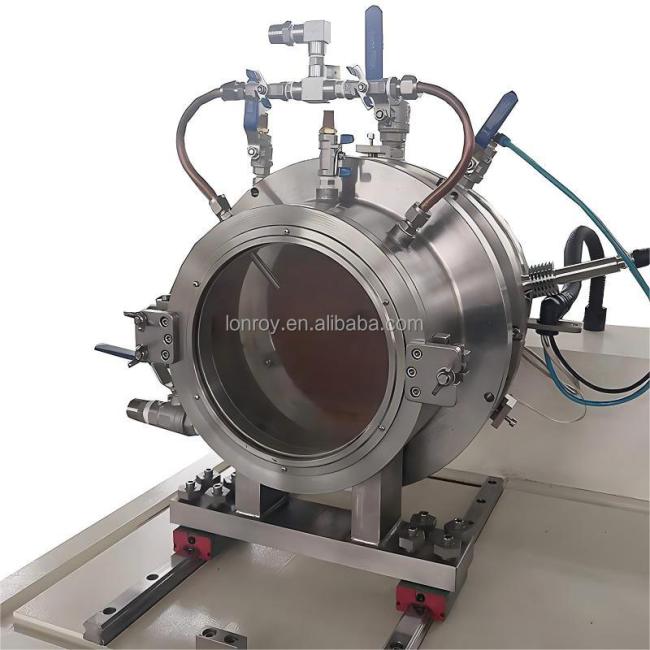

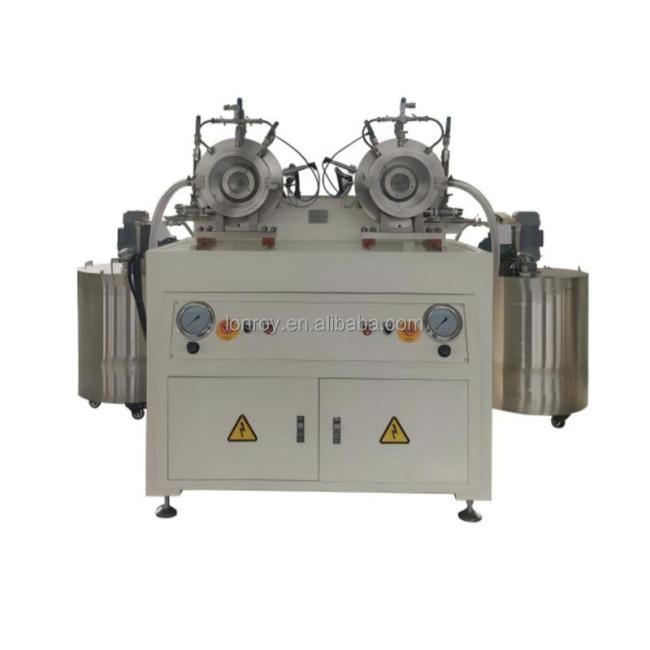

The oil seal mud and water performance testing machine is suitable for testing and researching the sealing performance of various rotary oil seals. It can test the sealing performance of oil seals against oil fluid alone, or simultaneously test the sealing performance of oil seals against both oil fluid and mud and water, shortening the testing cycle and reducing testing costs. The oil seal is installed on the testing machine, and the main shaft rotates at a certain speed. After a certain period of operation, the machine observes whether the oil seal leaks and the degree of damage to the oil seal lip. The test shaft can rotate in both forward and reverse directions.
This machine has a reasonable structure, novel design, high degree of automation, computer control, and convenient operation.
BOil Seal Mud and Water Property Testing Machine Tester Oil Seal Mud Water Resistance Test Equipment
Technical Specification
|
Main shaft speed |
Infinitely variable speed, range 100 r/min~6000 r/min |
|
Main shaft runout error |
Less than ±0.03 mm |
|
Offset adjustment range |
0~1 mm |
|
Testable oil seal shaft bore range (single-lip oil seal) |
Φ7~200 mm |
|
Motor power |
5.5 kW×2 |
|
Water pump |
0.37 kW×2 |
|
Heater |
2 kW×2 |
|
Pressure range |
0~0.03 MPa |
|
Temperature range |
Test drum: Room temperature~120℃ |
|
Mud and water tank |
Room temperature~40℃ |
|
Power supply |
AC380V three-phase four-wire system (neutral wire required) ±10% 50Hz |
