NDIR Non-Dispersive Infrared Gas Analyzer High Sensitivity LCD Touch Screen Total Hydrocarbons Content Tester
NDIR Non-Dispersive Infrared Gas Analyzer High Sensitivity LCD Touch Screen Total Hydrocarbons Content Tester
Product Introduction

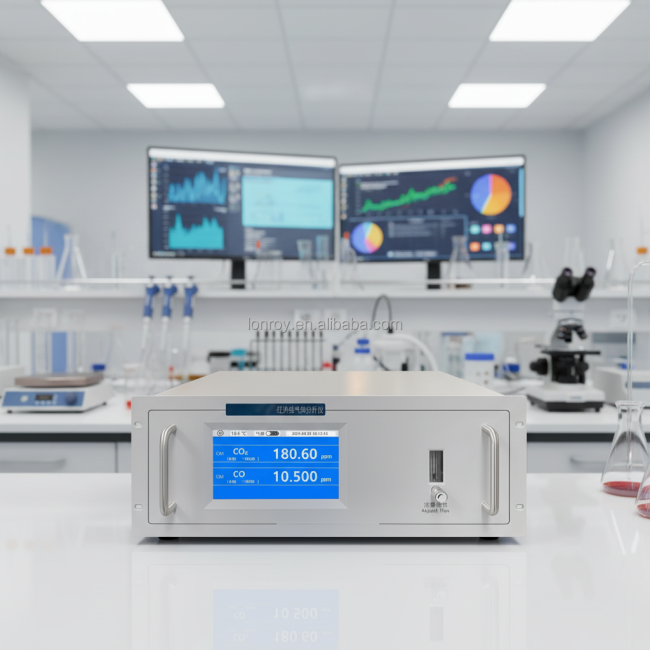

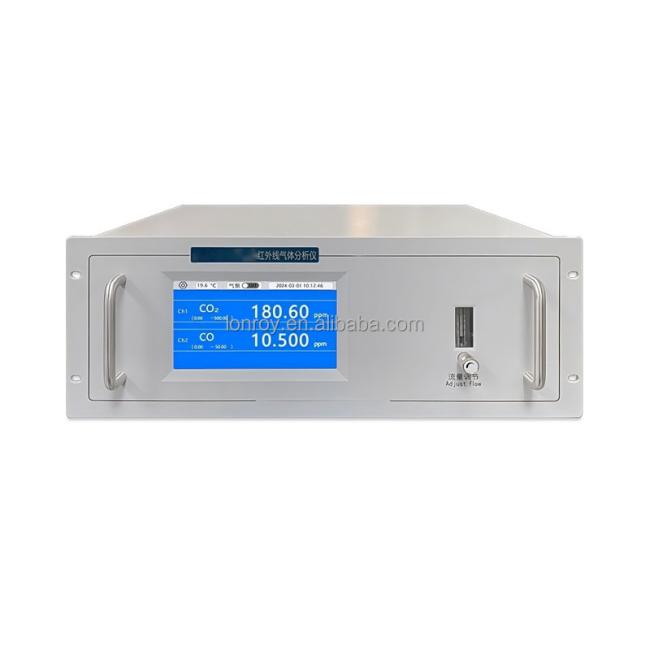

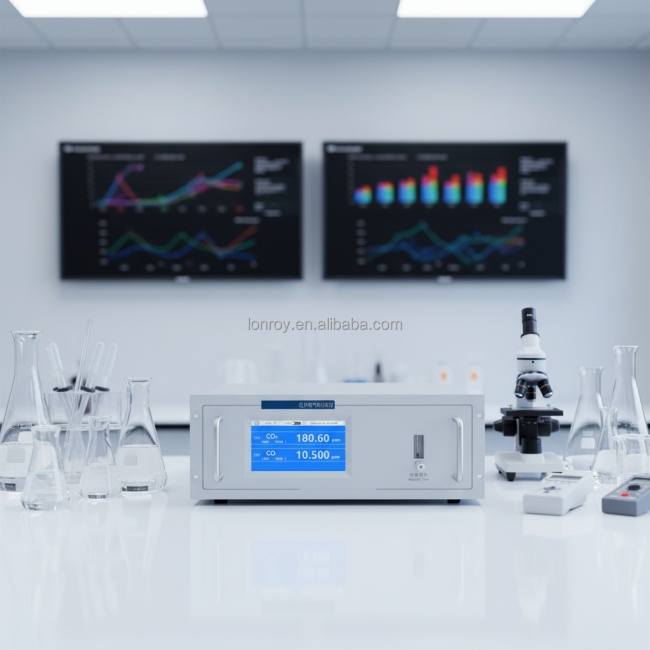

The LR-G104 infrared gas analyzer is an intelligent industrial online analyzer developed using the NDIR non-dispersive infrared principle combined with new microcomputer technology. The instrument is suitable for use in various non-explosion-proof environments and can online analyze and monitor the content of total hydrocarbons, CO, CO2, CH4, and other gases from ppm levels to 99.9%.
The instrument features a 7-inch LCD touch screen, upper and lower limit alarms, and digital and analog outputs. The measurement range can be customized according to customer requirements and working conditions, providing a cost-effective solution.
Typical Application Areas
Petrochemical, steel and metallurgy, power generation, cement, air separation, chemical, pharmaceutical, bio-fermentation, building materials, new materials, and other industries; including but not limited to online analysis and monitoring of CO and CO2 gas content in combustion processes, catalytic cracking reactions, various reaction vessels, storage tanks, process pipelines, combustion furnaces, and exhaust gases.
Instrument Features
> 7-inch LCD touch screen, simple and convenient operation, selectable display units: %, ppm, mg/m³
> Automatic real-time recording of measurement data (10,000 entries), data displayed in list or curve format
> Arbitrarily settable control points, passive relay output, standard 4-20mA and RS485
> Rich interface options, connectable to DCS and for communication with computers
> Gas path and program design with sensor sealed protection, stable overall performance
> High cost-effectiveness; the core sensor uses imported products to ensure accurate analysis results, while other components use domestic parts of comparable quality to imported products, significantly reducing the overall price compared to imported instruments.
HNDIR Non-Dispersive Infrared Gas Analyzer High Sensitivity LCD Touch Screen Total Hydrocarbons Content Tester
Technical Specification
|
Measurable Gases |
CO, CO2, CH4, CnHm (other gases require further discussion) |
|
Analysis Principle |
Non-dispersive infrared |
|
Measurement Range |
CO: 0-10/100/1000/2000 ppm, 0-2%, 0-5%, 0-10%, 0-20%, 0-50%, 0-100% CO2: 0-10/100/1000/2000 ppm, 0-2%, 0-5%, 0-10%, 0-20%, 0-50%, 0-100% CH4: 0-10/100/1000/2000 ppm, 0-5%, 0-20%, 0-100% Note: Other ranges and gases can be customized according to customer requirements |
|
Accuracy |
≤±1% F.S |
|
Repeatability |
≤±0.5% F.S |
|
Stability |
≤±0.5% F.S/7d |
|
Response Time |
T90 ≤ 15 seconds (depending on the principle and sampling distance) |
|
Operating Environment |
Temperature: -25℃~+55℃; Humidity ≤90%RH (non-condensing) |
|
Sample Gas Pressure |
0.05 MPa ≤ Inlet pressure ≤ 0.1 MPa (outlet must be at atmospheric pressure) |
|
Sample Gas Flow Rate |
400±10 ml/min |
|
Power Supply |
220VAC±10%, 50Hz±5% (24V power supply requires special mention) |
|
Data Logging |
10000 entries |
|
Output |
4~20mA, passive relay, RS485; can communicate with a computer |
|
Operation Method |
Touch screen |
|
Dimensions |
485mm (W) × 177mm (H) × 365mm (D); Standard 19" 4U |
|
Mounting Hole Dimensions |
445mm (W) × 177mm (H) |
|
Weight |
Approximately 10 kg |
