Product Introduction

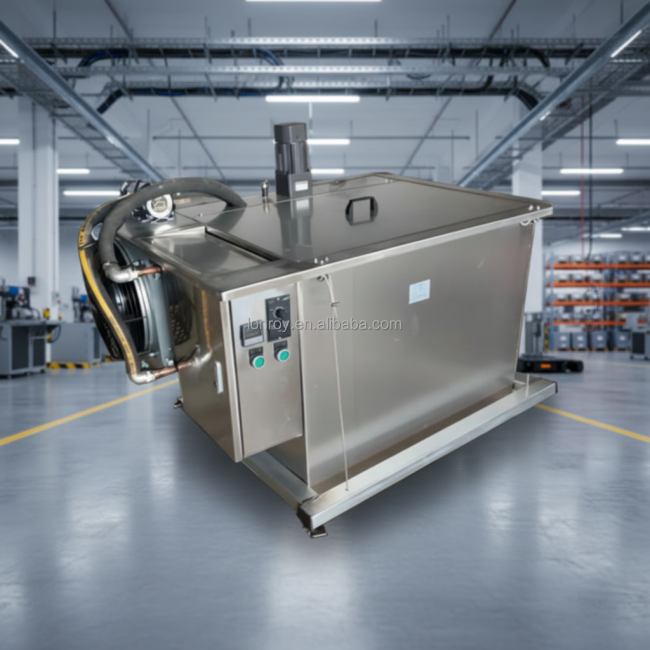

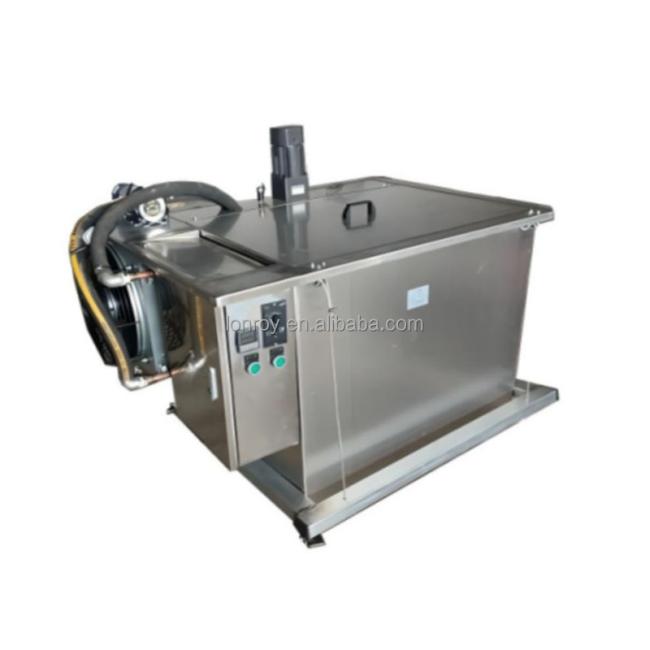

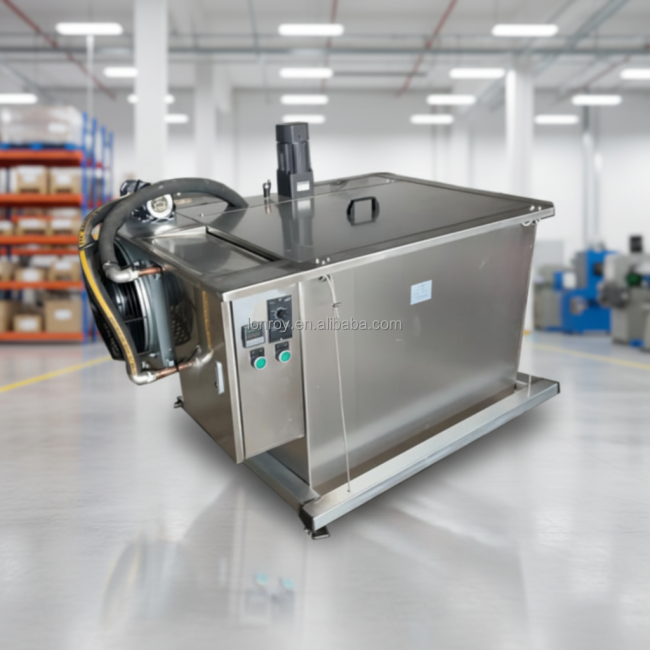

This machine is primarily used for quenching tests of small parts in laboratories. It features quenching liquid temperature display, automatic temperature control, and high-speed stirring. The quenching tank is made of thickened stainless steel plates, ensuring sturdiness and an aesthetically pleasing design. A high-speed stirrer is installed at the top of the quenching tank to quickly dissipate heat from the workpiece surface, accelerating cooling time, and ensuring uniform quenching hardness. The quenching tank is equipped with an oil tank cover for fire extinguishing and reducing oil surface combustion during quenching.
AAir-Cooled Heat Dissipation Quenching Oil and Water Tank High-speed Stirring Laboratories Small Parts Quenching Tester
Technical Specification
|
Internal dimensions of the oil tank |
800*700*700 mm |
|
Working temperature |
10–60 ℃ |
|
Quenching weight |
0–50 KG |
|
Temperature control method |
Digital display automatic heating |
|
Heating tube power |
2 KW |
|
Cooling method |
Air-cooled radiator + natural cooling |
|
Stirring power |
120 W |
|
Stirring speed |
0–450 r/min |
|
Quenching medium |
Special quenching water or oil |
|
Oil tank material |
304 stainless steel |
|
Total equipment power |
Approximately 2.5 KW |
|
Overall dimensions |
Approximately 1000*800*750 mm |
