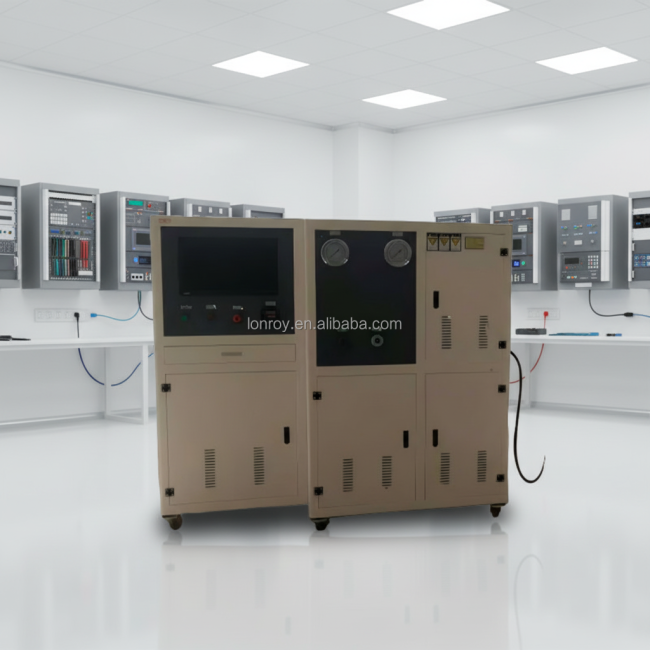

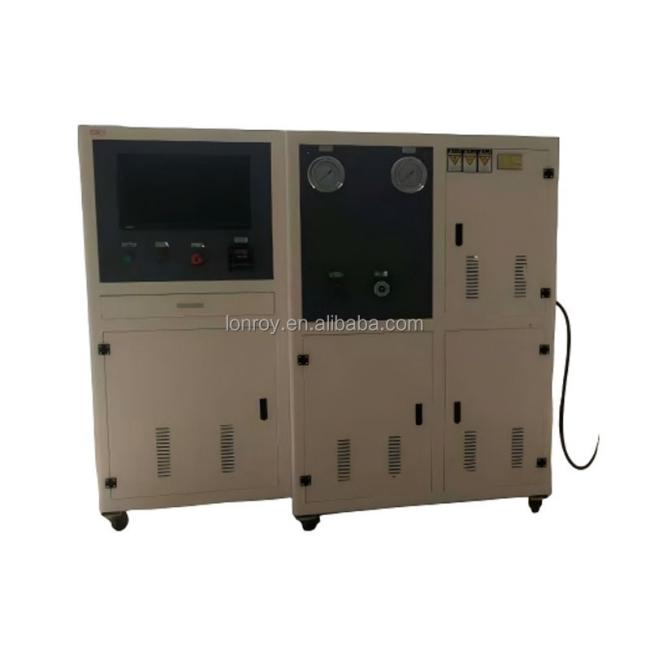

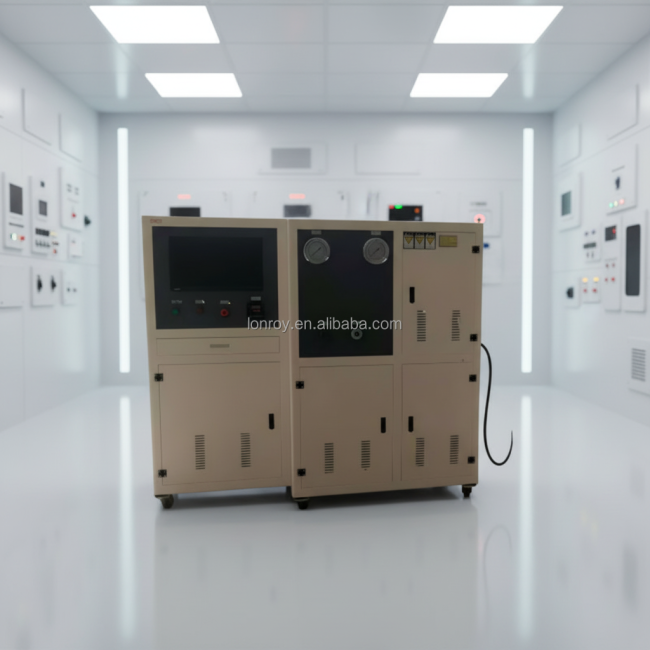

Rubber Hose Air Tightness Leakage Tester Laboratory Stainless Steel Pipes Sealing Performance test Machine Lab Test Mach

Application Scope

The rubber hose air tightness leakage tester can detect the sealing performance of stainless steel pipes and identify air leakage points in steel pipes. If a leak is detected, the bubbling method can be used to observe the leakage situation of the tested part. This testing machine is an ideal equipment for testing straight seam welded pipes and seamless steel pipes.

Equipment Composition

1. Sealing Fixture Connector: Used to seal both ends of the steel pipe for sealing.

2. Control System: Controls the test pressure, pressure holding time, water tank lifting, etc.

3. Water Tank: Includes lifting cylinder, stainless steel water tank, and other devices.

Basic Principle

Based on the different test pressures of the tested parts, the test is performed by measuring the pressure or mass flow between the standard part and the tested part.

Performance Parameters

Test Pressure Range: 0~8MPa (pressure optional)

Pressure Control Accuracy: 2% of the upper limit of the test pressure value, -1% of the lower limit

Pressure Value Resolution: 0.01MPa

Leakage Rate: Can be tested by differential pressure flow method

Testing Machine Working Medium: Air

Operation Mode: Computer control or touch screen

Sample Installation Method: Automatic cylinder clamping

Structural Composition: Sealing test fixture, detector, bubbling detection water tank

Applicable Scope: Stainless steel pipes, straight seam steel pipes, stainless steel welded pipes
