Product Overview

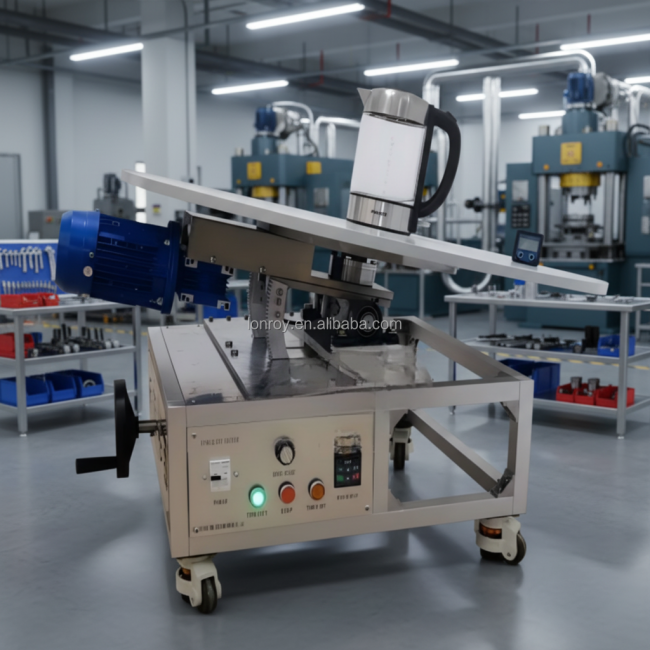

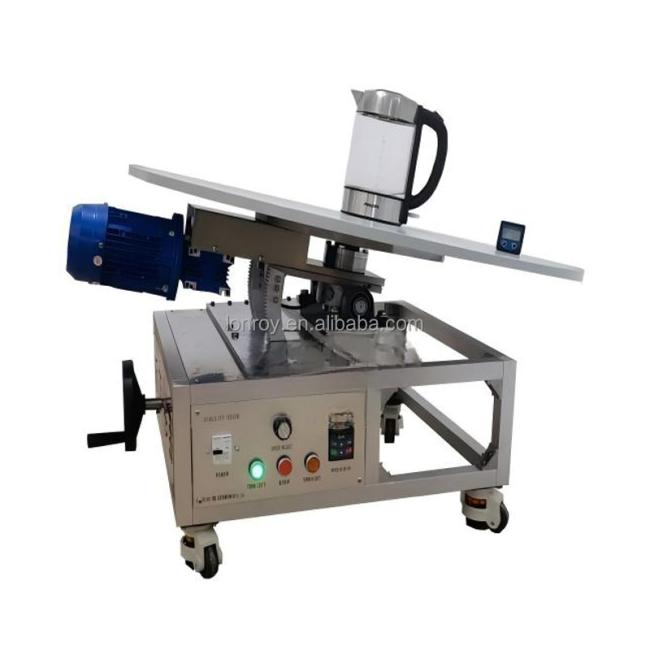

This equipment is designed to determine the stability of electrical appliances intended for use on a tabletop or floor, in accordance with IEC60335-1 Clause 20.1, IEC62368-1, IEC60065 Clause 19.1, IEC60601-1 Clause 24.1, and IEC 60950 Clause 4.1. The equipment includes a surface and a threaded spindle with a handwheel to adjust the tilt of the tabletop. The tilt angle can be adjusted from horizontal upwards to 30°.
Standard Equipment
tabletop, circular, made of A3 steel
base plate with hinges for the support frame and a motor for rotation
internally threaded spindle with a handwheel for adjusting the tilt angle of the tabletop relative to the horizontal plane, adjustable from horizontal up to 30°
tilt angle measuring instrument, mounted on the tabletop, to detect the tilt angle.
PIEC 62368 IEC 60065 Household Appliance Stability Test Bench IEC 60601 IEC 60950 Household Electric Appliance Stability Tester
Technical Specification
|
Dial size |
Φ 1500mm |
|
Rotation mode |
Motor-driven, rotation speed 1 revolution/minute |
|
Tilt angle |
0~30±1°, adjustable manually and displayed via an electronic angle indicator (resolution 0.1°) |
|
Allowable load capacity |
Not exceeding 180~200kg |
