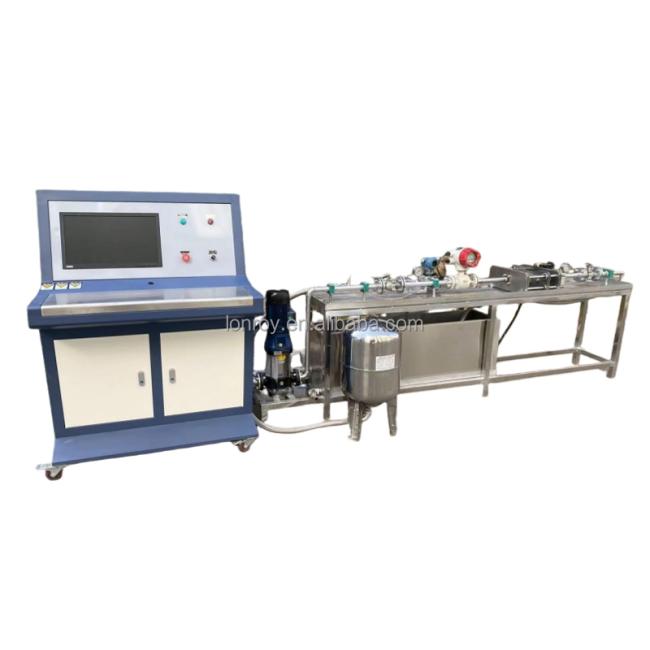

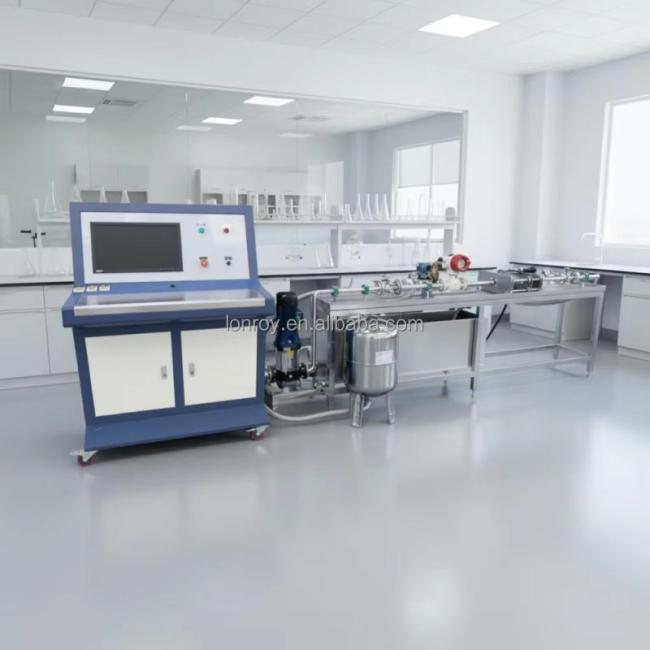

Pump Pressure and Flow Performance Test Bench Pressure and Flow Tester Pump Hydraulic Pressure and Flow Property Test Station
Overview
Pressure and flow test benches are widely utilized in manufacturing facilities, product quality inspection institutes, and research institutions for the production testing and R&D of various fire safety products.
Equipment Features
1. The core pressurization unit employs a variable frequency/servo control system, allowing for easy and precise adjustment and control of the output pressure.
2. Featuring advanced technology and a rational structural design, the unit is characterized by its compact size, light weight, and aesthetically pleasing appearance.
3. All pressure-bearing components consist of standard parts from internationally renowned brands; the assembly features no welded connections, ensuring ease of disassembly, a high safety factor, a long service life, and convenient maintenance.
4. Pressure Test Range: 0–1.0 MPa (The specific pressure range is selected based on the client's actual requirements).
5. Test pressure data can be acquired via computer; the system generates test reports and saves data in Excel spreadsheet format.
6. Flow Rate Range: 1–80 L/min; Differential Pressure Resolution: 0.01 MPa. To accommodate this wide flow range, the system utilizes a multi-channel flow measurement principle.
Pump Pressure and Flow Performance Test Bench Pressure and Flow Tester Pump Hydraulic Pressure and Flow Property Test Station
Technical Specification
|
Product Name |
Pressure and Flow Tester |
|
|
Product Model |
LR-XT10 |
|
|
Basic Principle |
Pressurization is performed by a high-pressure pump, with pressure controlmanaged via a computer. Generates test reports. |
|
|
Parameters
|
Test Pressure |
0–1 MPa |
|
Flow Range |
1–80 L/min |
|
|
Voltage |
380 V |
|
|
Pressure Control Accuracy |
+2% of the upper limit of the test pressure value; -1% of the lower limit |
|
|
Differential PressureResolution |
0.01 MPa |
|
|
Pressure Sensor |
Test pressure sampling frequency: 1 second |
|
|
Test Medium |
Ambient-temperature water |
|
|
Pressure Control Method |
Computer servo control / Throttle valve control |
|
|
Data Acquisition |
Computer software |
|
|
Number of Specimens |
1 control channel for test pressure and test duration |
|
|
Flow Rate |
1–2 flow range stages |
|
|
Operating Conditions |
380 V power supply; Power: 10 kW; 3-phase, 5-wire system |
|
|
Reference Dimensions |
5 m × 1.2 m |
|
|
Structural Components |
Power System, Pressure Control System, Workpiece Mounting Device, Manual Control |
|
|
Scope of Application |
Current Detection | Voltage Detection | Pressure Detection | Flow Measurement |
|
