Product Introduction

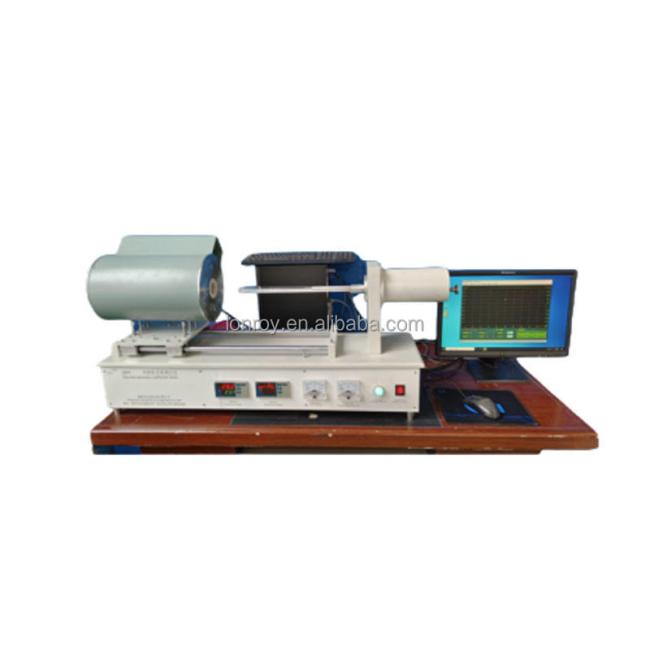

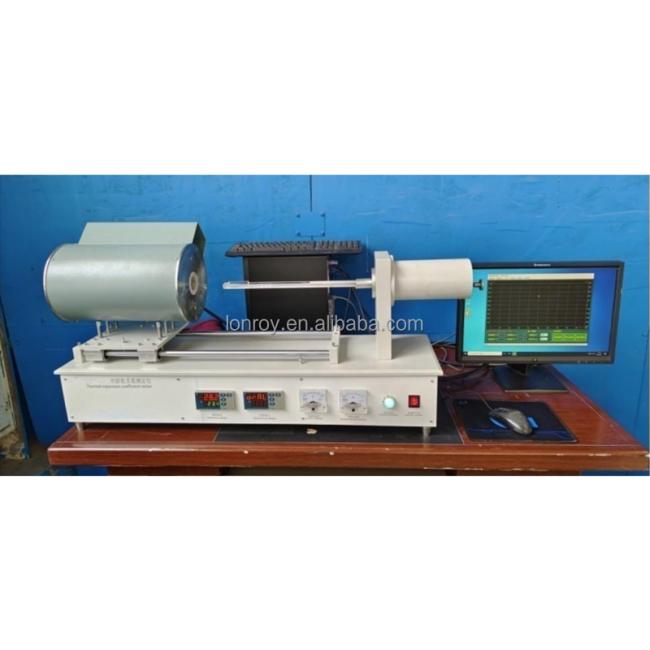

This instrument is used to determine the expansion and contraction properties of metallic materials, ceramics, glass, glazes, rocks, concrete, graphite carbon materials, refractory casting materials, and other non-metallic materials such as silicone and plastics during high-temperature firing. The instrument references the following standards: GB/T3810.8-2016 and ISO 10545.8-1994 Determination of Linear Thermal Expansion of Ceramic Tiles; GB/T16920-2015 Determination of Average Linear Thermal Expansion Coefficient of Glass; ISO 7991-1987 Determination of Average Linear Thermal Expansion Coefficient of Glass; GB/T2572-2005 Test Method for Average Linear Expansion Coefficient of Fiber Reinforced Plastics; GB/T3074.4-2016 Determination of Thermal Expansion Coefficient (CTE) of Graphite Electrodes; and GB/T4339-2008 Determination of Characteristic Parameters of Thermal Expansion of Metallic Materials, etc.
ISO 10545 ISO 7991 Thermal Expansion Coefficient Analyzer Glass High-Temperature Horizontal Heat Expansion Tester Machine
Technical Specification
|
Detection Temperature |
Adjustable from room temperature to 1000℃ |
|
Heating Rate |
Adjustable from 0–20℃/min; microcomputer program temperature control; temperature control accuracy ±1℃ |
|
Deformation Range |
±1.5 mm |
|
Displacement Sensor |
Sensitivity 0.1 µm, automatic range calibration |
|
Calculation Function 1 |
Computer automatically calculates expansion coefficient, volume expansion and linear expansion |
|
Calculation Function 2 |
Automatically calculates and compensates for the compensation coefficient; manual correction is also available |
|
Sample Size |
Φ(2~10)×50 mm, (2~10)×(2~10)×50 mm; square and round samples are both acceptable |
|
Power Supply |
220 V, 2 kW |
|
System Function |
Intelligent dilatometer connected to computer for automatic temperature control, data recording, storage and printing, including temperature-expansion coefficient curves. All test operations via computer interface, easy to operate, complete software suite provided |
|
Test Frame Material |
Quartz |
|
Heating Element |
High-temperature resistance wire |
