Uses

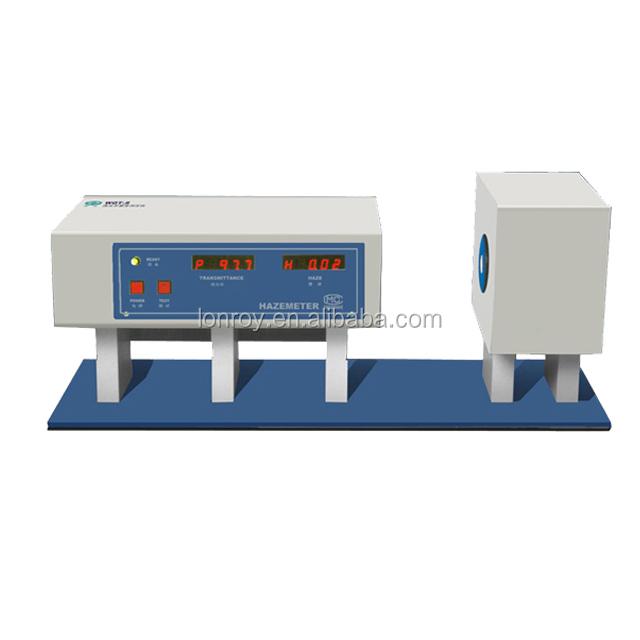

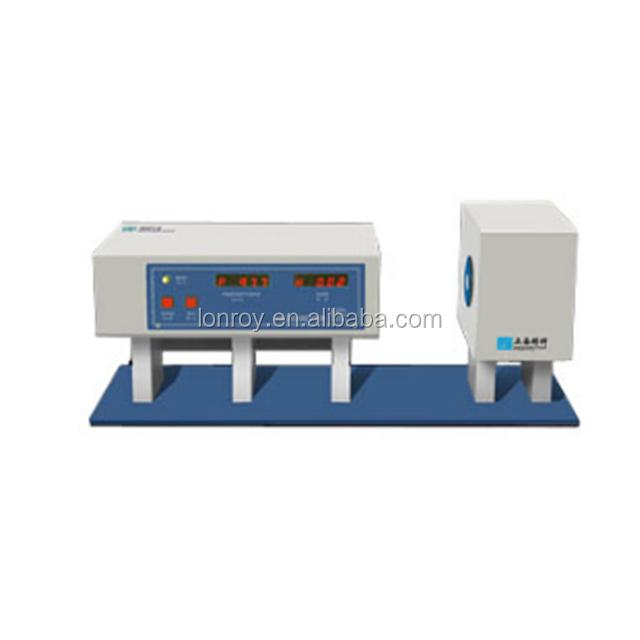

This Tester is applicable in all transparent and semitransparent parallel level material for testing transmittance and haze degree. It is designed according to GB2410-80, ASTMD1003-61 (1977), JISK7105 and so on. The meter is operated automatically by computer convenient to use and display and print the values of transmittance and haze degree. It confirms to ASTM D1003-61 (1997): Standard Test Method for Haze and Luminous Transmittance of Transparent Plastics and JISK7105.
ASTM D1003 JIS K7105 Haze Meter Transmittance Hazemeter Haze Measuring Meter Machine Light Transmit Haze Meter
Specifications
|
Testing range |
Transmittance: 0-100.0% Haze degree: 0-30.00% |
|
Accuracy |
transmittance: 1% haze degree: when H≤0.5%, 0.1%; when H>0.5%, 0.3% |
|
Display average value of transmittance and haze degree automatically |
|
|
Take over by integral ball |
|
|
Clamp-house |
|
|
LED display |
|
|
Minimum reading |
transmittance degree: 0.1%; haze degree: 0.01% |
|
BCD code SLIP output print interface |
|
|
Automatic operation system, transmittance degree and haze degree can be switched automatically; calibrate automatically |
|
|
Warming time |
30 minutes |
|
Sample size |
Solid standard sample: 50mm×50mm Solid full-page proof: width: 380mm, thickness: 130mm Flume size: 50mm×50mm×10mm Film size: 50mm×50MM |
