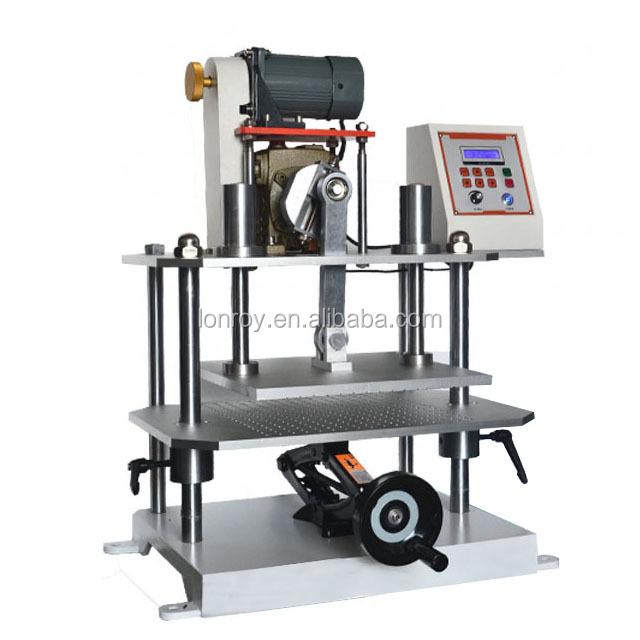

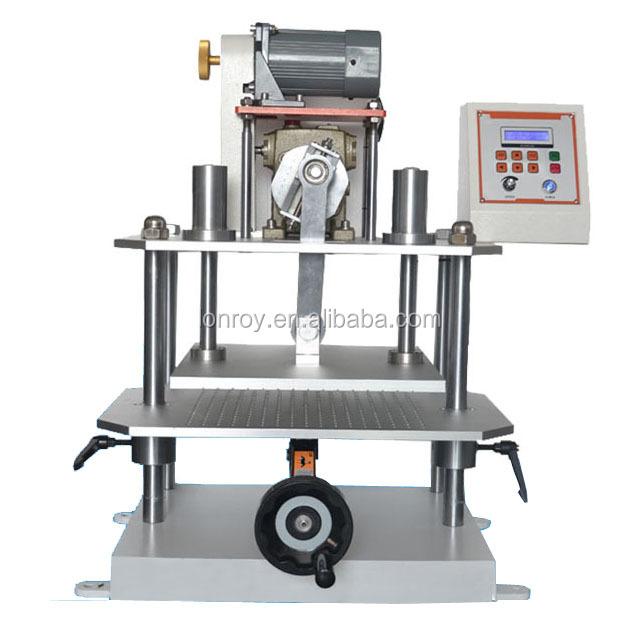

ISO 7214 JIS K6767 Foam Compression Recover Time Tester Sponge Foam Life Fatigue Testing Machine
Foam Compression Recover Time Tester Sponge compression test equipment Sponge Foam life fatigue testing machine
Use :
The machine is used to test the permanent deformation rate of foamed plastics.
According to the standard ISO 7214, JIS K6767, K6382: the thickness of the test piece was accurately measured. As for the compression plate of the testing machine, the specimen was compressed at a height of 50% at a frequency of 60 times per minute, and reciprocated compression reached 80,000 times. After being placed at room temperature for 30 minutes, the thickness was measured and converted into compression deformation rate.
Foam Compression Recover Time Tester Sponge compression test equipment Sponge Foam life fatigue testing machine
Technical parameters:
|
Compression stroke |
Compression stroke |
|
Pressing plate spacing |
about 200mm(adjustable) |
|
Pressing plate area |
30*30cm |
|
Motor |
1/3 HP |
| Counter | LCD, 0~999,999 |
| Test piece | (50X50)mm/(100X100)mm thickness: 20mm |
| Weight | 102kg |
| Power supply | 1, AC220V,5A |
Foam Compression Recover Time Tester Sponge compression test equipment Sponge Foam life fatigue testing machine
