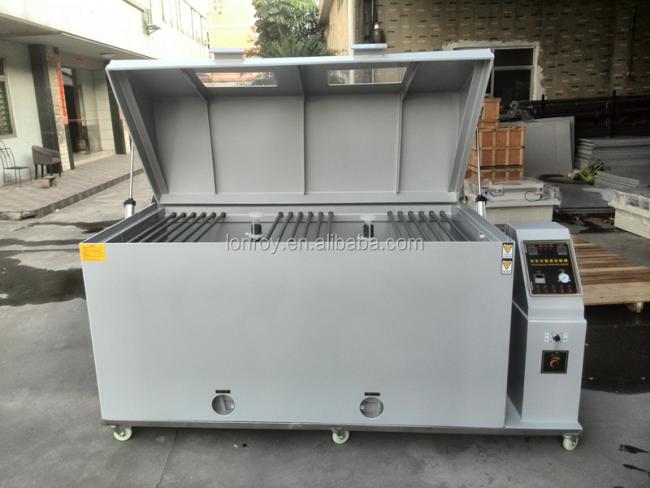

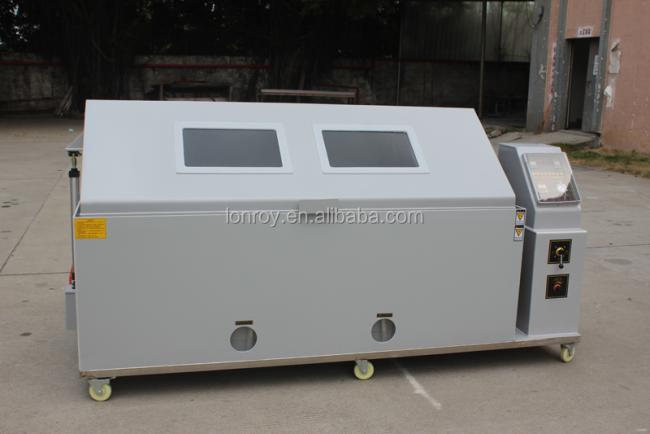

LR-B007 NSS ACSS CASS Big Size Salt Spray Chamber Salt Corrosion Tester
LR-B008 NSS ACSS CASS Big Size Salt Spray Chamber salt corrosion tester
Use:
This machine has a standardized test method to check corrosion resistence of coated samples. Salt spray test is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends on the corrosion resistance of the coating; the more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion. Different coatings have different behaviour in salt spray test and consequently, test duration will differ from one type of coating to another.
Design Standards:ISO 9227,GB/T 2423.17-1993 ,GB/T 2423.18-2000,GB/T 10125-1997,ASTM.B117-97
JIS H8502 ,IEC68-2-11,IEC68-2-52 1996 ,GB.10587-89,CNS.4158,CNS.4159,CASS,GB/T 12967.3-91 CASS
LR-B008 NSS ACSS CASS Big Size Salt Spray Chamber salt corrosion tester
Specification:
|
Model |
LR-B007-60 |
LR-B007-90 |
LR-B007-120 |
LR-B007-200 |
|
Design Standards |
GB/T 10587-2006,GB/T 10125-1997,JIS-D0201,H8502,H8610,K5400,Z2371 |
|||
|
Test chamber capacity (L) |
108L |
270L |
600L |
1440L |
|
Temperature |
Test chamber |
NSS.ACSS 35°C±1°C/CASS 50°C±1°C |
||
|
Air cylinder |
NSS.ACSS 47°C±1°C/CASS 63°C±1°C |
|||
|
Test chamber size LxWxD(cm) |
60*45*40
|
90*60*50
|
120*100*50
|
200*120*60
|
|
Max volum of test liquid (L) |
15 |
25 |
40 |
40 |
|
Volume LxWxD(cm) |
107*60*118 |
141*88*128 |
190*130*140 |
270*150*150 |
|
Power |
AC220V,10A |
AC220V,15A |
AC220V,30A |
AC220V,30A |
|
Spray quantity |
1.0~2.0ml/80cm2/h |
|||
|
PH |
6.5~7.2 3.0~3.2 |
|||
Material:
(A) Test room uses P.V.C (polrvinyl chloride) plate,thickness5 mm,heat-resistant can reach to 80℃.
(B) Sealed cap of test room uses imported organic glass,Thickness is 5mm,heat-resistant can reach to 80℃.
(C) Reagent replenishing bottle uses hidden water level perspective window,easy to clean,hard to broke down.
(D) Saturation air barrel uses platsic and high pressure resistant barrel to make sure heat preservation is good.And match with communicating vessels and cleaning devices.
(E) Shelves of test room uses complanate dividing shelf,can adjust the angle freely,spray at all sides,can put many test specimen.
LR-B008 NSS ACSS CASS Big Size Salt Spray Chamber salt corrosion tester
CNS.JIS.ASTM specification
(A) Salt water spray test:NSS , ACSS
(1)Test Room:35℃±1℃
(2)Saturation air barrel :47℃±1℃
(B) Corrosion resistance test(acidity test): CASS
(1)Test Room:50℃±1℃
(2)Saturation air barrel:63℃±1℃
Cubage of the brine barrel : 15L
Brine Concentration : 5%
