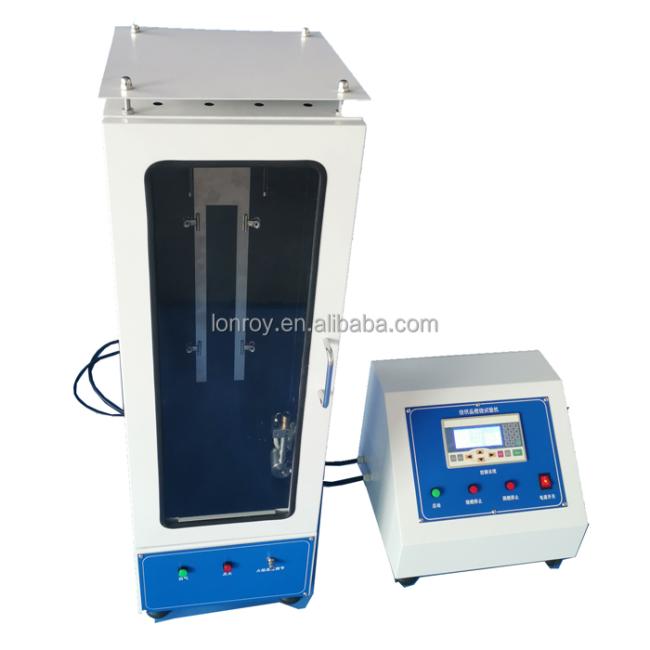

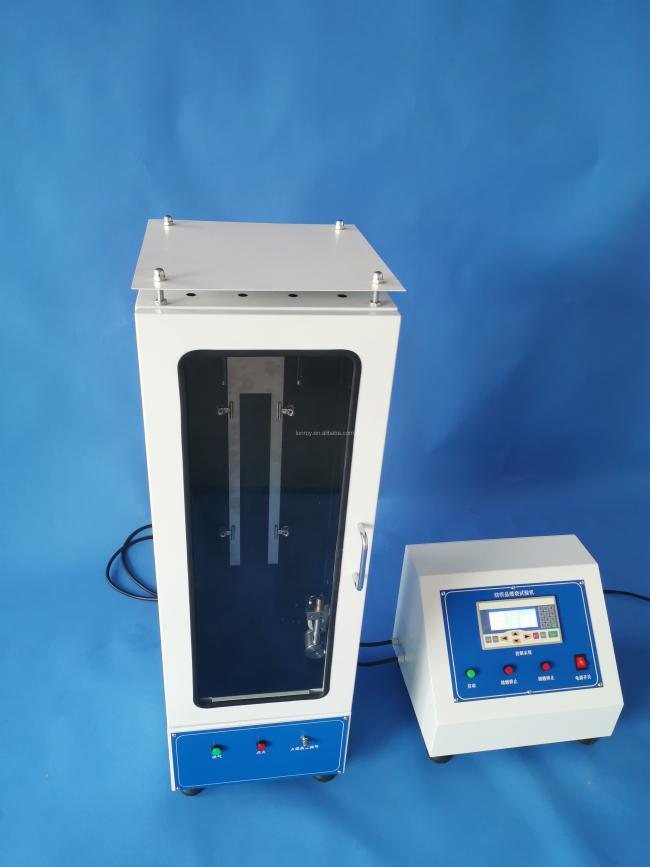

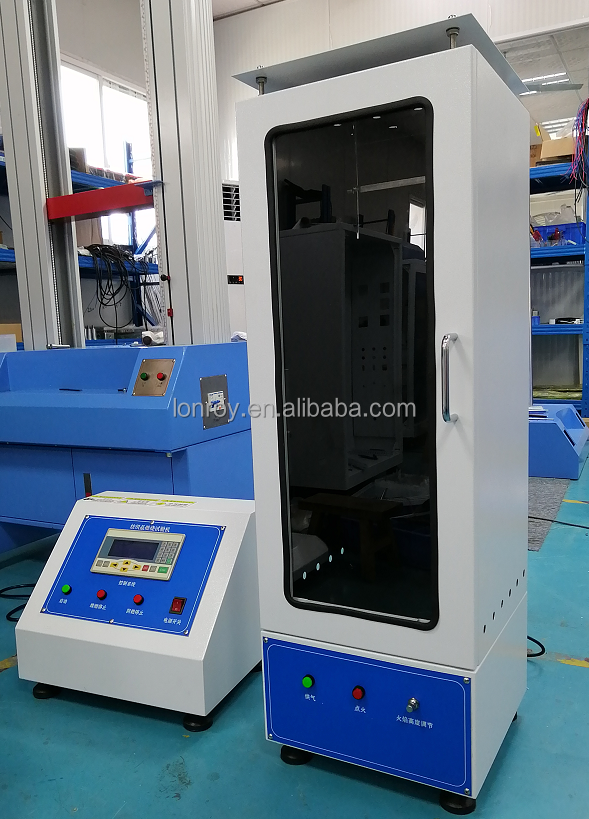

LR-K007 Textile Burning Tester/flammability Tester/ Fabric Flame Retardant Flammability Chamber Flammability Tester
LR-K007 Textile Burning Tester/flammability Tester/ Fabric Flame Retardant Flammability Chamber Flammability Tester
LR-K007 Textile burning tester/flammability tester/ Fabric Flame Retardant Flammability Chamber
The reference standard
GB/T 5455-1997
LR-K007 Textile burning tester/flammability tester/ Fabric Flame Retardant Flammability Chamber
Technical specifications
This test machine is suitable for the determination of flame retardant properties of various flame retardant textiles;According to the GB/T 545-1997 standard, the design is made to determine the tendency of the continuous combustion, flame retardant and carbonization of textiles. The instrument is easy to operate.
LR-K007 Textile burning tester/flammability tester/ Fabric Flame Retardant Flammability Chamber
The basic specifications
|
technical indicators |
GB/t545-1997 |
|
combustion gas |
adopts the industrial propane or butane gas (the product has a purity of more than 98 %). |
|
time |
0 ~ 99 minutes 99 seconds can be set |
|
reignite time |
0 ~ 99 minutes 99 seconds can be set |
|
smouldering time |
0 ~ 99 minutes 99 seconds can be set |
|
combustion burner nozzle diameter |
Ø 11 mm |
|
combustion nozzle head and vertical Angle |
25o |
|
internal dimensions of combustion chamber (long x width x height) |
329 x 329 x 767mm.
|
|
roof vent size |
12.5 mm Ø, quantity: 16 |
|
boxes on both sides of the vent size |
12.5 mm Ø, quantity: box flanked by six |
|
sample clamps |
two thick 2.0mm thick, 422mm long, 89mm wide, u-shaped stainless steel plate, sample size: 356 x 51mm |
|
weight of weight |
54.5 g, 113.4 g, 226.8 g, 340.2 g, 453.6 g. |
|
product features |
the test machine consists of control box, combustion box, burner, PLC, liquid crystal display, electromagnetic valve, high-pressure ignition, gas pipe, pressure regulating valve and signal control line. |
|
power supply |
AC 220V, 50Hz |
